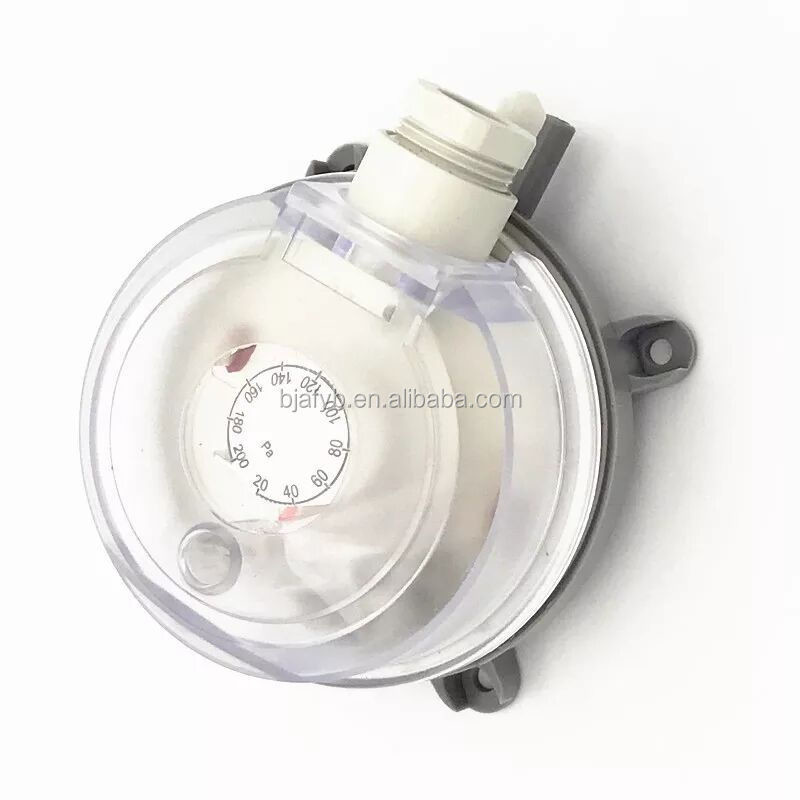

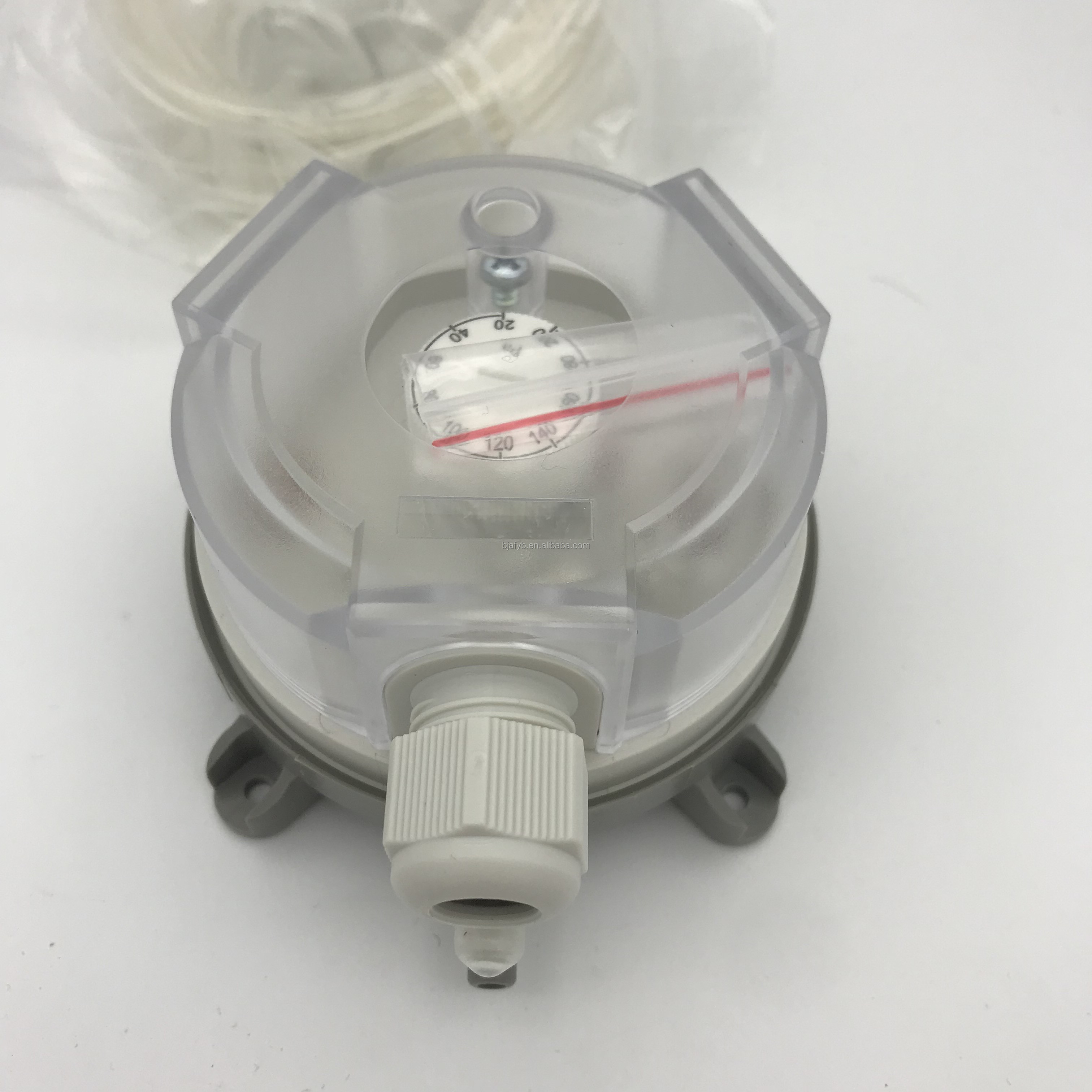

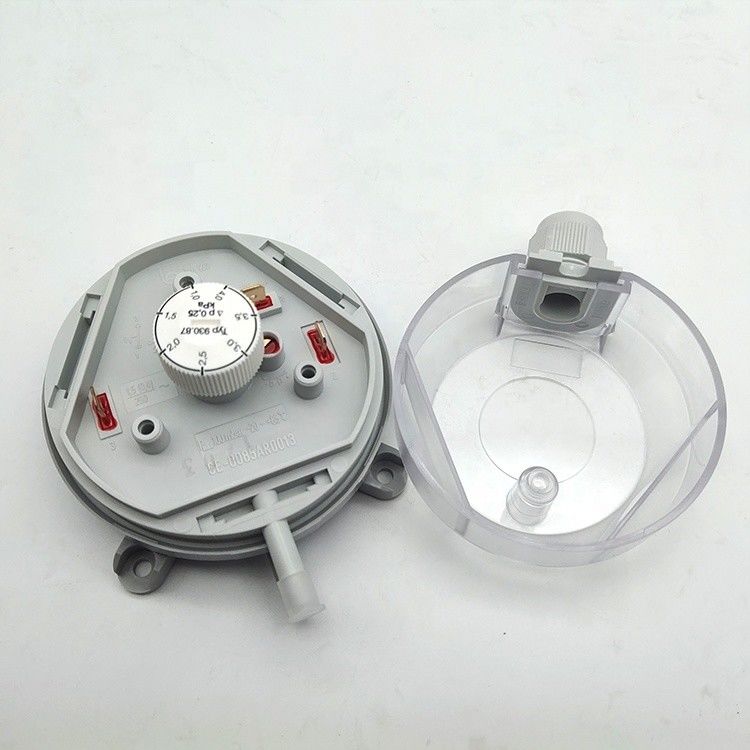

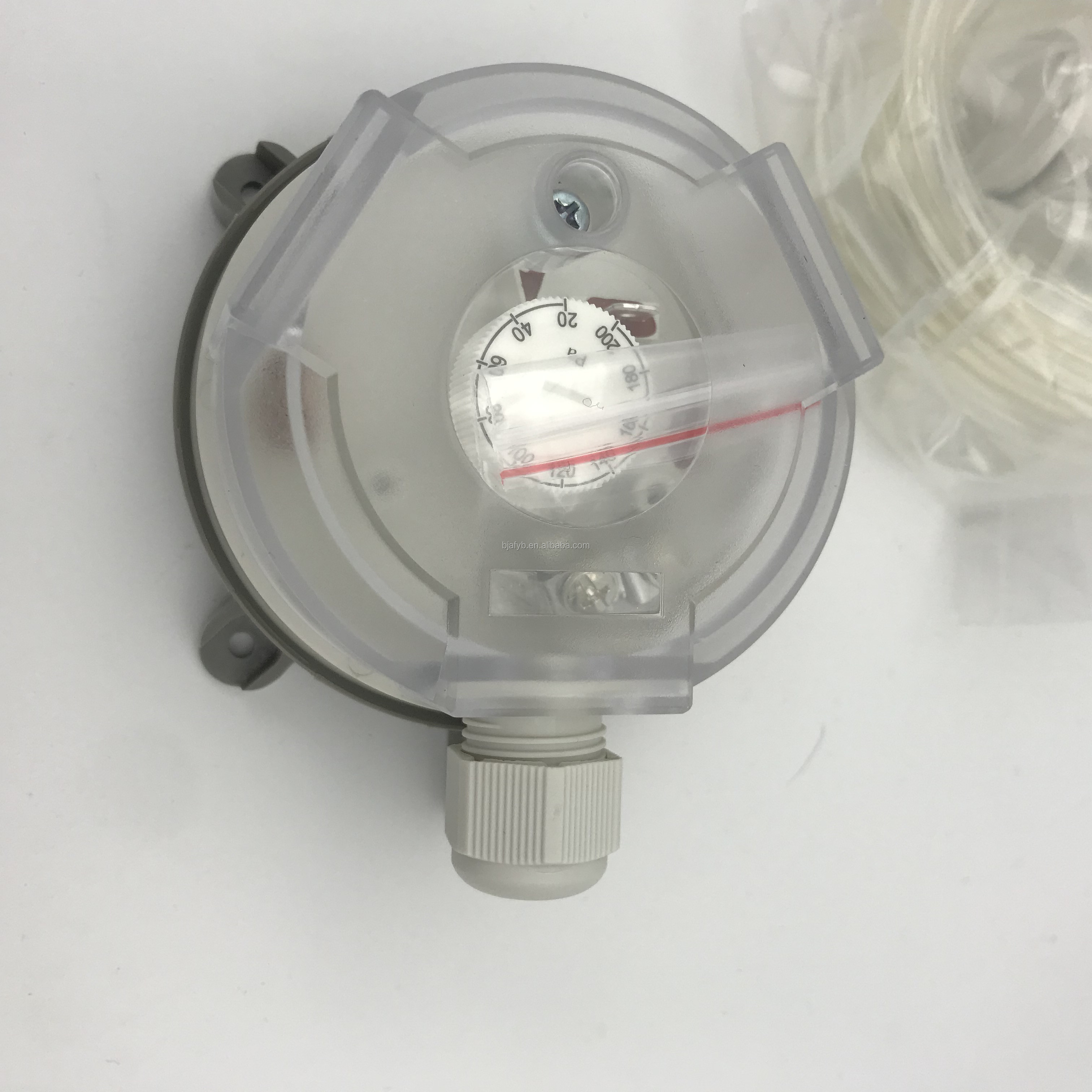

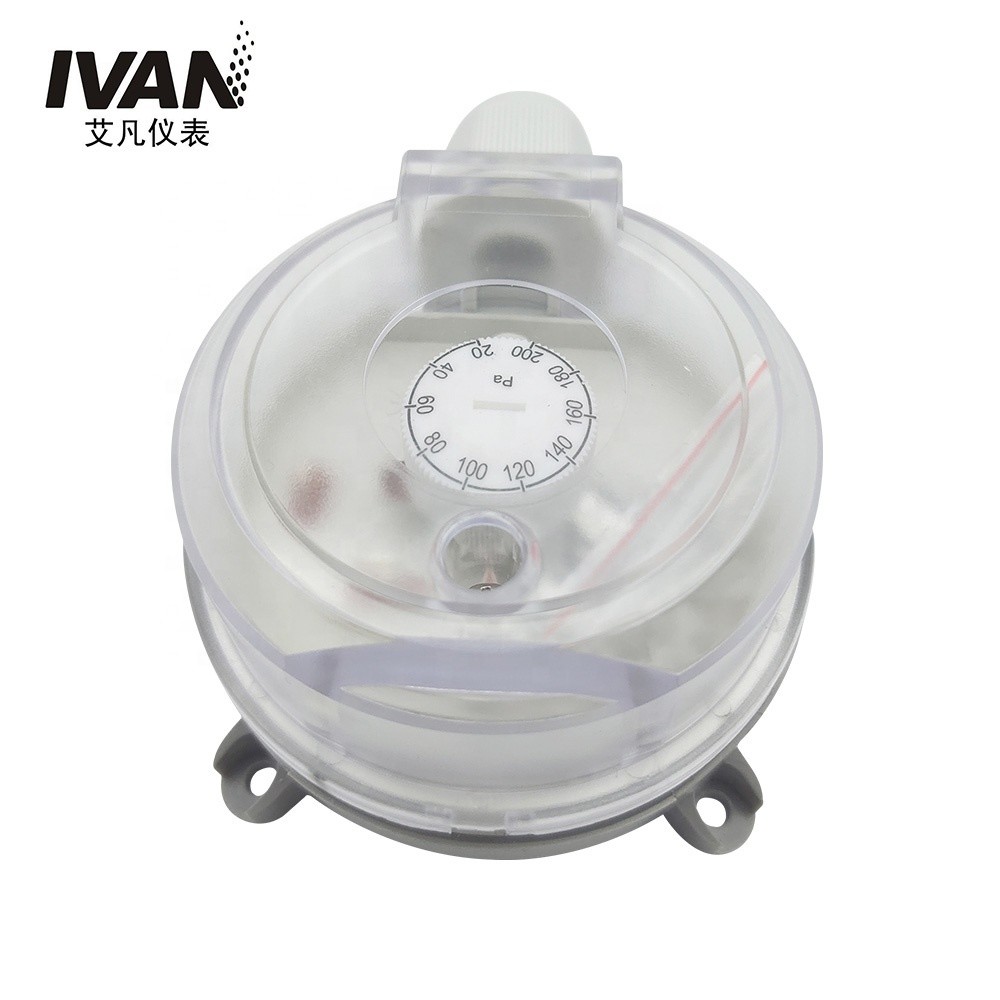

Differential Pressure Switch with Max. Working Pressure 33bar and Smart Function

Basic Information
Place of Origin: Beijing, China
Brand Name: IVANPER
Model Number: AF604
Minimum Order Quantity: 50 units
Price: $18.00 - $20.00/units
Packaging Details: carton
Supply Ability: 5000 Piece/Pieces per Month
Detail Information
Whether The Smart: Yes Max. Current: 5A
Max. Voltage: 220v Max. Working Pressure: 33bar
Product Name: Pressure Control Switch

Product Description



Product parameter
Product parameter
Model
AF930
Medium Air
non-combustible and non-aggressive gasses
Max Pressure
10 kPa
Mounting position
Diaphragm in any vertical plane
Protection degree
IP54 (with cover)
Temperature
40° C to 85° C
Contact
SPDT
Electrical Rating
1.5A (0.4A) / 250V
Terminals
6.3 mm(0.25") copper alloy
Connection
6.0mm Dia
Approval
CE
Model
Pressure Rang
Differential
Toleranc
AF930-02
20 ~ 200 Pa
10 Pa
±15%
AF930-03
30 ~ 300 Pa
10 Pa
±15%
AF930-04
40 ~ 400 Pa
20 Pa
±15%
AF930-05
50 ~ 500 Pa
20 Pa
±15%
AF930-10
200 ~ 1000 Pa
100 Pa
±15%
AF930-25
500 ~ 2500 Pa
150 Pa
±15%

Differential Pressure Switch with Max. Working Pressure 33bar and Smart Function 0Differential Pressure Switch with Max. Working Pressure 33bar and Smart Function 1

Differential Pressure Switch with Max. Working Pressure 33bar and Smart Function 2
