Name: Max. Voltage 250V AC 14 bar Pressure Switch for High Pressure Environments in Industrial
Brand: IVAN
SKU: DPS100A
Price: 75.00 USD
Availability: InStock
Rating: 4.9 (165 reviews)

Detail Information

Warranty:	1 Year	Customized Support:	OEM
Product Name:	Pressure Switch	Max. Current:	3A
Max. Voltage:	250V AC	Max. Working Pressure:	14 Bar
Port:	Tianjin

Product Description

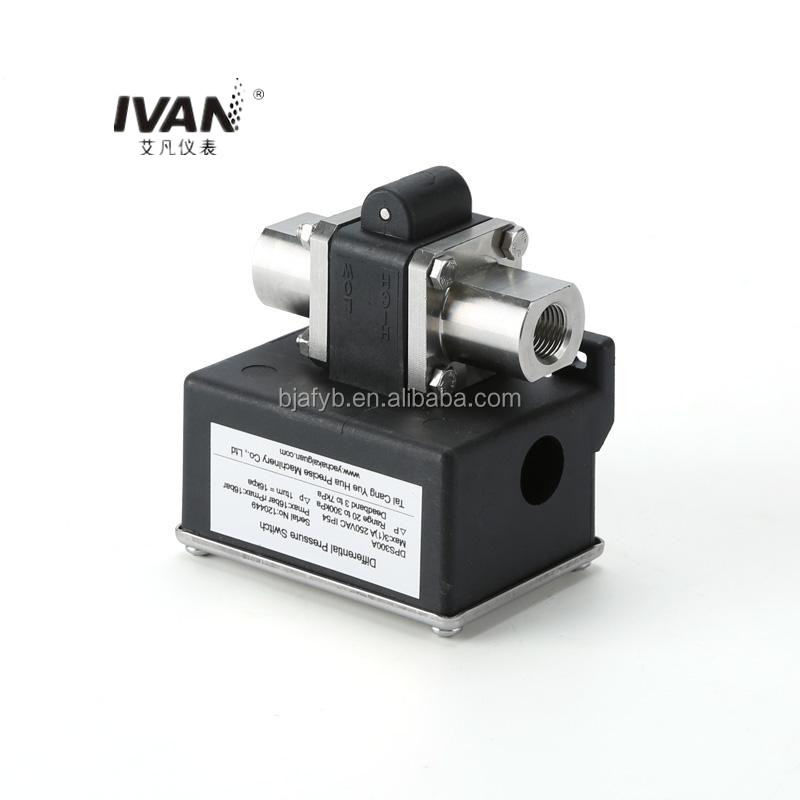

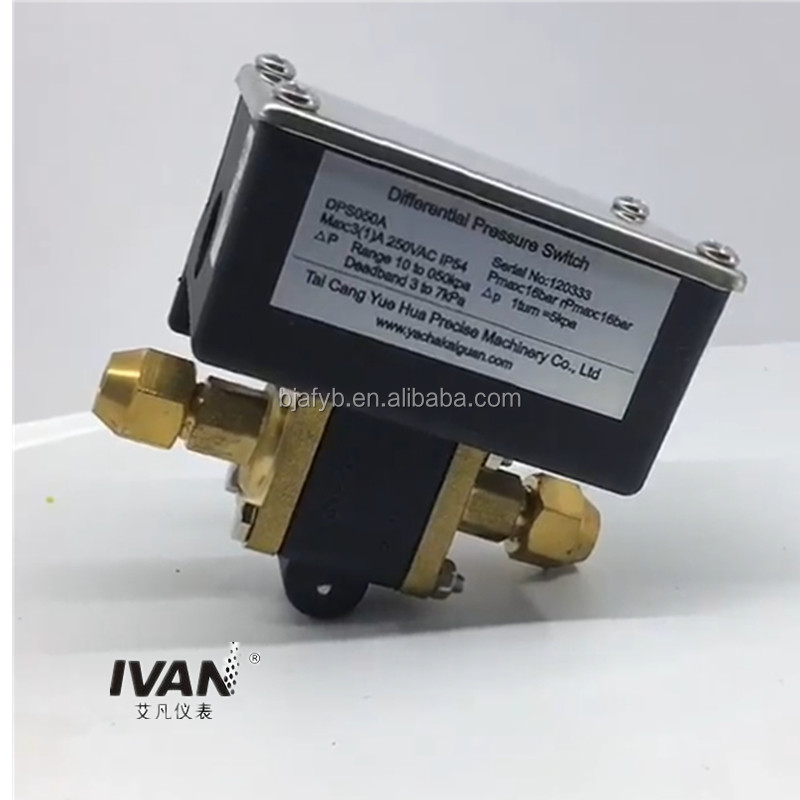

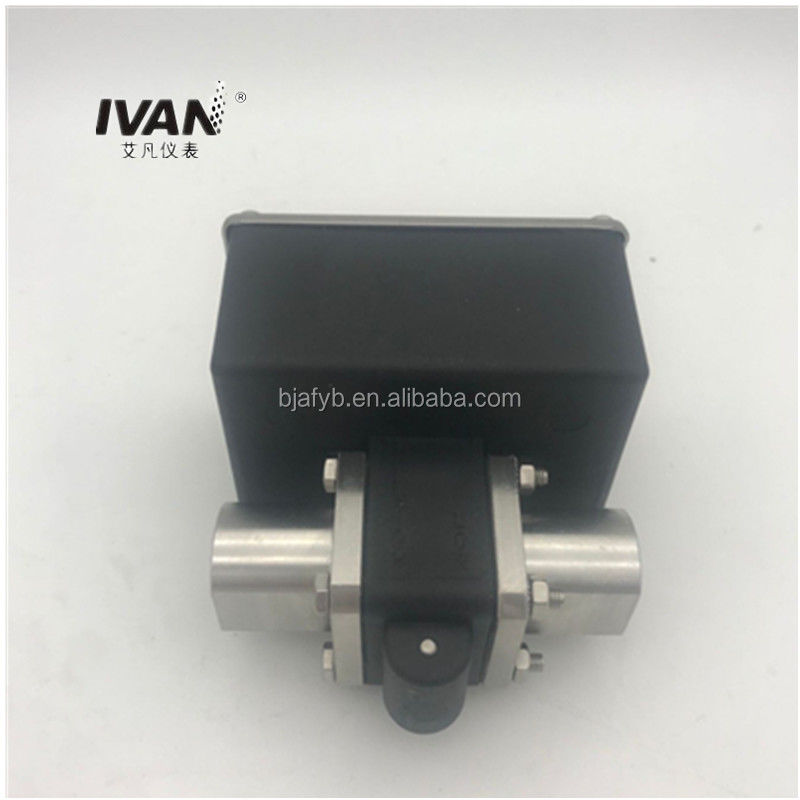

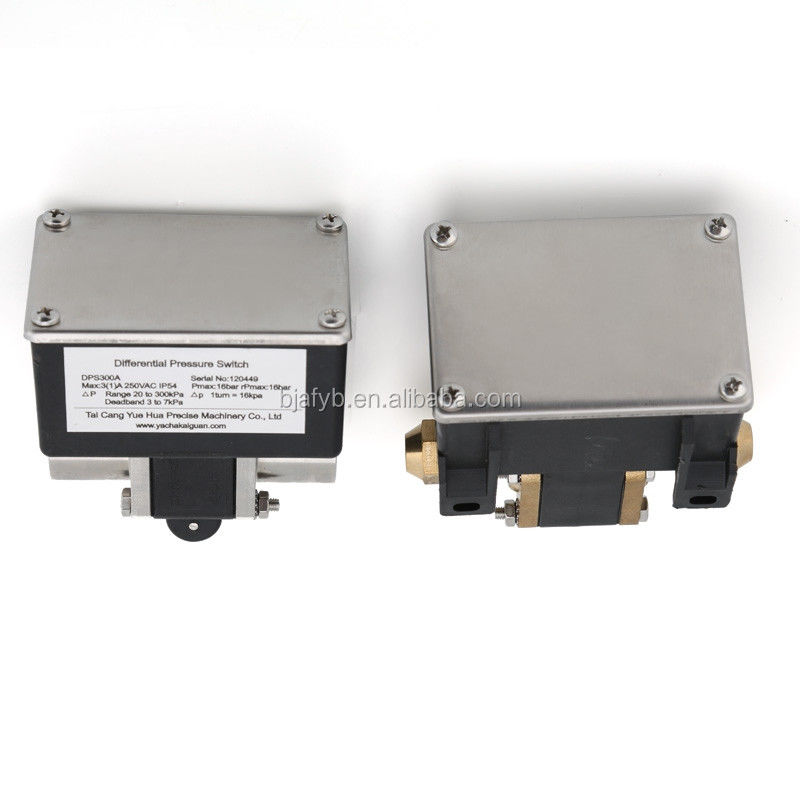

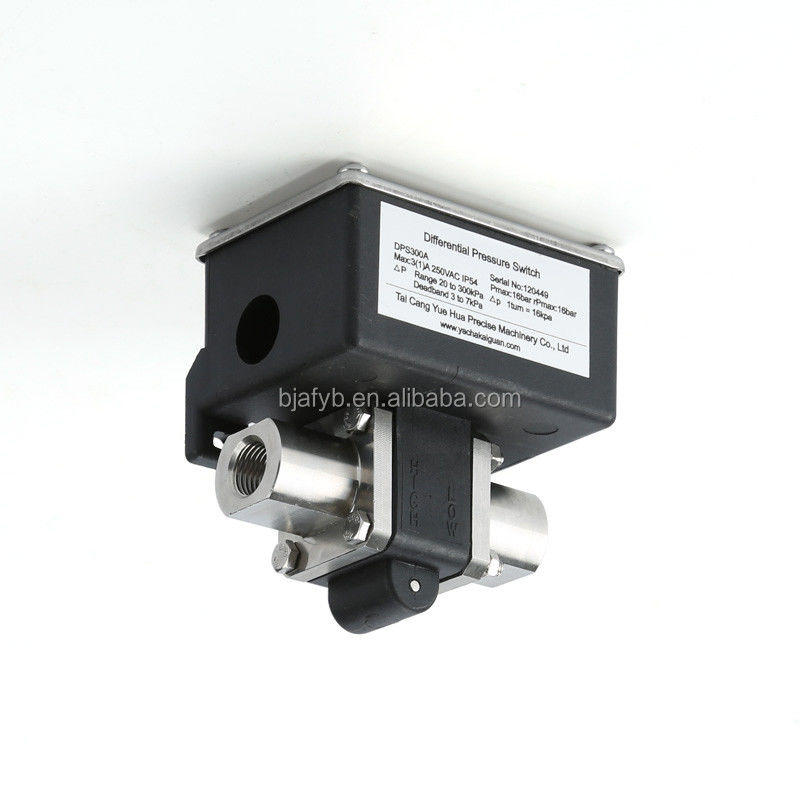

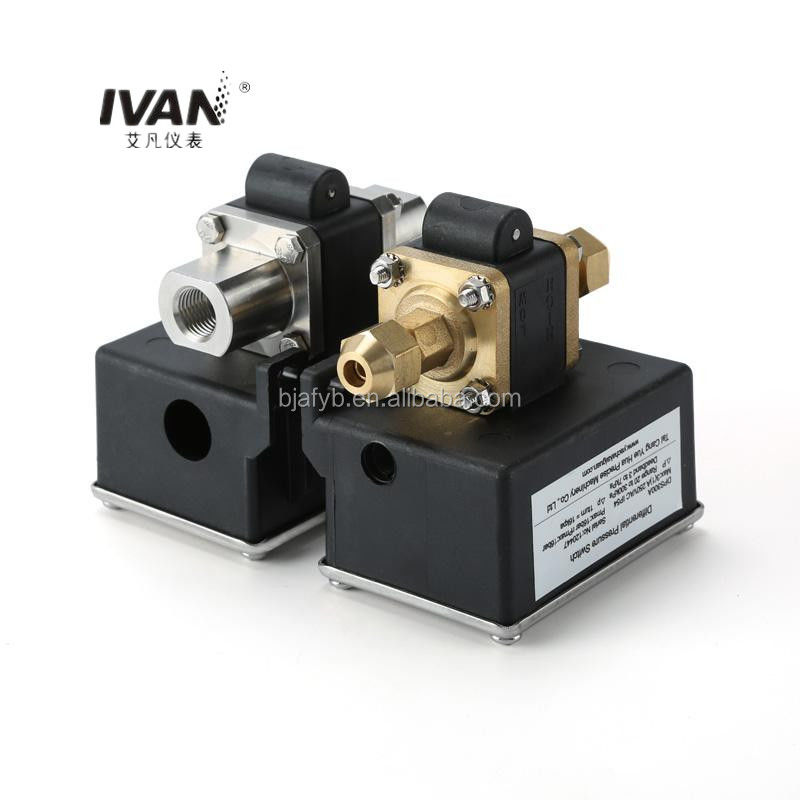

DPS series adjustable differential pressure switch can be used in oil, water and air fluid engineering to detect the pressure
difference of filters, pumps, heat exchangers, chillers and coils. When the pressure difference (flow rate) in the system rises or falls When the set value is reached, an alarm is output or an alarm of the cut-off function is provided to the automatic control system. It can also be used to indicate the status of the pump or filter. The differential pressure switch with adjustable set point can be directly calibrated by the factory according to customer requirements, and the calibration value is printed on the product label, and the user does not need to make adjustments on site. Customers can calibrate through professional instruments according to the pressure difference required by the equipment..

The differential pressure switch with adjustable set point is installed at the inlet and outlet of the heat exchanger of the
central air conditioning chiller. It can be used to detect the water flow of the heat exchanger. It is an accurate flow control
method. It is based on the resistance and flow of the HVAC equipment. The curve design, we know that the heat exchanger, water filter, water pump and valve of HVAC equipment have performance curves of resistance and flow. We detect the difference between the inlet and outlet water pressure at both ends of the device and set it in advance with the device. The fixed value is compared to accurately control the flow. As a flow control switch, it has the characteristics of accurate flow control, no additional resistance to the system, no requirements on the pipe diameter and no disturbance of water flow disturbance. It can replace any form of target flow switch as the flow control of HVAC water system. Compared with the target type flow switch, it can avoid the false flow caused by the pump cavitation (the actual flow rate is large, but the water is mixed with air and the actual flow rate is not large), so it can be widely used in the use of brazed plate heat exchangers, casing Large and medium-sized air-cooled or water-cooled chillers with heat exchangers and shell-and-tube heat exchangers are used for water flow protection of the condenser and evaporator and also have the function of partial antifreeze protection..

Model	DPS100A
Maximum Voltage	250V AC
Maximum Current	3A
Output	Normally open or normally closed (SPDT)
DP Differential Pressure Set Value/Return Difference	10~100KPa
DP Hysteresis	3~7KPa
Maximum Allowable Static Pressure	14 bar
Maximum Allowable Pressure Difference	14 bar
Working Medium	Oil/water/air (other media please specify when ordering)
Operating Temperature	-20℃~93℃
Set Point Repeatability Deviation	±1%
IP Grade	IP54
Connector	1/4 SAE (7/16"~20UNF)

Recommend Products

Packing & Delivery

Company Profile

Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.

Exhibition

Certifications

FAQ

Q1. Why choose us?
A: Founded in 2011, we are a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
If you have any questions, please feel free to contact us!

Place of Origin:	Beijing, China
Brand Name:	IVAN
Model Number:	DPS100A

Minimum Order Quantity:	10 units
Price:	$75.00/units 10-99 units
Packaging Details:	Carton box
Supply Ability:	500 Unit/Units per Week
