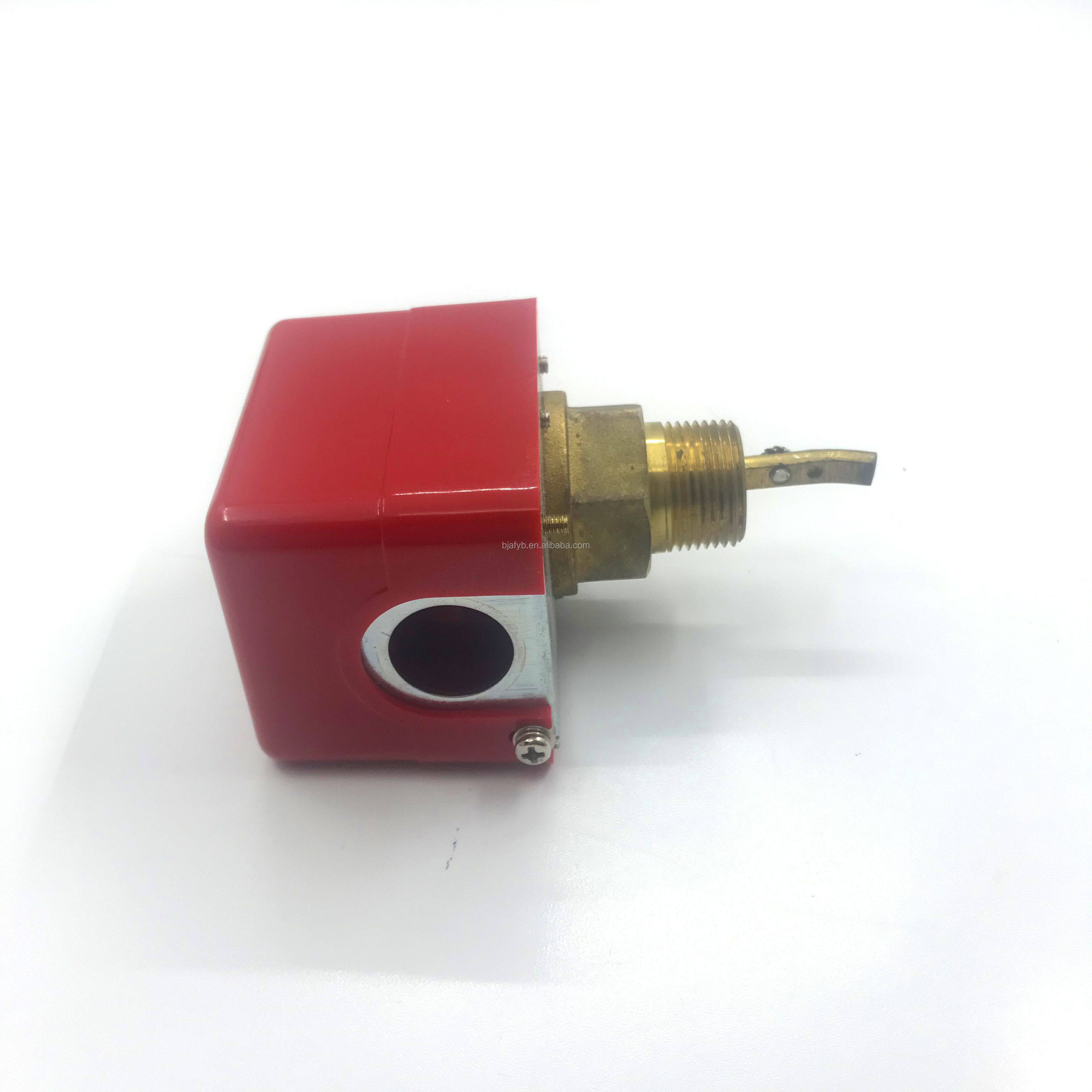

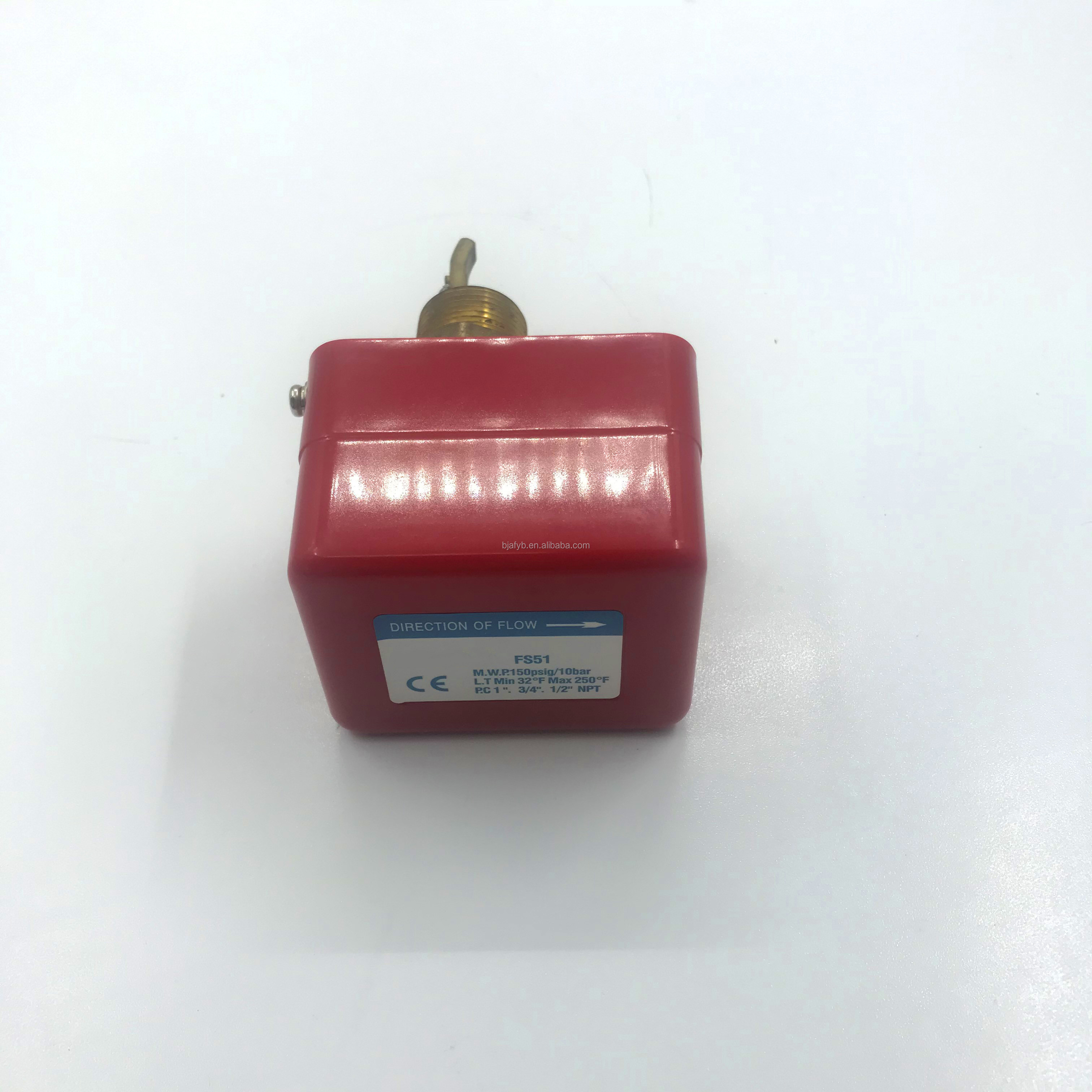

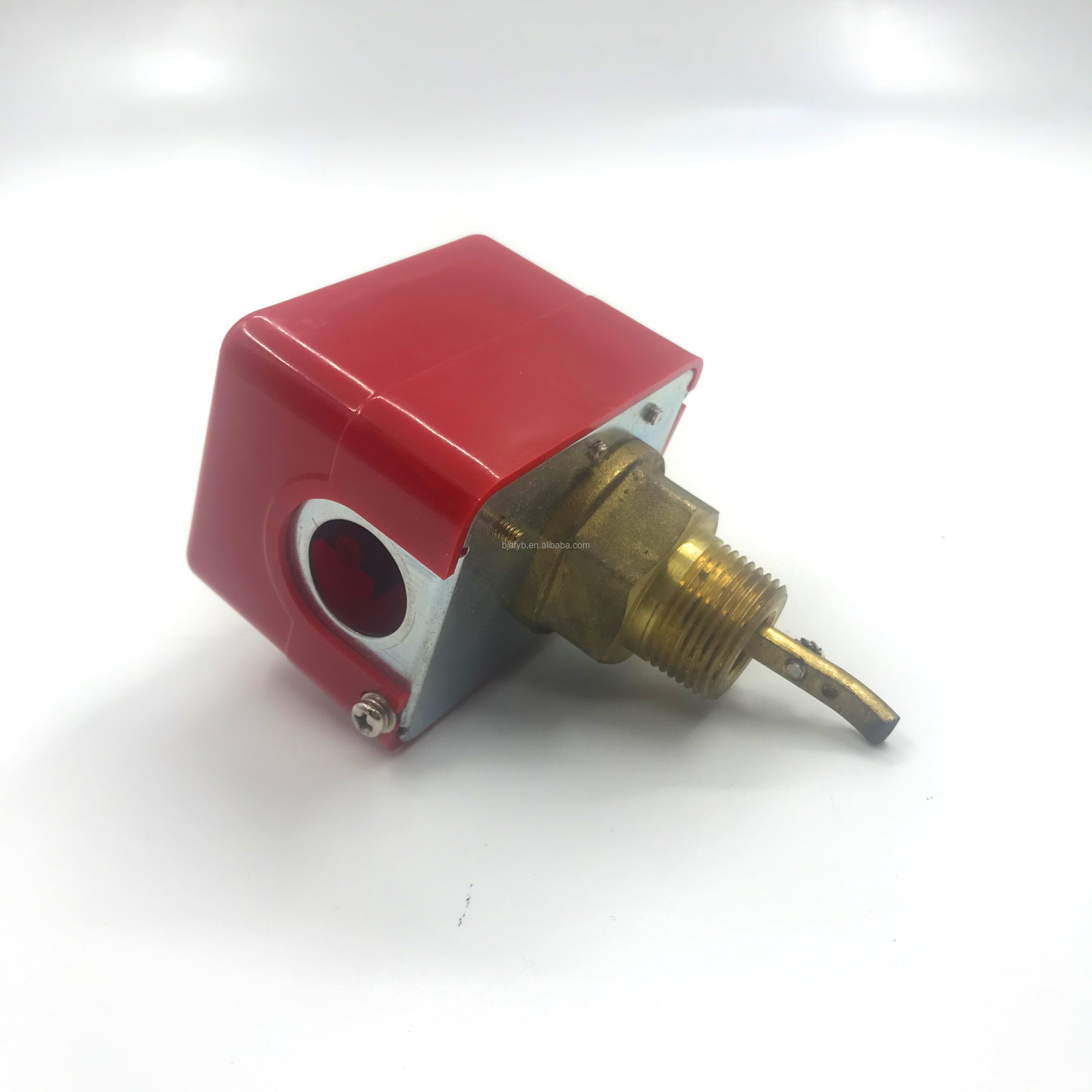

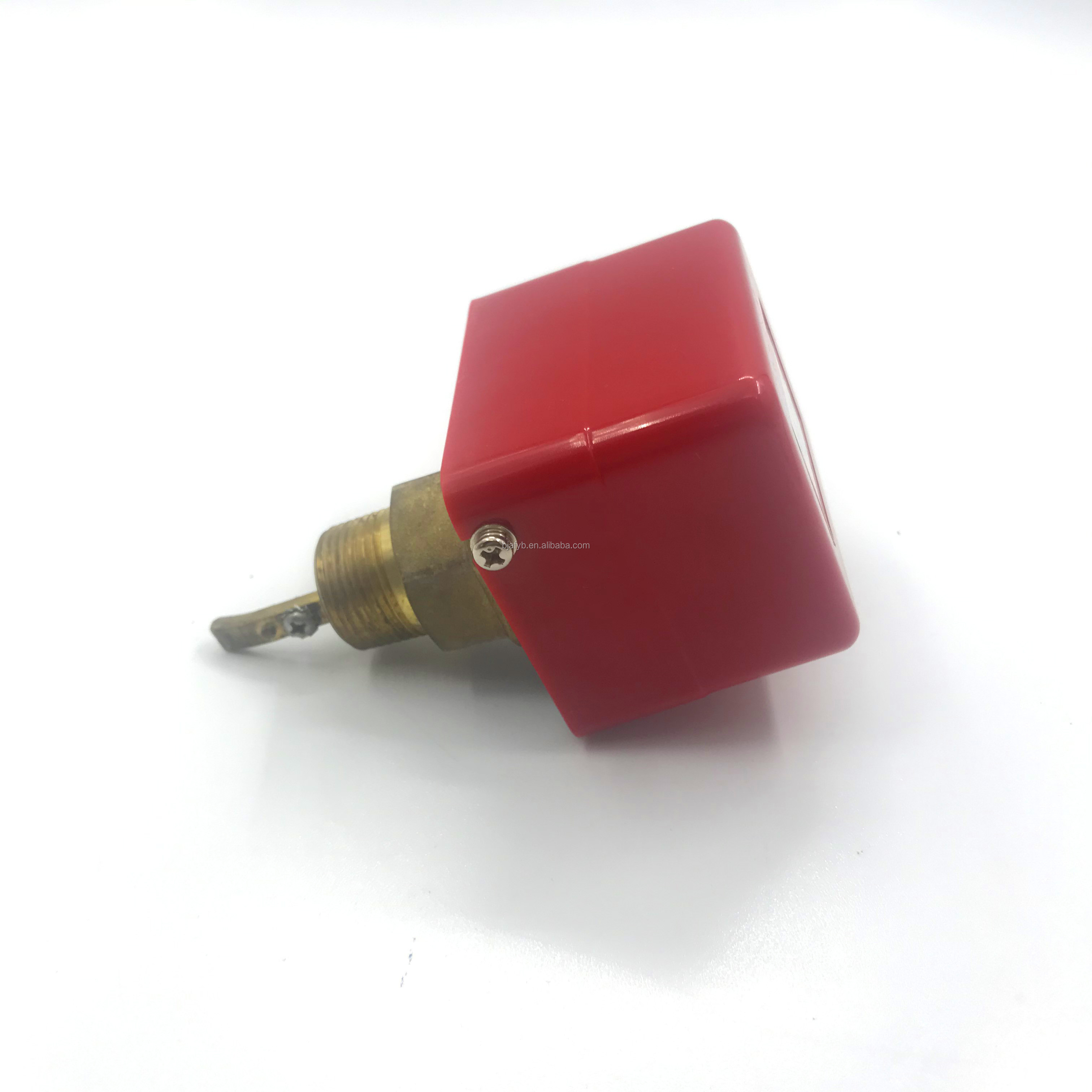

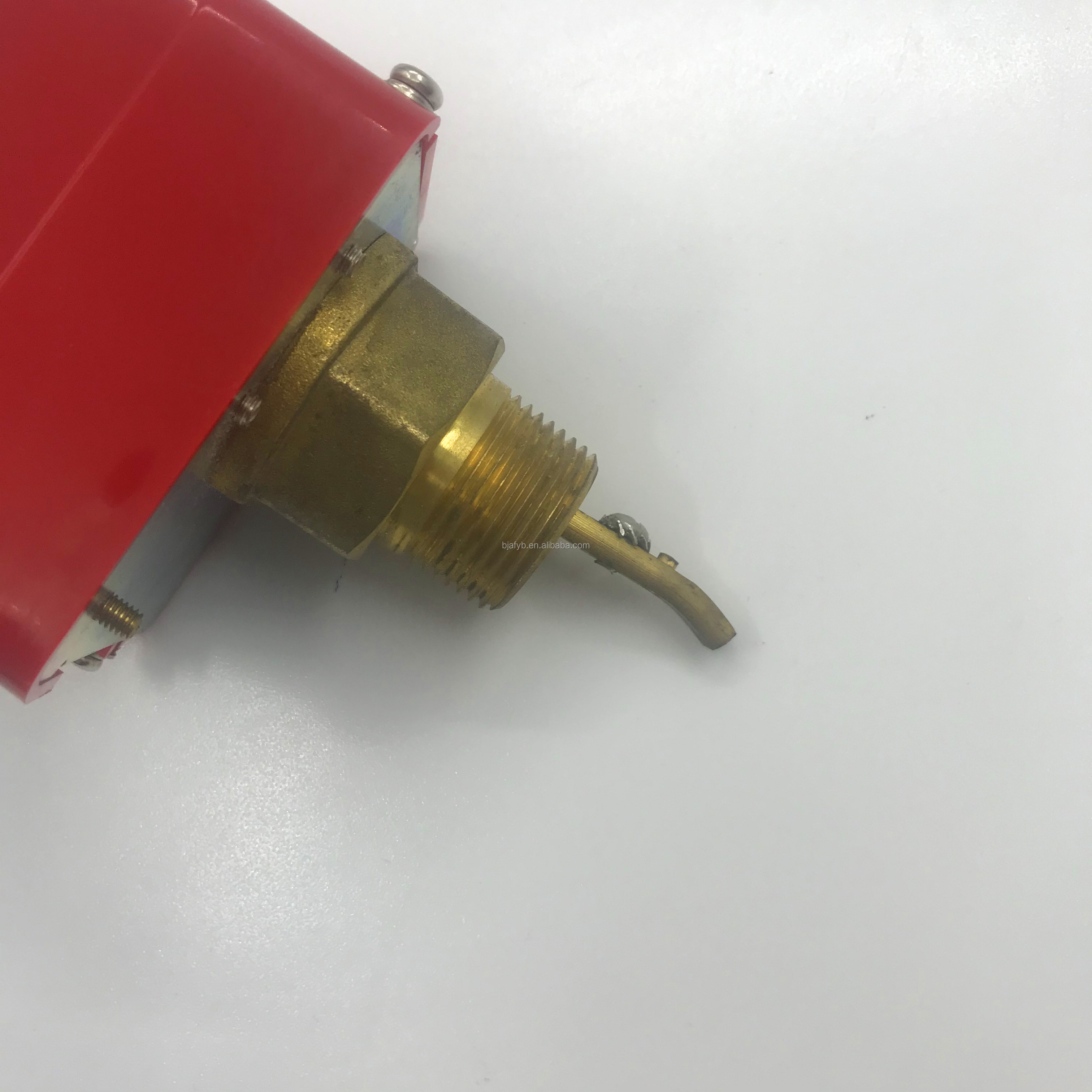

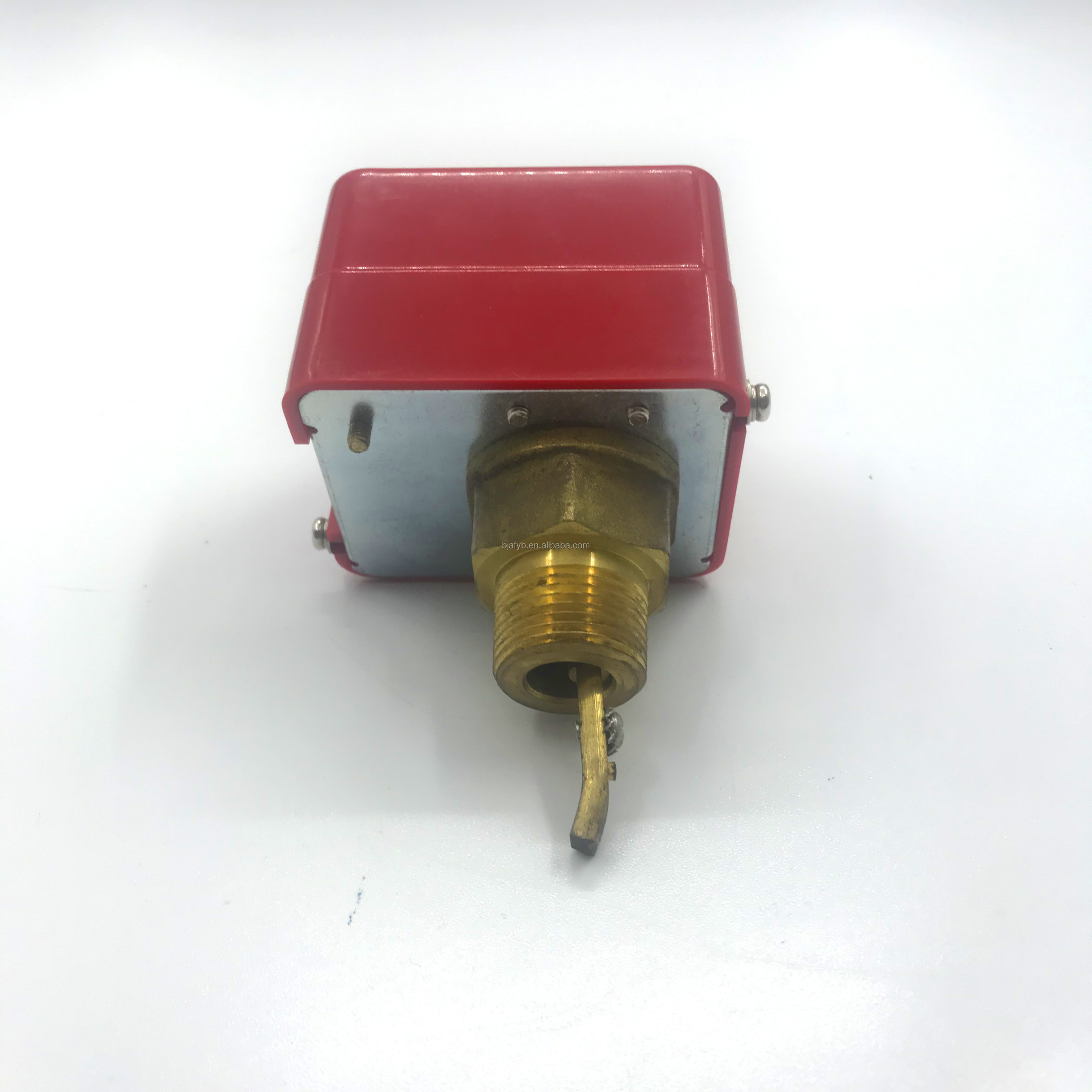

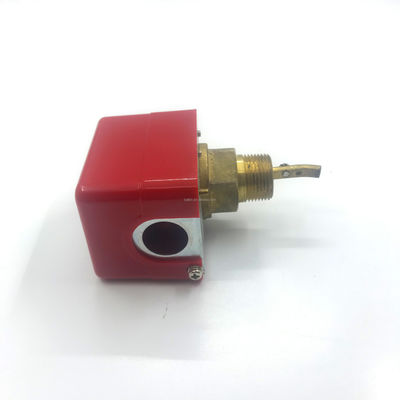

Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C

Basic Information
Place of Origin: Beijing, China
Brand Name: IVAN
Model Number: FS15
Minimum Order Quantity: 100 units
Price: $14.00 - $18.00/units
Packaging Details: Carton
Supply Ability: 500 Unit/Units per Week
Detail Information
Warranty: 12 Month Type: Industrial
Customized Support: OEM, ODM Product Name: Flow Switch
Medium: Liquid Operating Temperature: -40℃~90℃
Material: Brass Application: Monitor Liquid Flow

Product Description

Product Description
Paddle flow switch is a kind of speed type flow switch. It is by the water flow velocity impact block slice, the greater the flow velocity of water , the greater the force on the block slice. The force makes the block slice move, Triggering control signal . The baffle of water flow switch can be designed according to the size of the water flow ,and this can reduce the water resistance produced by the water flow through the water switch, and that can reduce the pressure loss of water system.

Product Function
1, To sense the flow change in the liquid lines as so to protect equipment against damage
which could be cased by flow stopping in the pipeline. Liquid flow either exceeds or drops
below the set flow rate
2, Allowed Liquids Temperature:0°C~120°C.
3, Set Flow Rate can be adjusted according to different flow requirment.
4, Micro switch ensures the quick action and guarantee the transient of the switch.

Flowmeter      Unit: L/Min
Pipe Size
Connect
Cut Off
Remarks
DN15
3.3
3
The water inlet length of the baffle is two thirds of the pipe diameter.
DN20
4.6
4.2
DN25
7.3
7
DN32
15
14.2
DN40
25.3
24
DN50
36
34.4
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C 0
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C 1
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C 2
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C 3
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C 4
