| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | IVAN |
| Model Number: | AF930 |
| Minimum Order Quantity: | 8 pieces |
| Price: | $18.00/pieces 8-99 pieces |

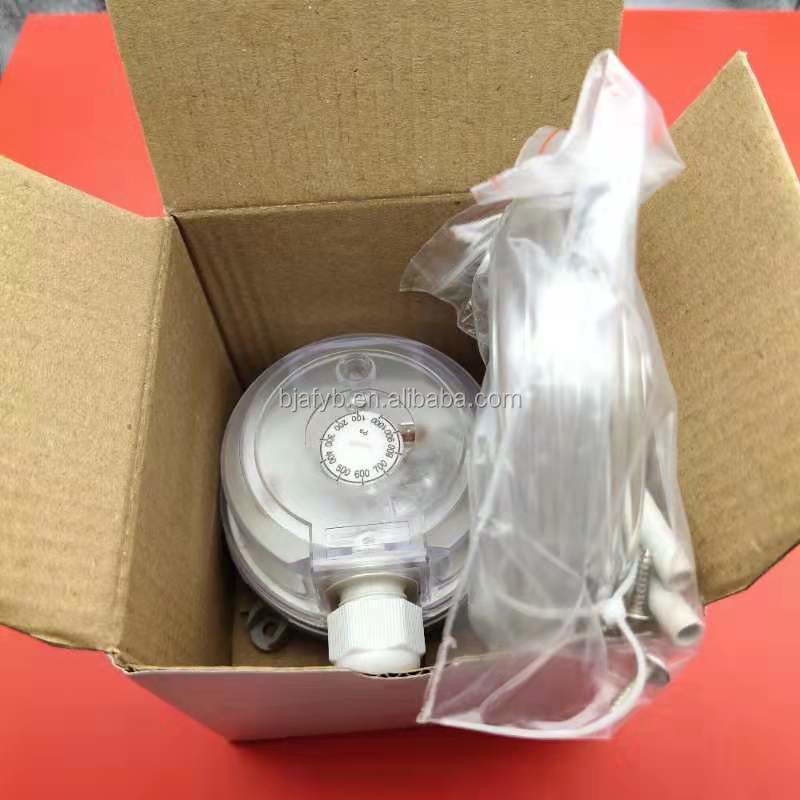

| Packaging Details: | Carton |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Whether The Smart: | NO | Max. Current: | 10A |
|---|---|---|---|
| Max. Voltage: | 220V | Max. Working Pressure: | 33Bar |
| Product Name: | Pressure Control Switch |
Applications & Features
Monitoring overpressure, vacuum and differential pressure of the air and other non-combustible, non-aggressive gases
Specifications
Adjustable range: 4 ranges, see models
Pressure limit: 7500Pa (-30~75°C)
Working temperature: -30~75°C
Storage temperature: -30~75°C
Pressure connection: φ6.0mm plastic tube, P1 high and P2 low pressure
Service life: over 106 switching cycles
Electrical Contact: SPDT, 1.5A/ 250VAC, 0.1A/30VDC
Max. switching frequency: 6 switching cycles/min
Electrical connection: Flag terminals or screw terminals
Repeatability: ±2%
Materials: housing PC, cover PC, diaphragm silicone and silver / silver alloy contact
Weight: 130g with bracket, 80g without bracket
Protection: IP54
Installation: vertical, pressure ports P1 and P2 downward. This is the factory-calibrated position. If horizontally installation needed, the switching value should plus about 20pa (cover upward) and minus about 10pa (cover downward). See operation manual.
Approval: CE
| Model | Pressure range |
| AF930-200 | 20-200(Pa) |

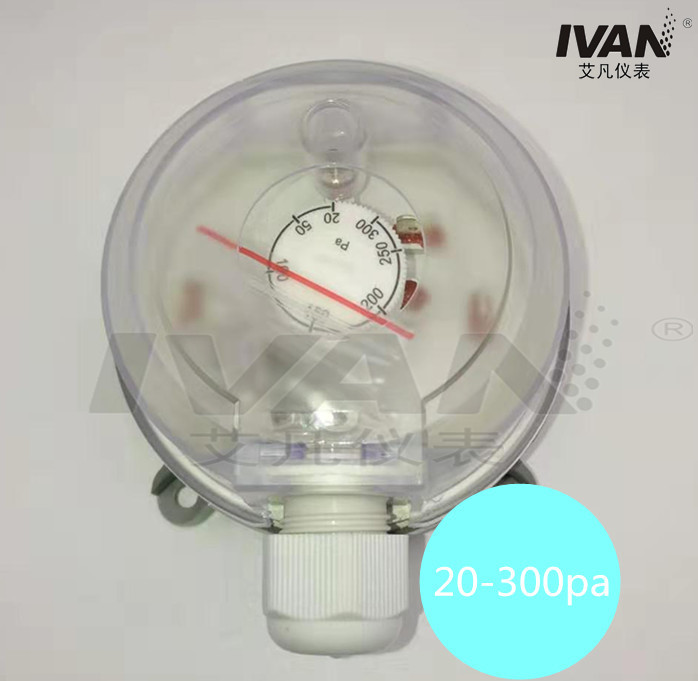

| AF930-300 | 30-300(Pa) |
| AF930-400 | 40-400(Pa) |
| AF930-500 | 50-500(Pa) |
| AF930-1000 | 200-1000(Pa) |
| AF930-2500 | 500-2500(Pa) |
