| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | IVAN |
| Certification: | - |
| Model Number: | AF930 |
| Minimum Order Quantity: | 5 pieces |
| Price: | $15.00/pieces 5-99 pieces |
| Packaging Details: | Carton |
| Supply Ability: | 2000 Piece/Pieces per Month |
| Whether The Smart: | Yes | Max. Current: | 5A |
|---|---|---|---|
| Max. Voltage: | 250V | Max. Working Pressure: | 33BAR |
| -: | - | Port: | Tianjin |

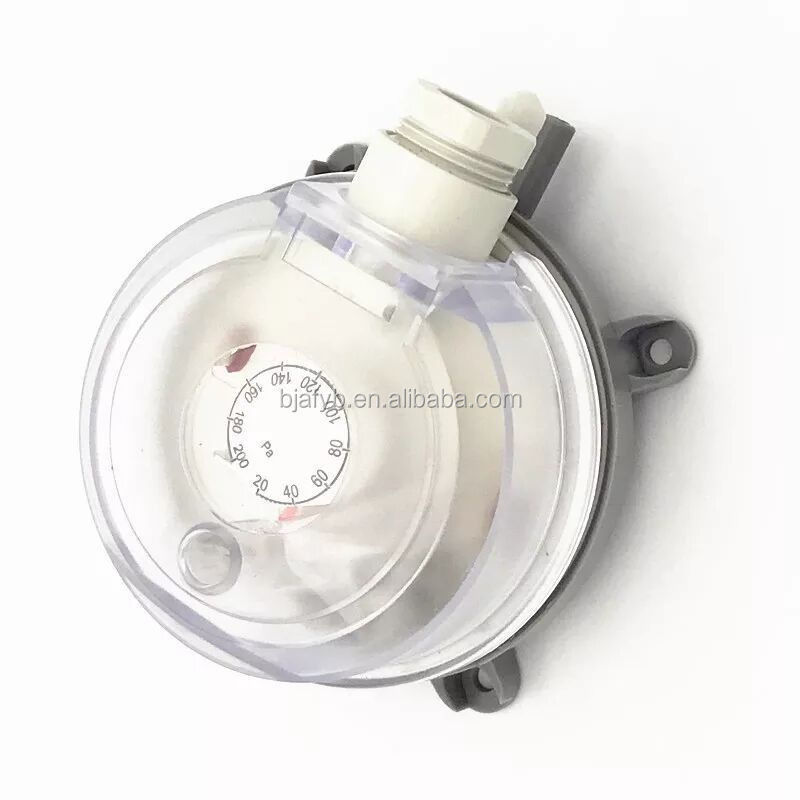

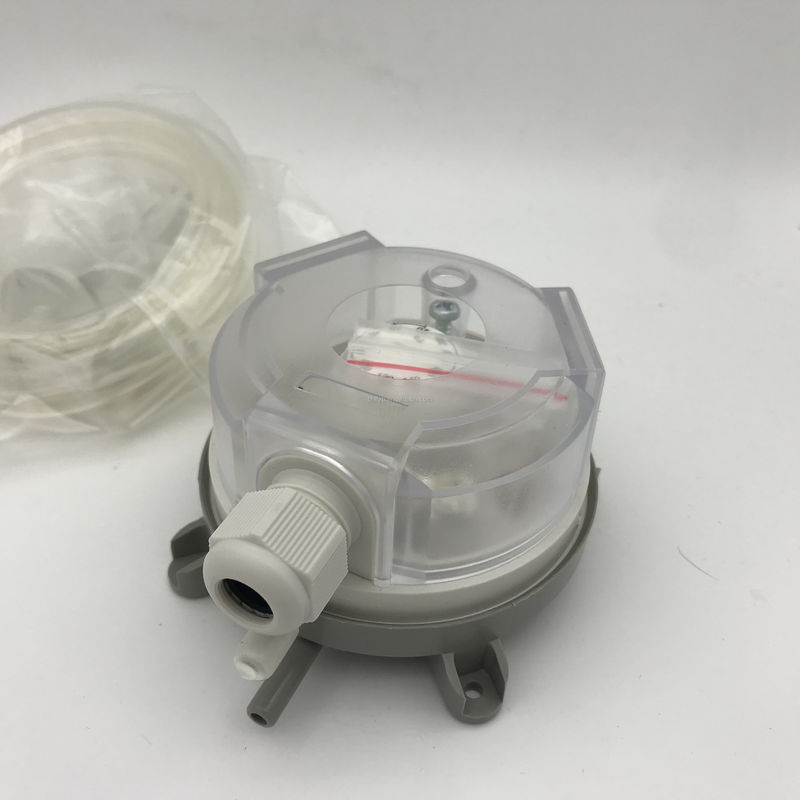

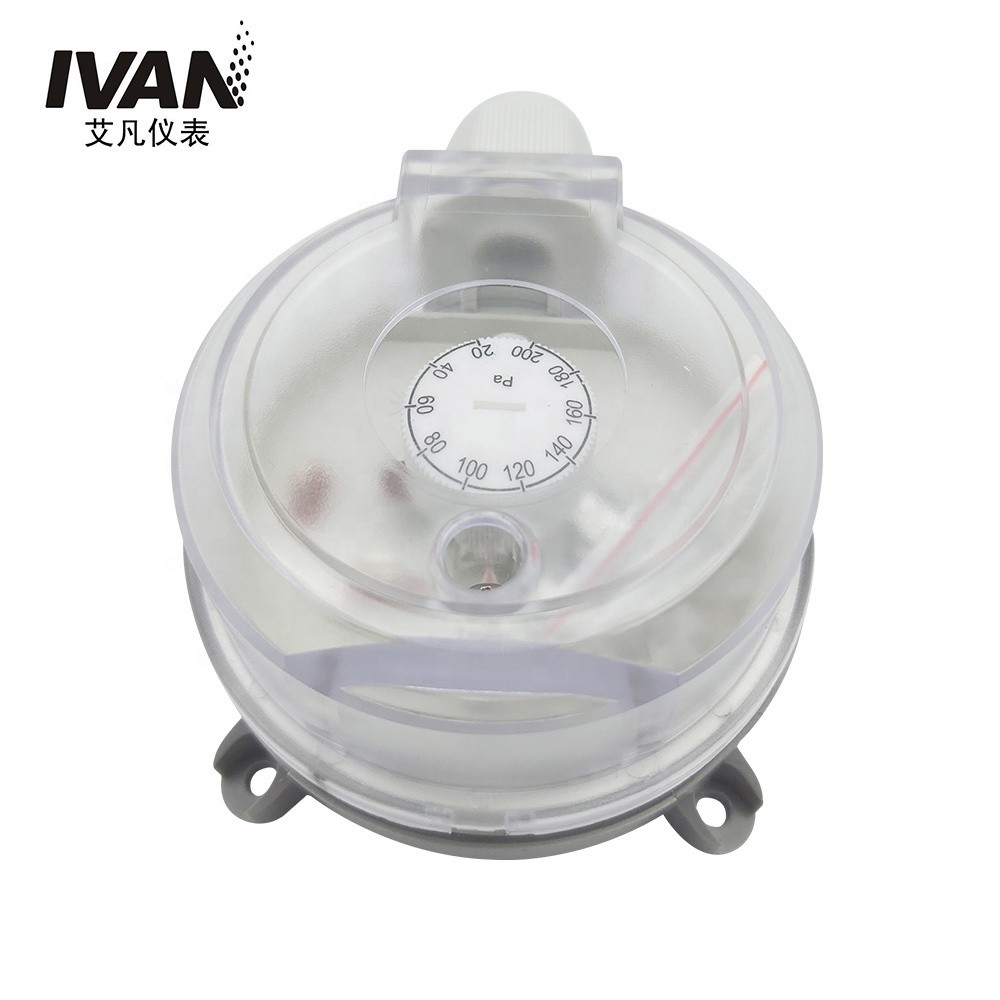

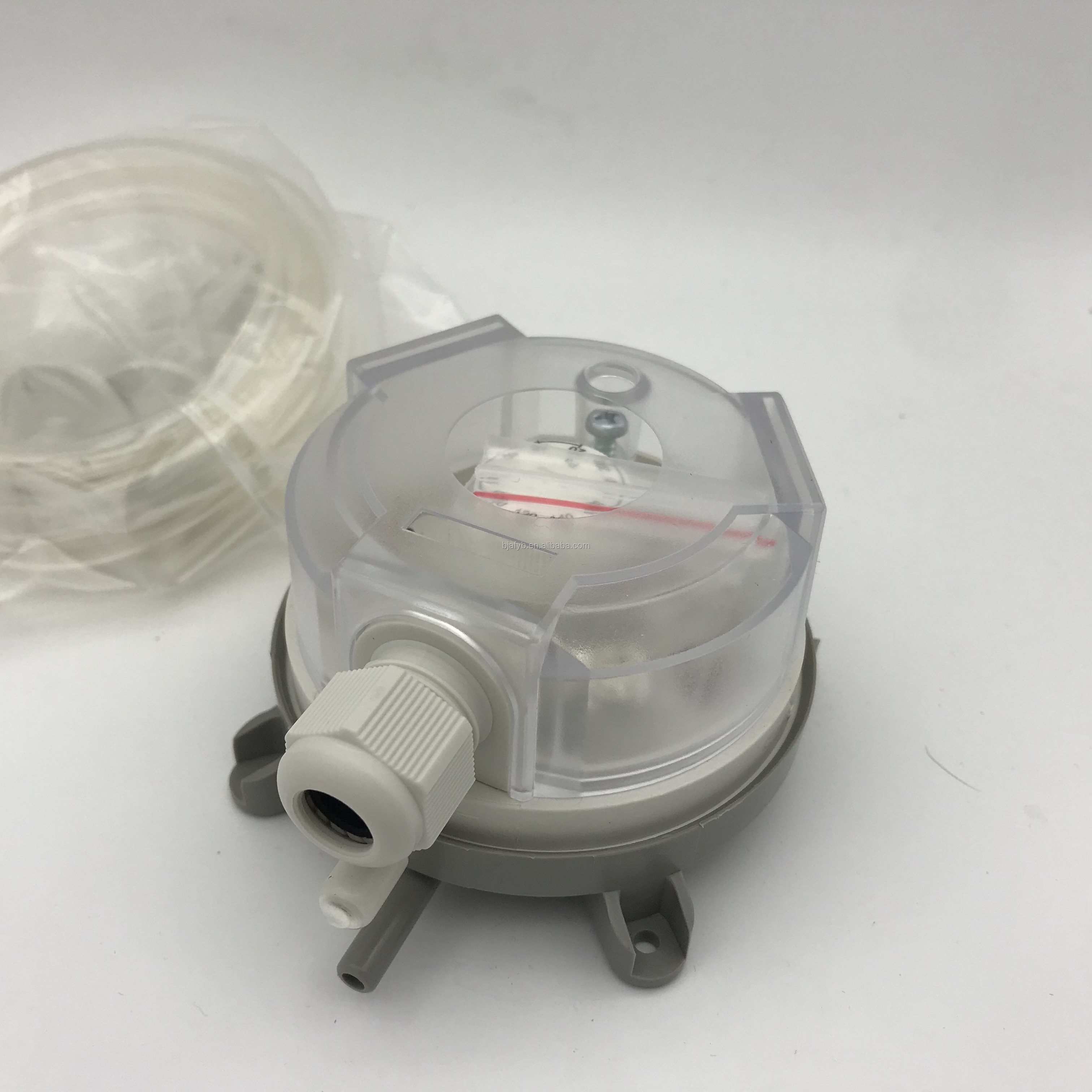

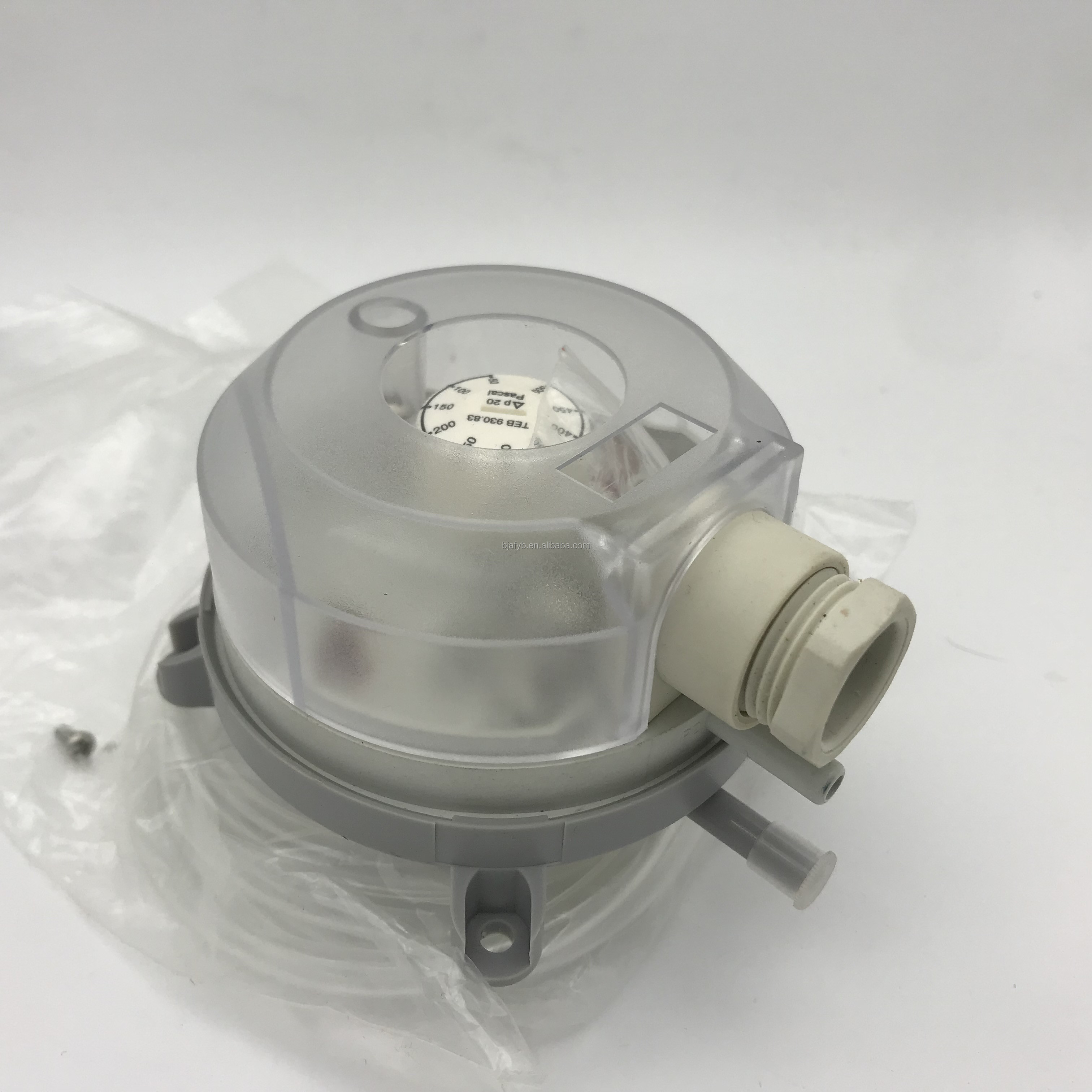

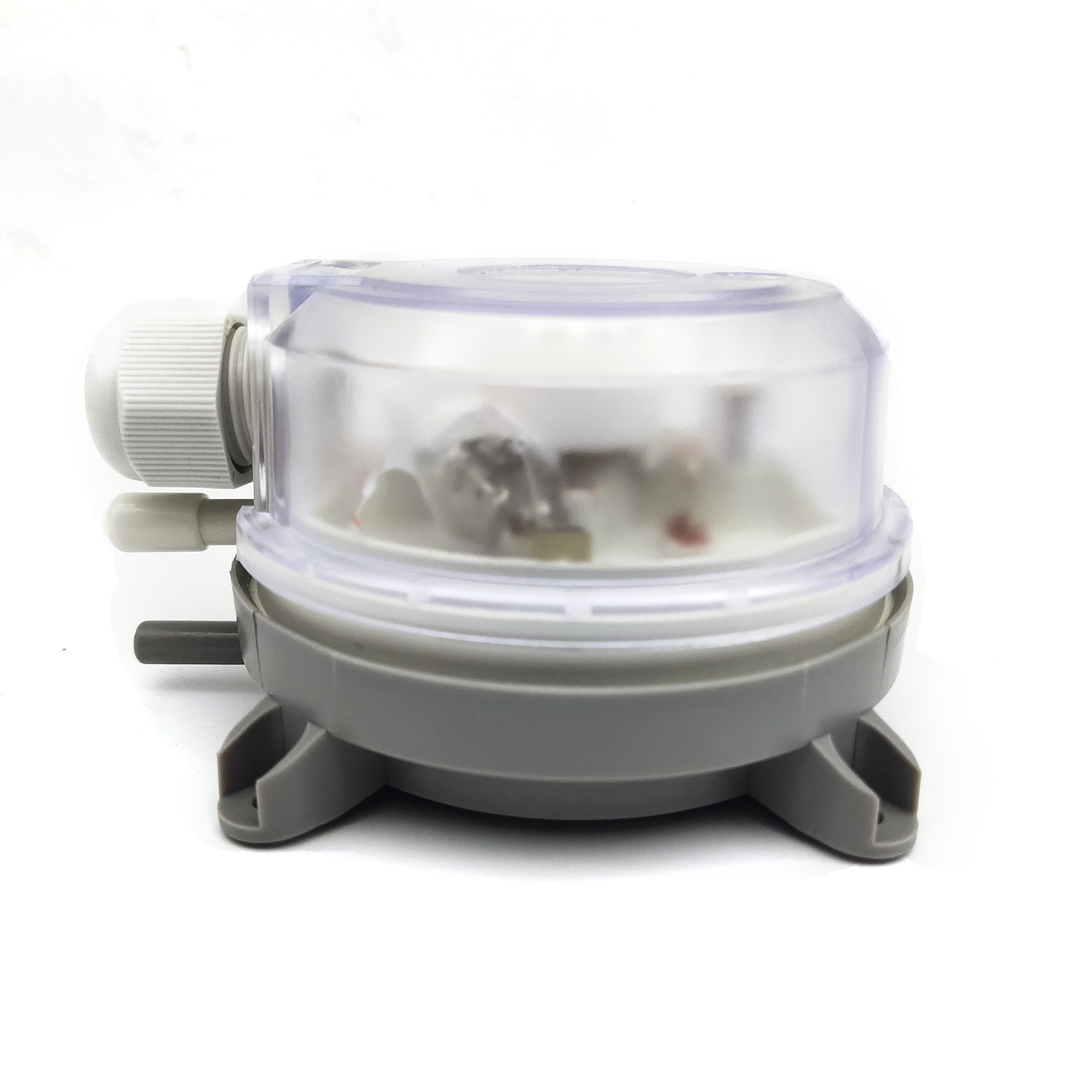

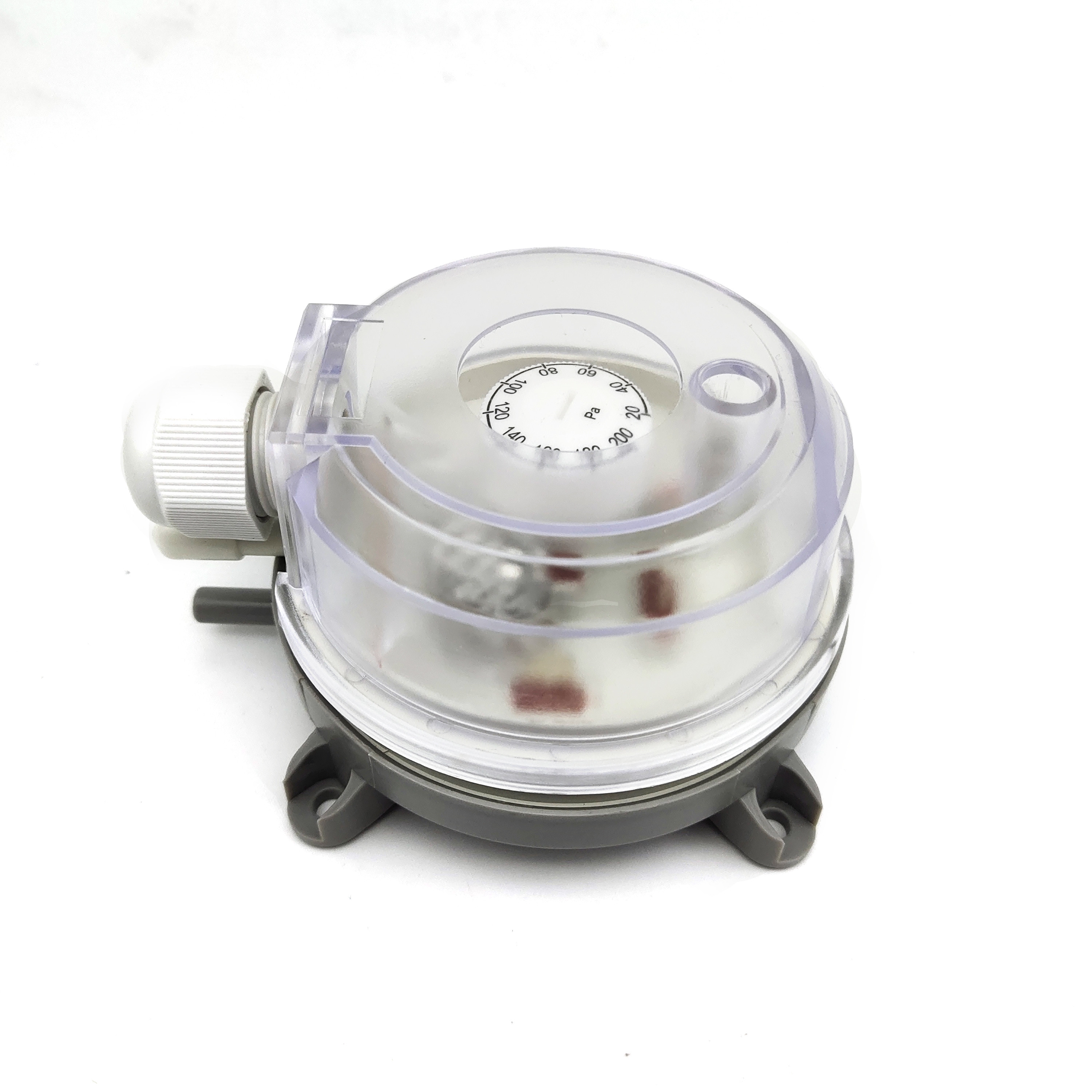

Air Differential Pressure Switch
Ntroduction:
This pressure switch is primarily used in ventilation and air conditioning systems for monitoring the air flow in air ducts, as well as in filters, flaps and fans. They are suitable for air and also other non-inflammable and non-aggressive gases.
Application:
This switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner. It is also suitable for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can be adjust visually.
Description
Mdel:AF930
Type: Gas Sensor
Output: Analog Sensor
Max. Working Pressure: 10KPa
Pressure Range:20-200Pa 20-300PA 50-500PA 100-1000PA 500-2000PA
Mounted Screew Diameter:4mm
Package Size:110*108*110mm
Colour:As Picture Shown
Product Material:
--Switch Material: PA6.6
--Shell Material: Plastic
--Diaphragm Material: Silicone
Protection level: IP65 1 trachea: 1.5 meters each
Temperature Range: Medium and ambient temperatures from -20 ~ 85 °C
Media: air, non-flammable and non-corrosive gases
