| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | IVANPER |
| Model Number: | AF501 |
| Minimum Order Quantity: | 10 units |
| Price: | $50.00 - $80.00/units |
| Packaging Details: | carton |
| Supply Ability: | 1000 Unit/Units per Week |
| Warranty: | 1 Year | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|

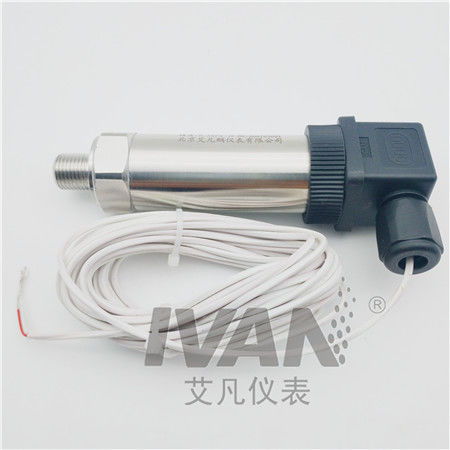

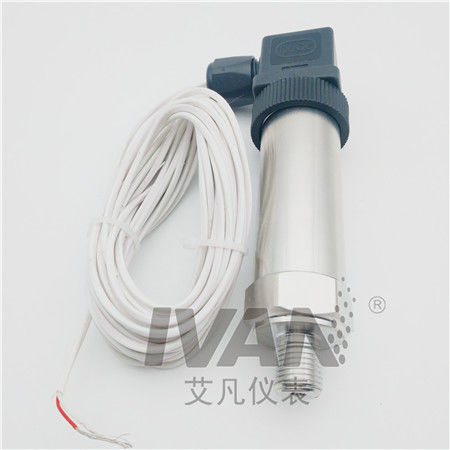

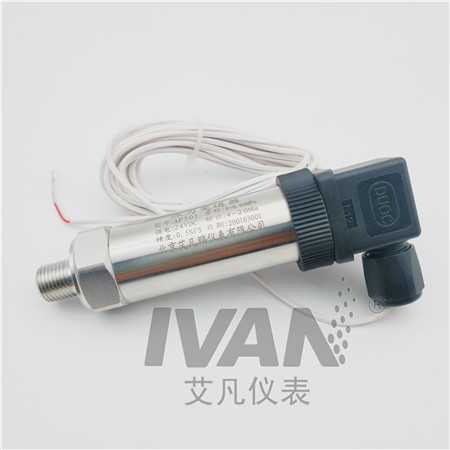

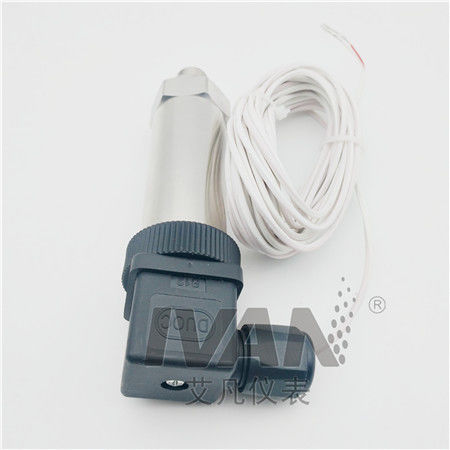

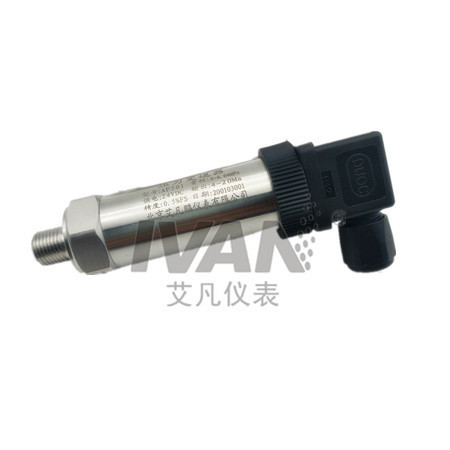

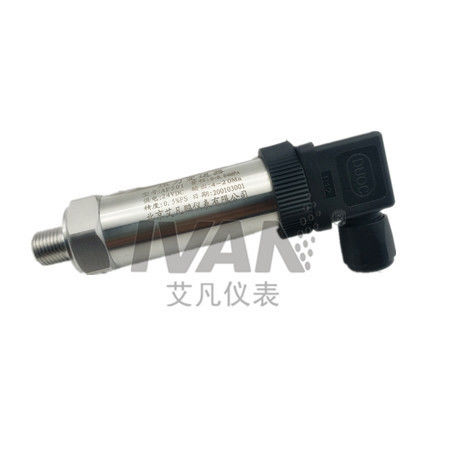

| Product Name: | Pressure Transmitter | Power Supply: | 24VDC (15-30VDC) |
| Measure Range: | -0.1...0~0.01...~100MPa | Proof Pressure: | ≤1.5X Rated Pressure Or 110MPa Which Ever Is Less |
| Pressure Type: | Gauge, Absolute ,sealed Gauge | Accuracy: | ±0.1% ±0.25%(typical) |
| Long Term Stability: | ±0.3%F.S/year | Diaphragm Material: | 316L |
| Port: | Tianjin |
|
Measurement Range
|
-0.1．．．0~0.01．．．~100MPa
|
|
Proof pressure
|
≤1.5X rated pressure or 110MPa which ever is less
|
|
Pressure type
|
Gauge, absolute ,sealed gauge
|
|
Accuracy
|
±0.25%(typical) ±0.5%(Max.)
|
|
Long term stability
|
±0.1%F.S/year(typical) ±0.2%F.S/year(Max.)
|
|
Temperature Error- Zero
|
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa)
|
|
Temperature Error -Span
|
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa)
|
|
Operating Temperature Range
|
-20℃~80℃
|
|
Storage Temperature Range
|
-40℃~120℃
|
|
Power supply
|
15～30VDC
|
|
Output signal
|
4～20mA 0～10/20mA 0/1～5/10VDC
|
|
Pressure port
|
M20×1.5,G1/2 or customize
|
|
Housing material
|
1Cr18Ni9Ti stainless steel
|
|
Diaphragm material
|
316L
|
|
O-ring
|
Fluororubber
|
|
Cable
|
polyethylene
|
|
Insulation resistance
|
100MΩ,100VDC
|
|
Protection
|
IP65
|
