Warranty: | 1 Year | Customized Support: | OEM, ODM, OBM |
---|---|---|---|

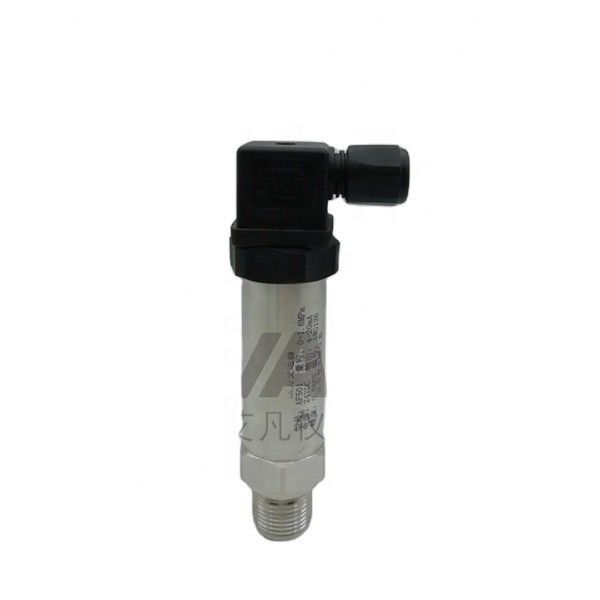

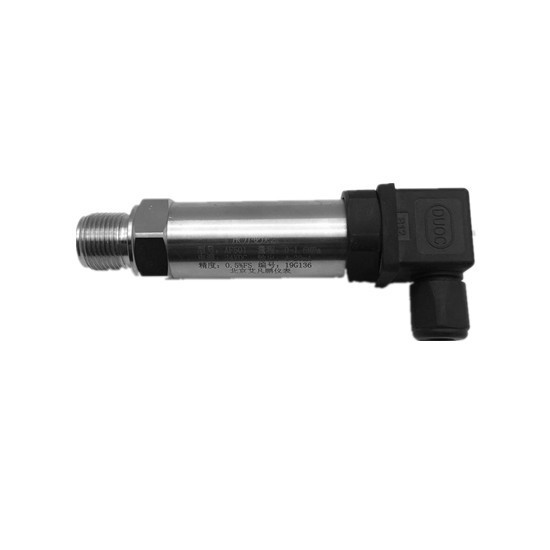

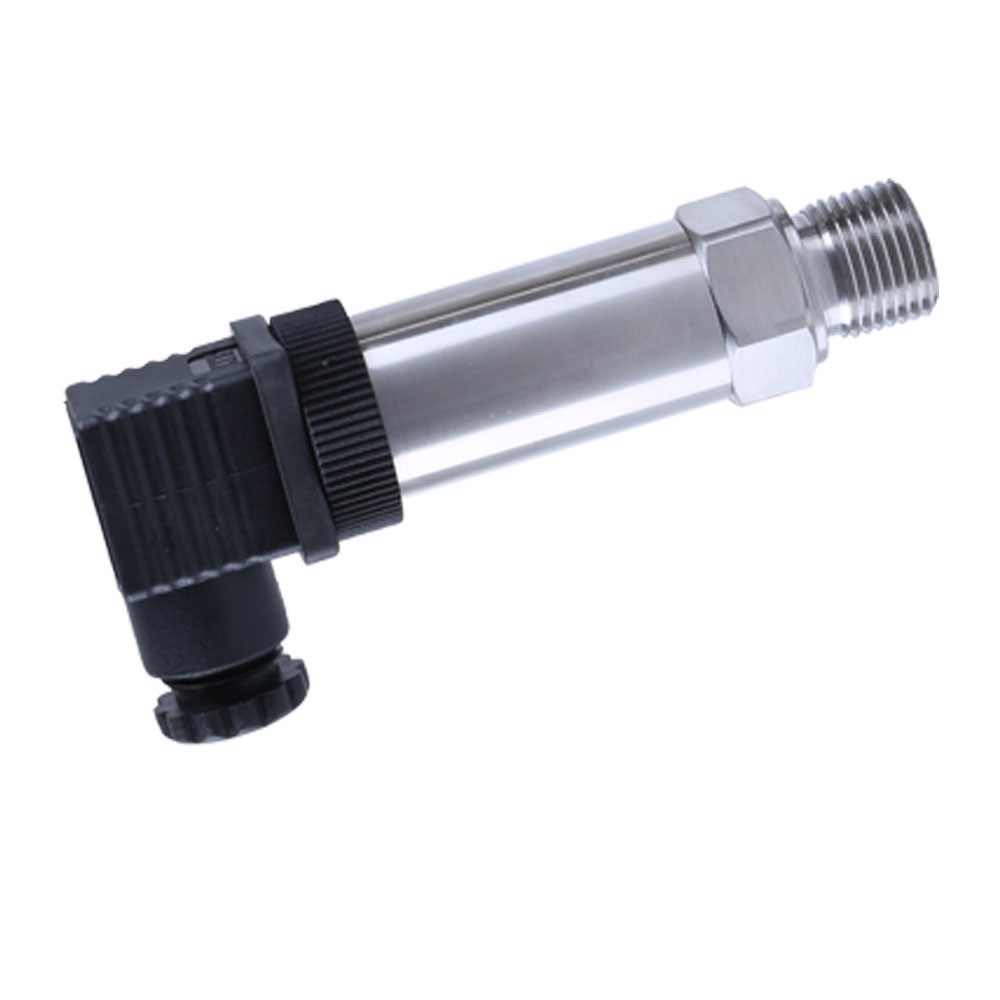

Product Name: | Pressure Transmitter | Output: | 4-20mA |
Specification
|
|
|
Measurement Range
|
-0.1...0~0.01...~100MPa
|
|
Proof Pressure
|
≤1.5X rated pressure or 110MPa which ever is less
|
|
Pressure Type
|
Gauge, absolute, sealed gauge
|
|
Accuracy
|
±0.25% (typical) ±0.5% (Max.)
|
|
Long Term Stability
|
±0.1% F.S/year (typical) ±0.2% F.S/year (Max.)
|
|
Temperature Error-zero
|
±0.03% F.S/℃ (≤100KPa) ±0.02% F.S/℃ (>100KPA)
|
|
Operating Temperature
|
-20℃~80℃
|
|
Storage Temperature
|
-40℃~120℃
|
|
Power Supply
|
15~30V DC
|
|
Output Signal
|
4~20mA, 0~10/20mA, 0/5~5/10V DC
|
|

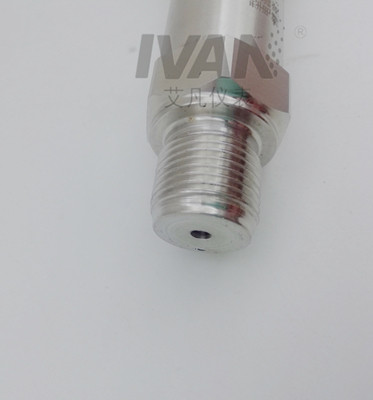

Pressure Port
|
M20x1.5, G1/2 or customized
|
|
Main Part Material
|
Stainless Steel
|
|
Diaphragm Material
|
316L
|
|
O-ring
|
Fluororubber
|
|
Cable
|
Polyethylene
|
|
Insulation Resistance
|
100MΩ, 100V DC
|
|
IP Grade
|
IP65
|
|
|
|
