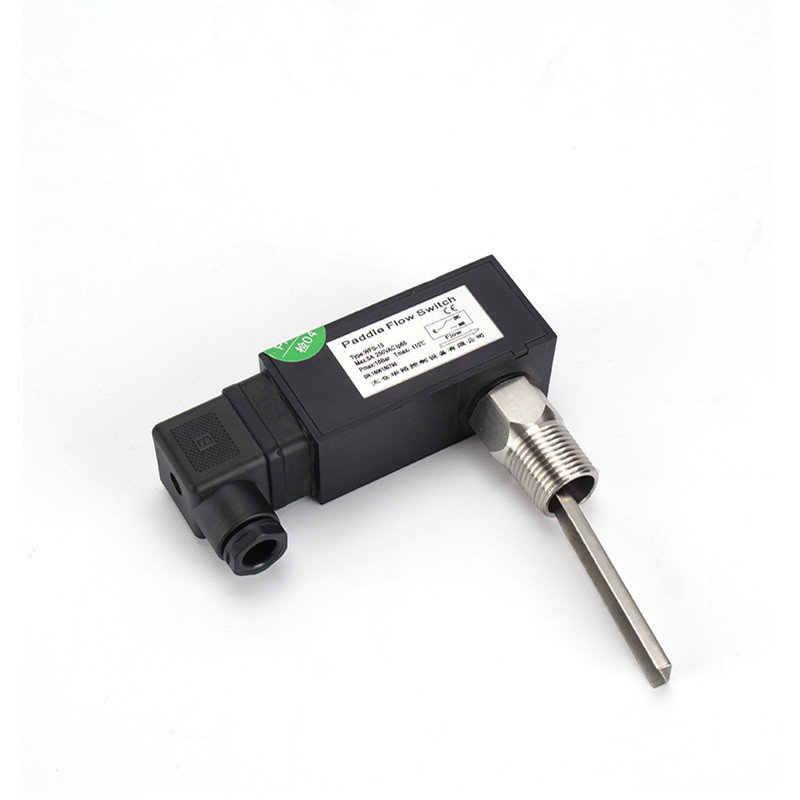

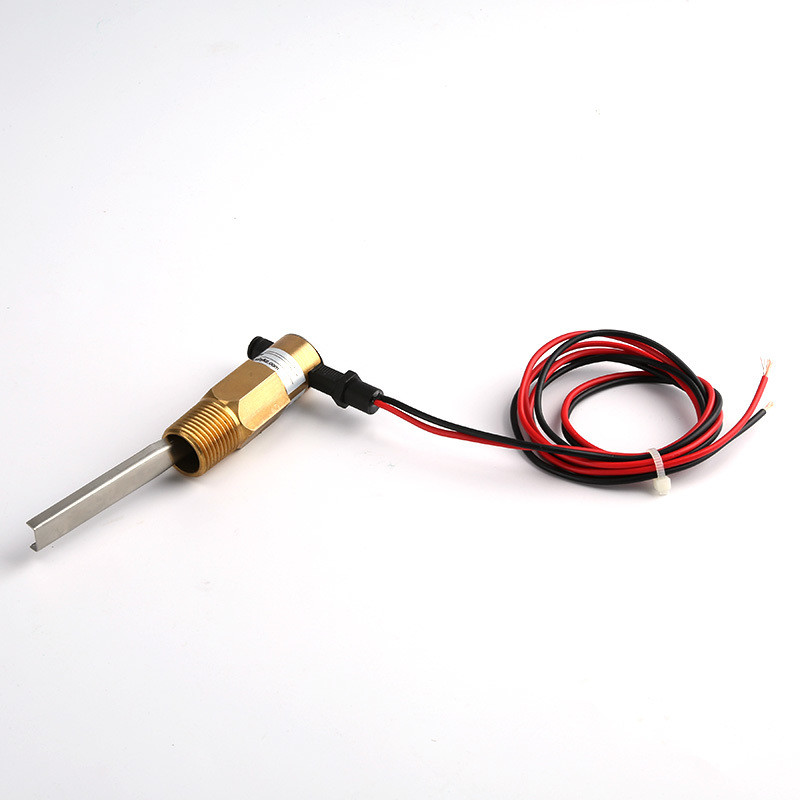

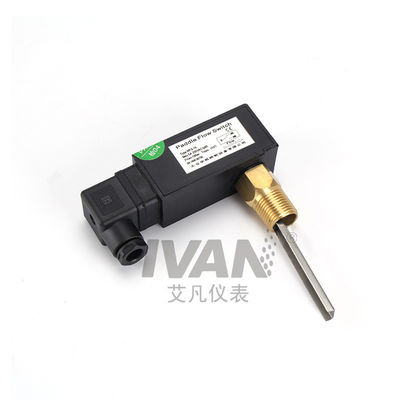

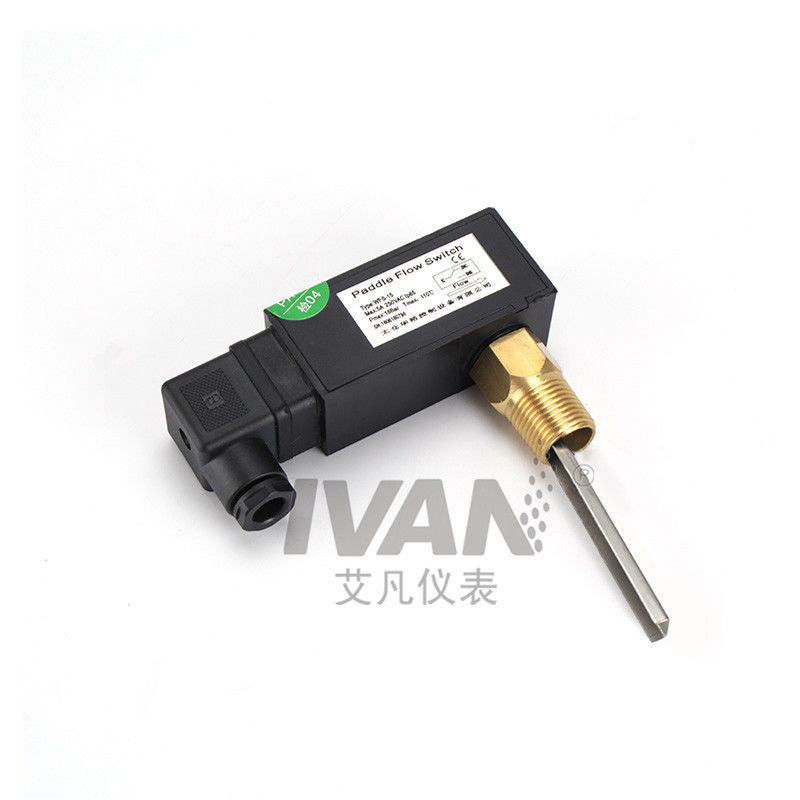

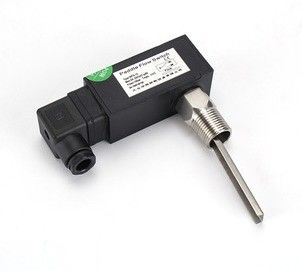

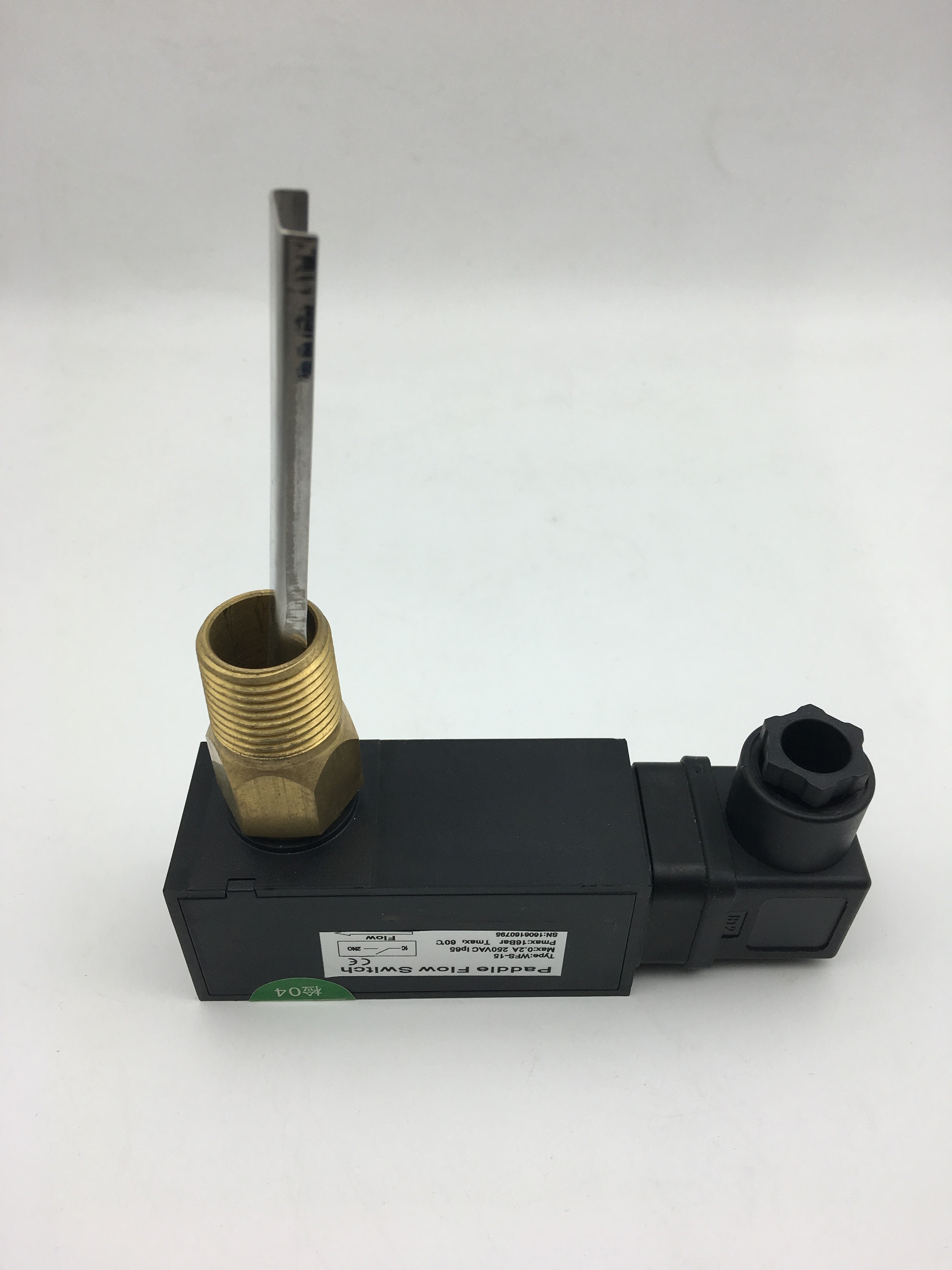

Name: Precision Media Type Liquid Brass Flow Sensor Switch for Industrial Applications
Brand: IVAN
SKU: FS15
Price: 20.00 USD
Availability: InStock
Rating: 4.6 (110 reviews)

Detail Information

Media Type:	Liquid	Operating Temperature:	-40-90℃
Material:	Brass	Port:	Tianjin

Product Description

Liquid flow switch water flow sensor switch

Product Description

Specification

Flowmeter unit: L / min
Pipe size	Connect	cut off	Remarks
DN15	3.3	3	The water inlet length of the baffle is two thirds of the pipe diameter
DN20	4.6	4.2
DN25	7,3	7
DN32	15	14.2
DN40	25.3	24
DN50	36	34.4

Setting of switch point if the user requires precise setting of switch point, please put forward it to the manufacturer at the time of purchase for calibration by the factory.When the reed switch (black plastic part) moves against the water flow direction, the action value increases (i.e. alarger flow is required to open the switch), otherwise, the action value decreases.Lock the screws after adjustment.After the user obtains the flow switch, he can be familiar with the operation process of the switch first, and then set it.When the switch is not installed on site, move the baffle by hand, and repeat it after adjustment to verify whether the switch point setting is accurate.In order to monitor whether the switch acts, a multimeter can be connected to the switch circuit to judge whether the action occurs.

Packing & Delivery

Company Profie

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Packing & Delivery

Company Profile

Beijing Ifpen Instrument EnterpriseWas founded in 2011, adjacent to the beautiful political and cultural center, located in Daxing Industrial Development Zone, Beijing.The company has a professional, innovative technica team and standardized production team. Over the years, we have been committed to the research and development of industrial instrument production, focusing on the research and development of the field of"wind speed and air volume", and achieving zero breakthrough of turbulence jump. Since its establishment, the company insists on"innovation, quality, integrity" to serve the new and old customers. Ivan products not only occupy a high proportion of market share in China, as a national brand, go abroad, exported to the world.

Exhibition

Certifications

FAQ

FAQ for better and easy cooperation:
1.Why choose IVAN?
We are the leading manufactuer, OEM & ODM service areoffered
2.How about the sample of IVAN product?
We could send you the samples but the freight and the sample are charged.
4.How about IVAN payment term?
TT &L/C &Westem Union(40% deposit, the balance before shipment)
5.How about BIOBASE delivery time?
Within 7-15 workdays after receving deposit
6.How about IVAN validity of quotation?
Usualy 30 days as the shipping freight and exchange rate can be fluctuant.
7.What is the shipping port?
FOB to Qingdao Port, China(also can ship according to customers' request)
8.How about the package?
Bubble film+ Coton +Standard export wooden case.
9.How to inspect the goods?
Products i be checked by our QC staffist then our proejct manager. Cient can come and check bythemselves or third party check is available.
Any quesion or help pease felfre t contact with any time!

Place of Origin:	Beijing, China
Brand Name:	IVAN
Certification:	-
Model Number:	FS15

Minimum Order Quantity:	5 acres
Price:	$20.00/acres >=5 acres
Packaging Details:	carton
Supply Ability:	2000 Piece/Pieces per Month
