| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | IVANPER |
| Model Number: | AF501 |
| Minimum Order Quantity: | 10 units |
| Price: | $70.00 - $75.00/units |
| Packaging Details: | carton/wooden box |
| Supply Ability: | 1000 Unit/Units per Week |
| Warranty: | 12 Month | Customized Support: | OEM, ODM |
|---|---|---|---|
| Pressure Range: | -1000KPa~0-60MPa |

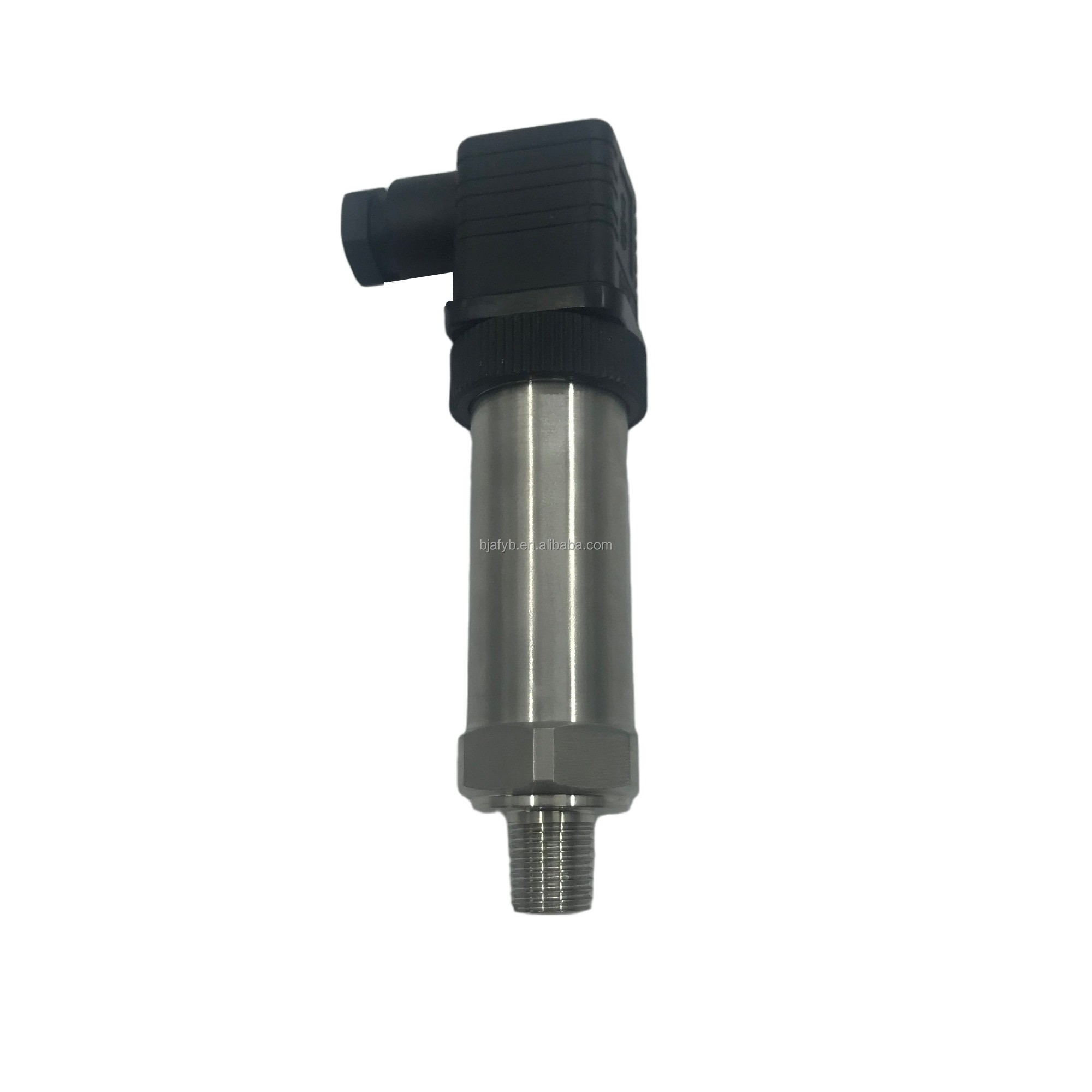

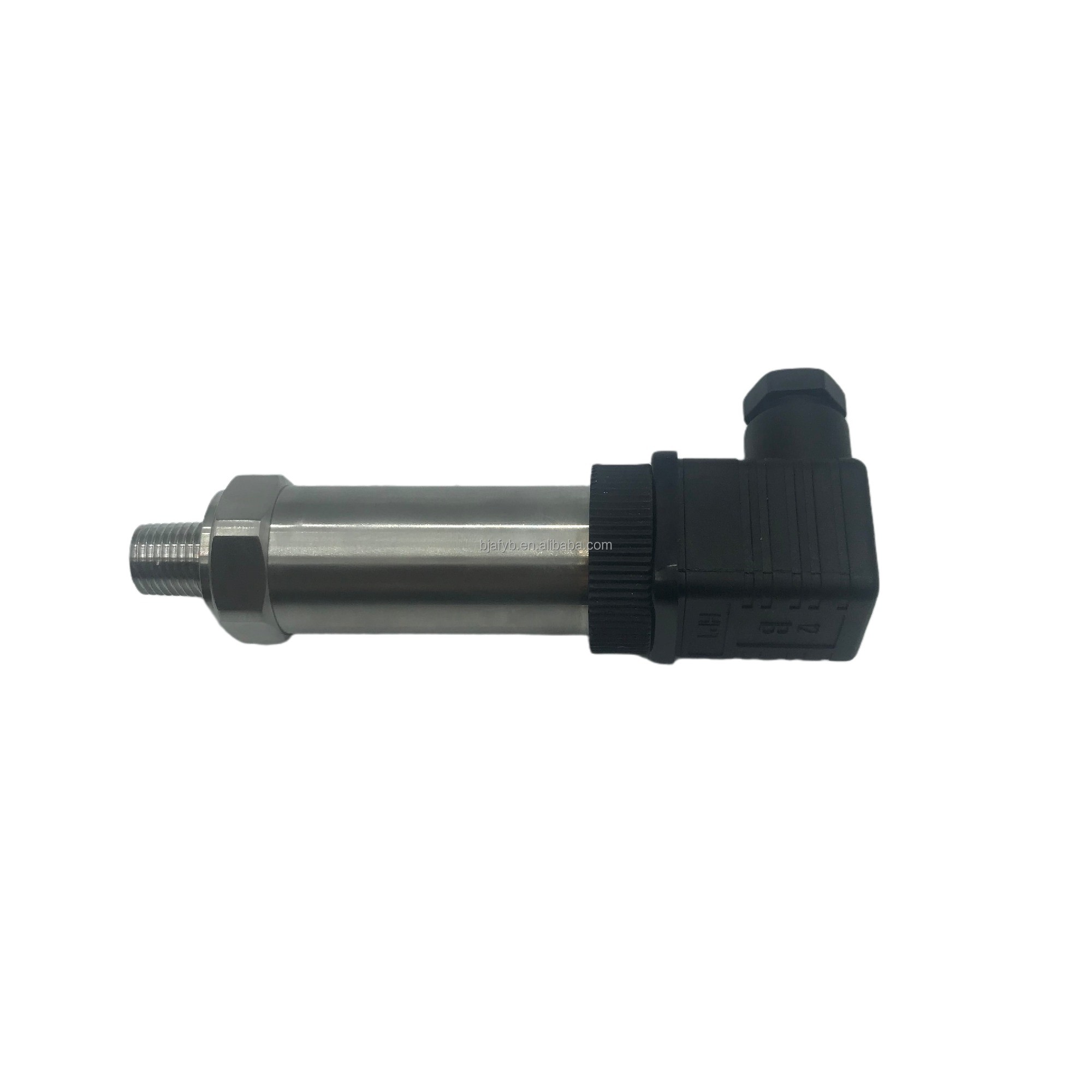

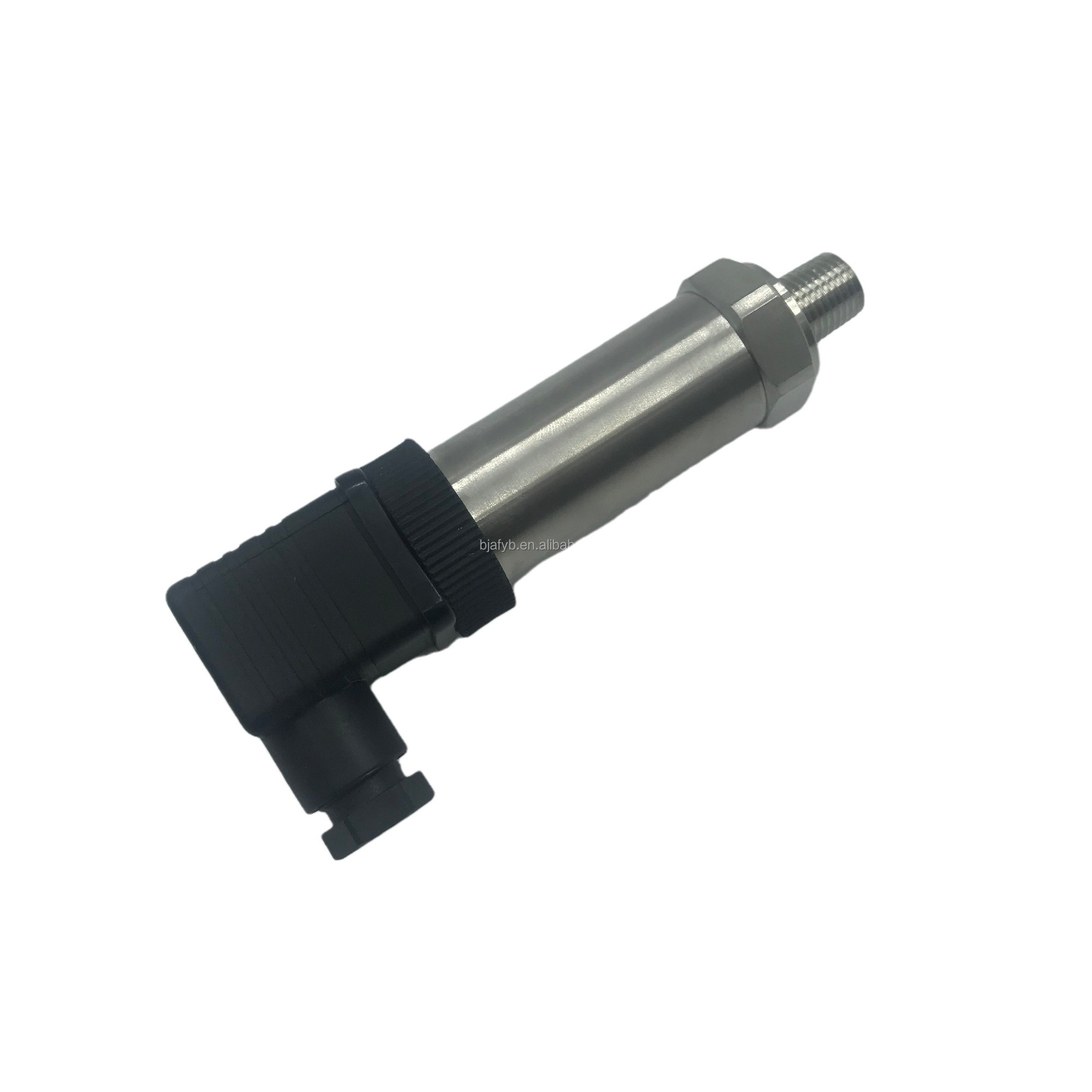

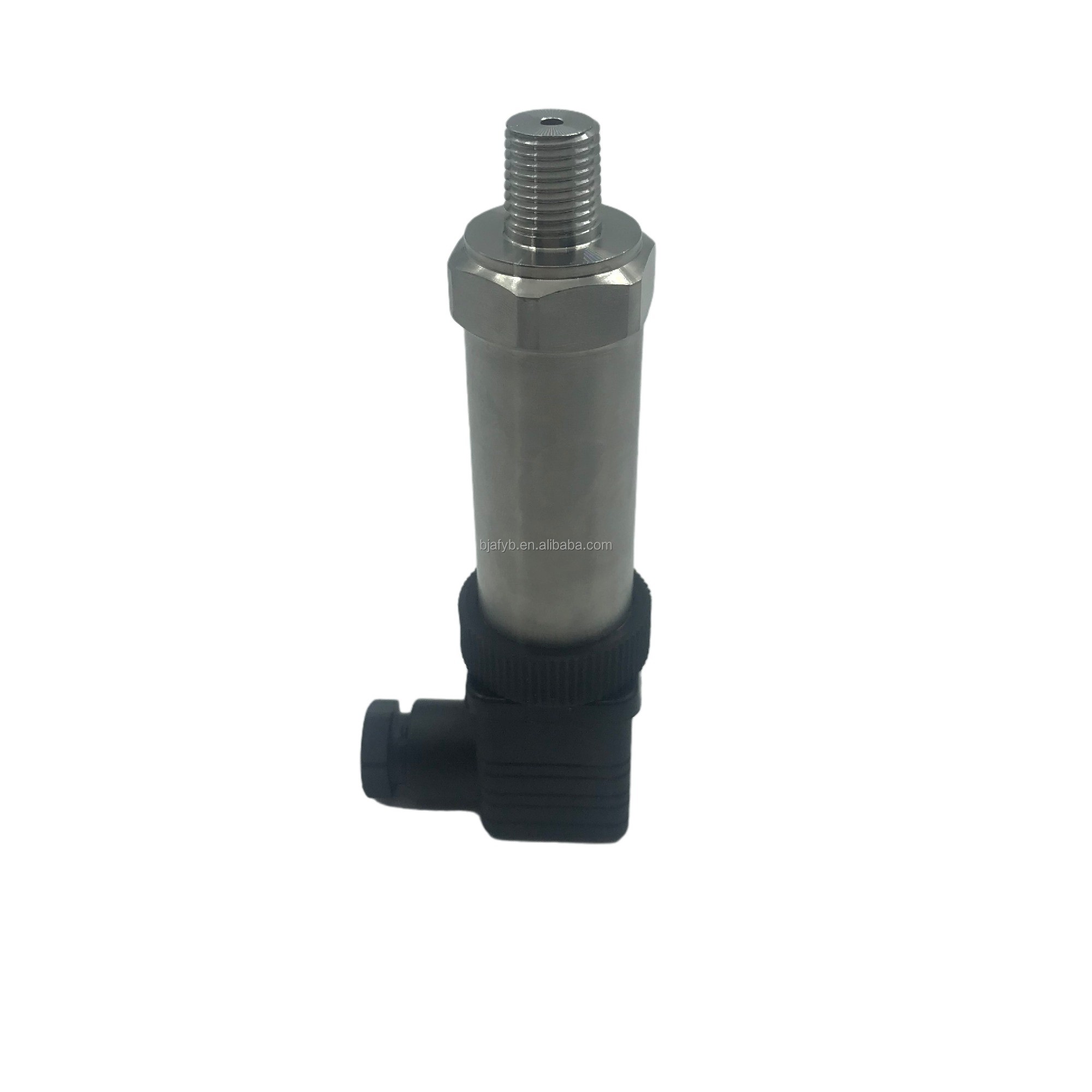

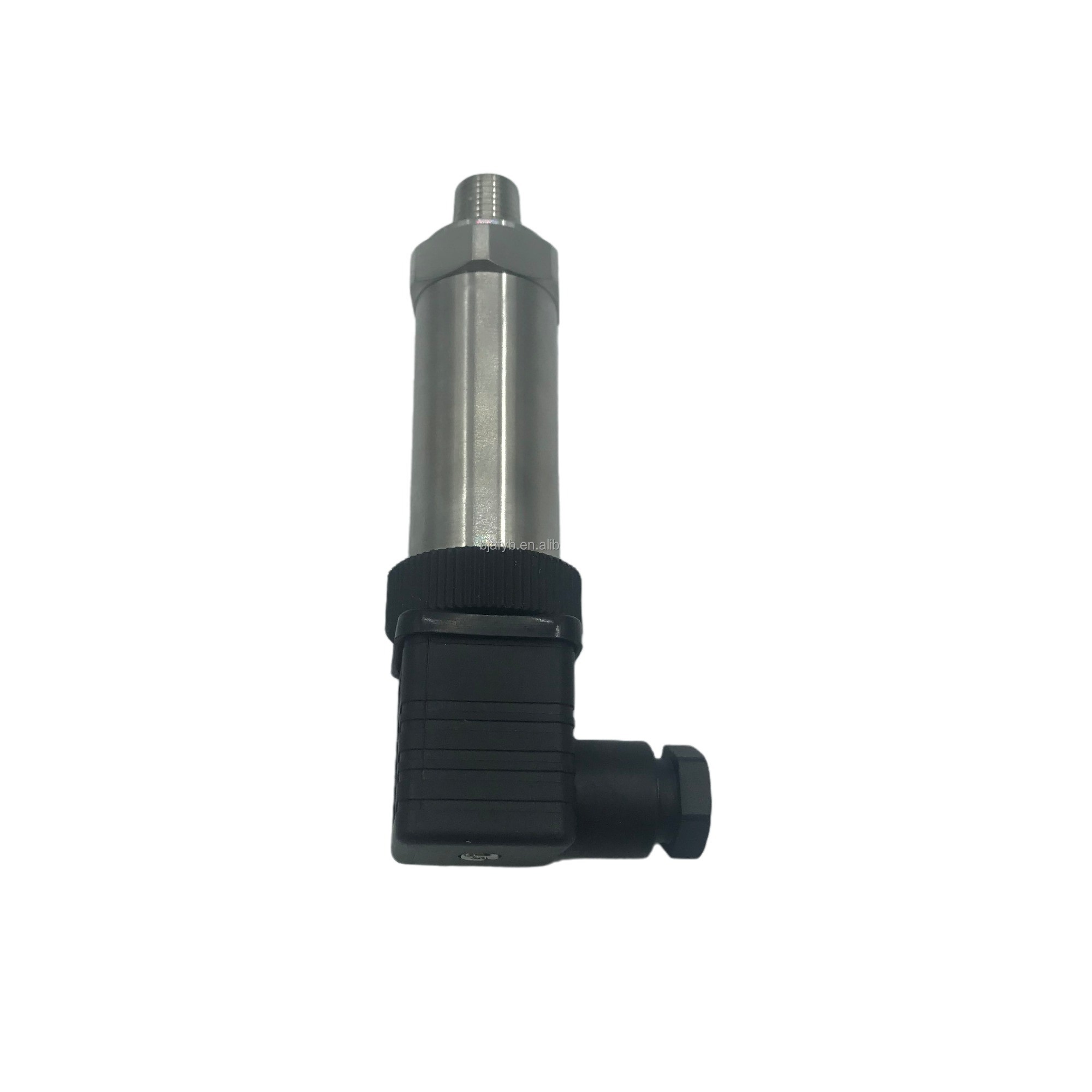

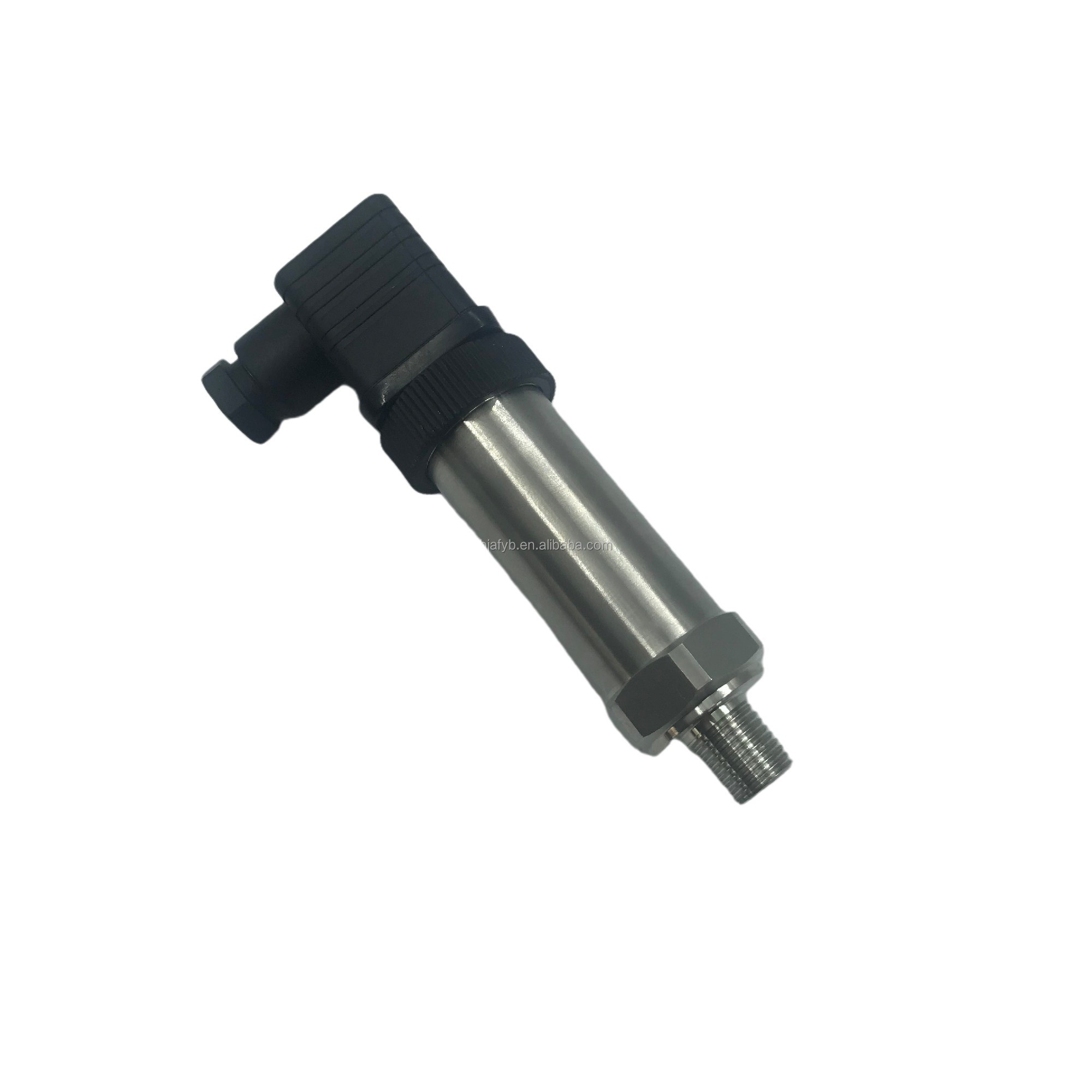

China pressure transducer 4 20ma rs485 absolute pressure transmitter. PCM300 series pressure transmitter is a stainless steel cylinder shell, using direct wire or the international general DIN43650 Hersman junction box. High degree of enclosure protection because of its exquisite shape, mainly suitable for indoor and mechanical supporting equipment, automatic detection and control are widely used in all kinds of gas, liquid and vapor pressure, liquid level, wide measuring range, high accuracy, good stability, reliable performance, convenient installation and operation, reverse polarity protection, anti lightning performance, anti RF strong ability of interference. The product is widely used in the process control and measurement of petroleum, chemical, metallurgical, aviation, aerospace, medical equipment, vehicles, refrigerators, compressors and other industries.
Specification
| Measuring Range | -1000KPa~0-60MPa |
| Compensation Temperature | -10~70℃ |
| Output Signal | 4-20mA;1-5V;0-5V;00-20mA;Customization |
| Medium Temperature | Customization |
| Ambient Temperature | -40~85℃ |
| Enclosure Protection | IP65 |
| Pressure Type | Gauge pressure; Absolute pressure; Seal pressure |
| Temperature Effect on Zero | ±0.03%FS/℃ |
| Sensitivity Temperature Drift | ±0.03%FS/℃ |
| Overload Pressure | 200%FS |
| Long-term Stability | ≤0.2%FS/℃ |
| Natural Frequency | 5KHz~650KHz |
