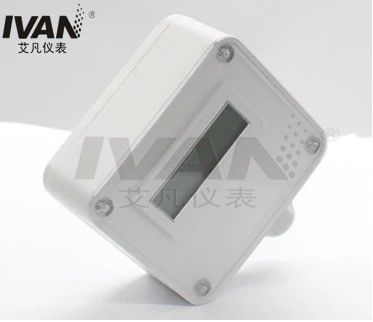

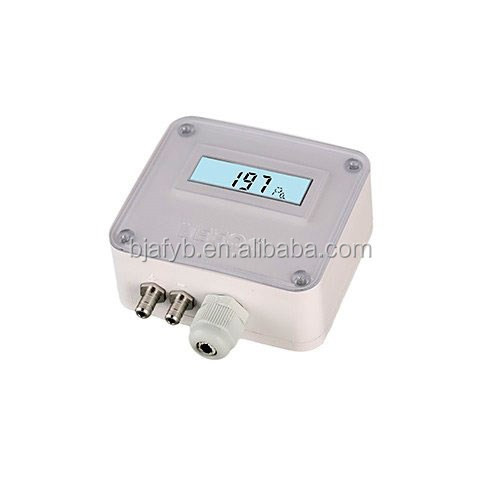

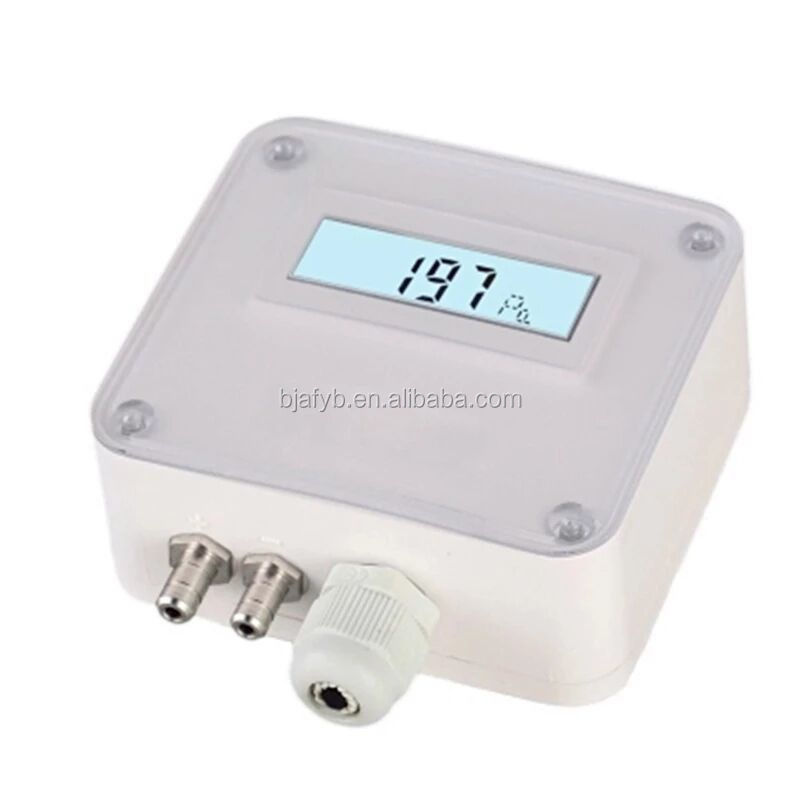

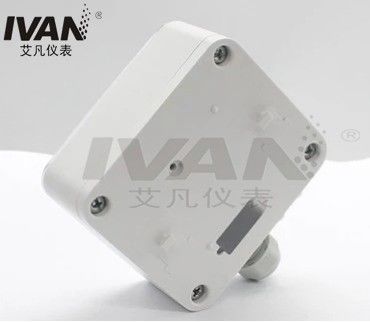

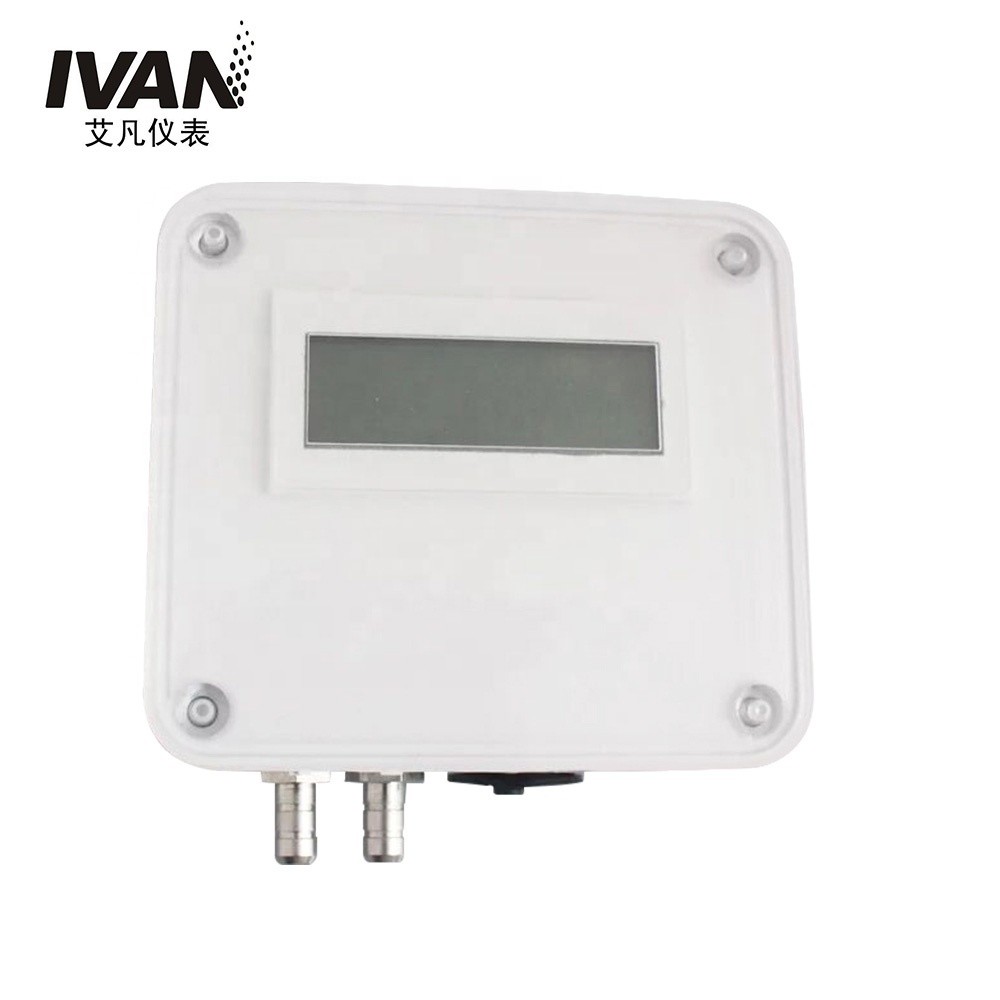

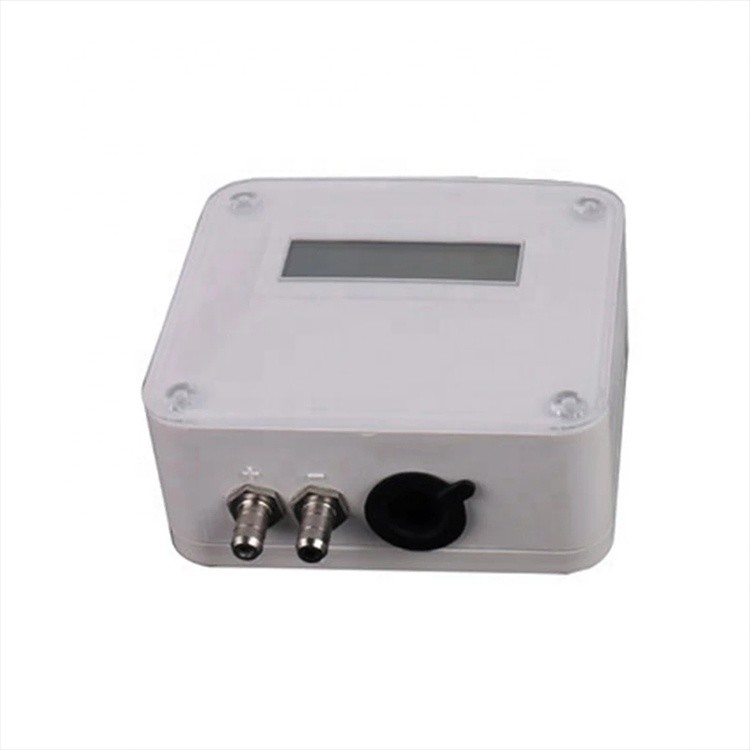

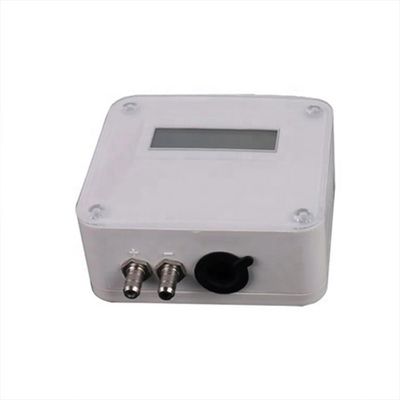

Name: Industrial Grade Digital Differential Pressure Transmitter/Sensor with Custom Support
Brand: IVAN
SKU: AF110
Price: 80.00 USD
Availability: InStock
Rating: 5 (160 reviews)

Detail Information

Warranty:	1 Years	Customized Support:	OEM
-:	-

Product Description

Product Name	4-20mA/ 0-10v/485 microdifferential pressure transmitter Air
Product name	Differential Pressure Dp Sensor
Display	With Display
Pressure range	-10,000 Pa......10,000 Pa

Product performance description
产品性能介绍说明

AFM110/112 serial differential pressure transmitters are engineered for building automation in the HVAC/R industry , pressure and
flow monitoring, and low differential pressure test in industry application.

Factory provide Micro low cost differential pressure sensor

Differential pressure transmitter is widely used in the measurement of pressure, wind speed and differential pressure of blower, in the fields of pharmacy, medical equipment manufacturing, HVAC, semiconductor, etc! Mainly used in clean workshop, clean room,

Product Usage

- Product usage introduction

产品使用方式介绍

Protection grade:IP65
Display:LCD display,50 x 22.5 mm
Number height:test value 10 mm unit 5 mm
Pressure connection:metal barb connection,Ø 6.2 mm
Cable connection:max diameter: Ø 8 mm
Weight:140g

Resolution
1Pa,0.1mmH2O,0.01mbar,0.004inWG,
0.007mmHG,0.1daPa,0.001KPa,0.01hPa
Zero calibration

Description of product use effect

产品使用效果说明

serial differential pressure transmitters are engineered for building automation in the HVAC/R industry , pressure and flow
monitoring, and low differential pressure test in industry application.

his transmitter can detect differential pressure or gauge pressure then convert this pressure difference to a proportional
analogue output signal, in order to monitor and control building automation with precise pressure and flow

Packing&Shipping

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Company Introduction

Ivanpeng specializes in operating pressure, temperature and humidity, wind speed, liquid level, flow and other intelligent instruments and sensors in stable and reliable operation in the industrial site. Each instrument has standard signal output and high stability. Wind speed, temperature and humidity and 2000 series micro differential pressure meters have been used as GMP standard products in the biological pharmaceutical and food industry.

Our Services & Strength

Medium: non-combustible, non-corrosive air, insensitive to moisture, dust, condensation and oil
Working Temp.: -20~70°C
Medium Temp.: 0-60°C
Compensated Temp.: 0-50°C
Working pressure: 1, 2, 5 or 10Kpa for different ranges, overload 10xFS, burst 15xFS
Process Connection: 1/8” ID tubing
Display: 5 digit LCD, with unit indication, field upgradable
Output: 0~10V, 4~20mA (2 wires), RS485 selectable
Output Load: ≤500Ω (current), ≥2KΩ (voltage)
Accuracy: DPT:±1.0%FS, DPTL:±2.0%FS
Long term stability: ±0.5%FS /Year
Temp. Drift: < 0.05%FS/°C
Response time: 0.5-30s, can be set by button keys
Power: 15~28V AC/15~36VDC
Protection: IP54
Unit select & Zero setting: by keys
Materials: ABS (housing) & PC (cover)
Approval: CE

FAQ

Q1) Can you make the goods based on our requirement? Yes, any kind of OEM design is warmly welcomed, and send me your deatiled request and we will try our best to meet. Q2) How can I get the samples? We can provide samples according to your request. However, pls be kind in pay the sample cost and freight, and sample cost will be fully returned when mass order confirmed. For some range, we can provide you free samples (Within 2pcs), you juest need to pay the postage. Q3) What's the delivery time ? For common ranges, we have a number of inventory, we could dispatch them immediately. For small order, it needs about 3 days. For large order, it needs 1-3 weeks depending on quantity. Q4) How can I trust you? We're engaged in this field for about 10 years. we have good experience in domestic trade and export trading. We have our own factory, always welcome your visit.

Place of Origin:	Beijing, China
Brand Name:	IVAN
Model Number:	AF110

Minimum Order Quantity:	5 units
Price:	$80.00/units 5-99 units
