Air Adjustable Differential Pressure Transmitter with IP 65 Protection and LCD Display

Basic Information
Place of Origin: Beijing, China
Brand Name: IVAN
Minimum Order Quantity: 2 pieces
Price: $120.00/pieces 2-99 pieces
Packaging Details: carton
Supply Ability: 1000 Piece/Pieces per Week
Detail Information
Port: Tianjin

Product Description

Air Adjustable Differential Pressure Transmitter with IP 65 Protection and LCD Display 0



Product Description
Product Description





Differential pressure transmitter



PT-DP014 series differential pressure transmitters are used for building automation in the HVAC/R industry , pressure and flow monitoring, and low differential pressure test in industry application.

Air Adjustable Differential Pressure Transmitter with IP 65 Protection and LCD Display 1
Detailed Images
Detailed Images








LCD display.

Sho more clarity.







International CE certification.

safe and secure.










Pressure input interface.

Stainless steel material, strong and durable.

Internal circuit
Internal circuit
Air Adjustable Differential Pressure Transmitter with IP 65 Protection and LCD Display 2
Product Parameter
Product Parameter
Model
PT-DP014
Media
Air and neutral gas
Pressure range
-100Pa~0Kpa~100Pa...10Kpa
Simulate range
0~10000Pa
Accuracy
0.5%F.S,1%F.S
Power supply
16~30VDC
Output signal
4 ~ 20 mA , 0 ~ 10 Vdc,0~5Vdc
Operating TEMP
-10~+60°C
Compensate range
-10~+70 ℃
Pressure connection
metal barb connection,Ø 6.2 mm
Cable connection
max diameter: Ø 8 mm
Display
LCD display,50 x 22.5 mm
Protection grade
IP65
Unidirectional pressure
Bidirectional pressure
0~100Pa
0~±50Pa
0~250Pa
0~±100Pa
0~500Pa
0~±250Pa
0~1000Pa
0~±500Pa
0~2500Pa
0~±1000Pa
0~5000Pa
0~±2500Pa
0~10000Pa
0~±5000Pa
Product display
Product display
Air Adjustable Differential Pressure Transmitter with IP 65 Protection and LCD Display 1

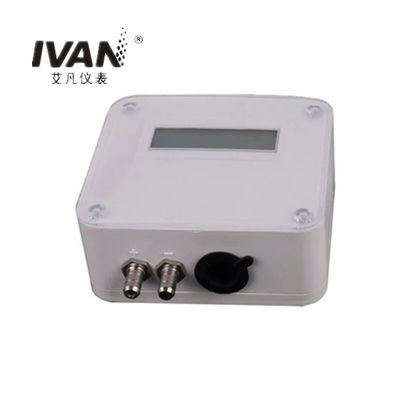

Air Adjustable Differential Pressure Transmitter with IP 65 Protection and LCD Display 4

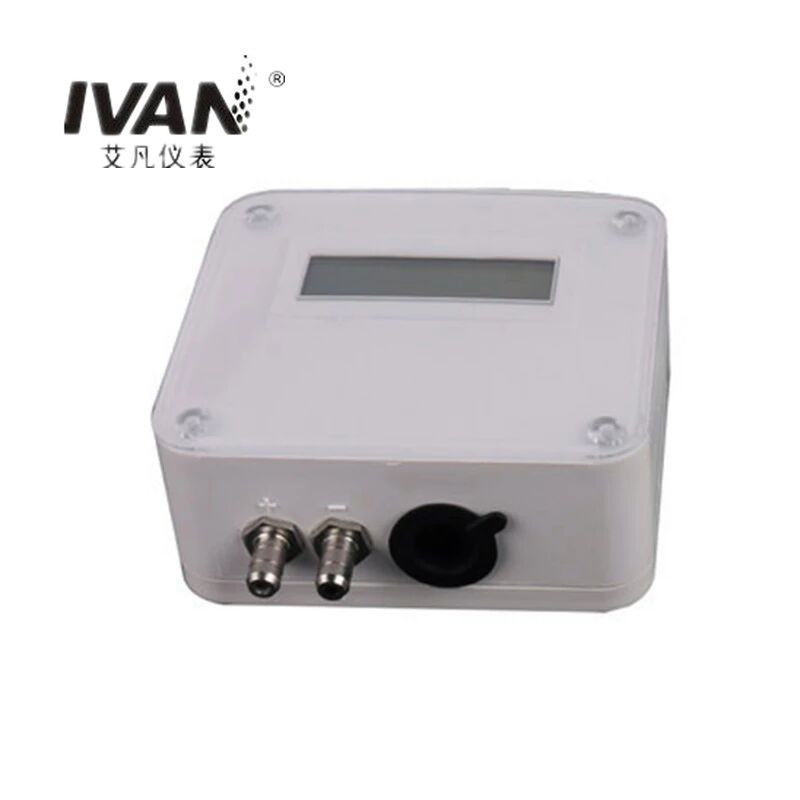

Air Adjustable Differential Pressure Transmitter with IP 65 Protection and LCD Display 5

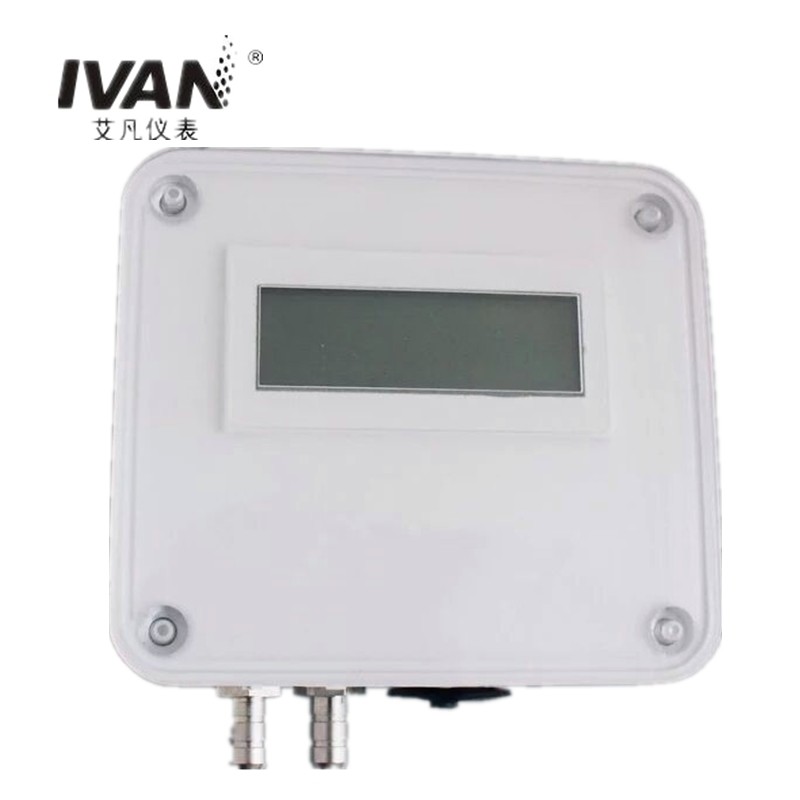

 Air Adjustable Differential Pressure Transmitter with IP 65 Protection and LCD Display 6
