| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | IVANPER |
| Model Number: | AF402 |
| Minimum Order Quantity: | 5 stones |
| Price: | $40.00/stones 5-19 stones |
| Packaging Details: | Carton/wooden box |
| Supply Ability: | 500 Piece/Pieces per Week |
| Warranty: | 12 Months | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Product Name: | Temperature And Humidity Sensor | Power Supply: | 12-35VDC |
| Output Signal: | 0-10V 4-20mA | Accuracy: | ±0.3℃ (full-scale Average) |
| Working Temperature: | -40~80℃ | Working Humidity: | 0~99% RH (no Condensation) |
| Connection: | 1x2.5 Mm2 / 2x1.5 Mm2 (Terminal Capacity),M12x1.5mm | Port: | Tianjin |

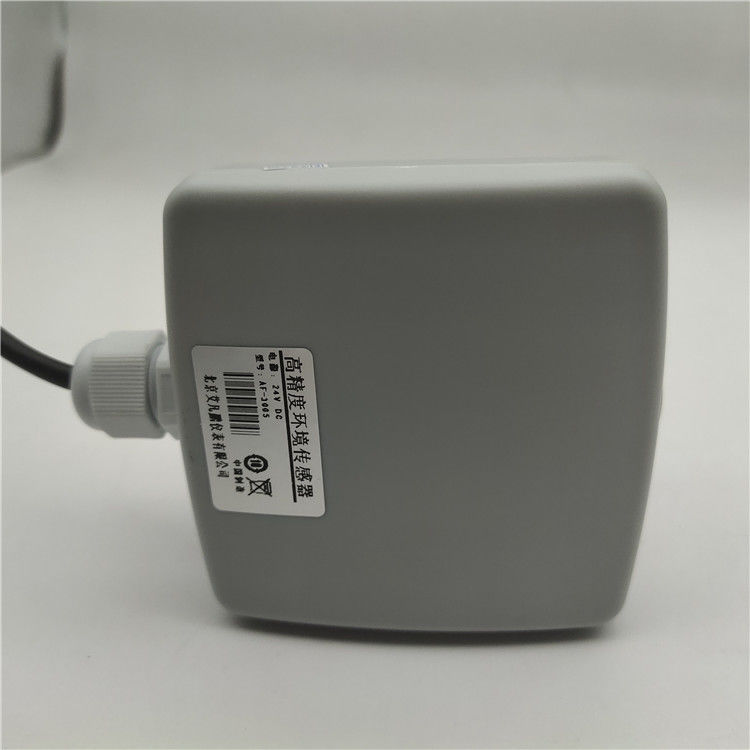

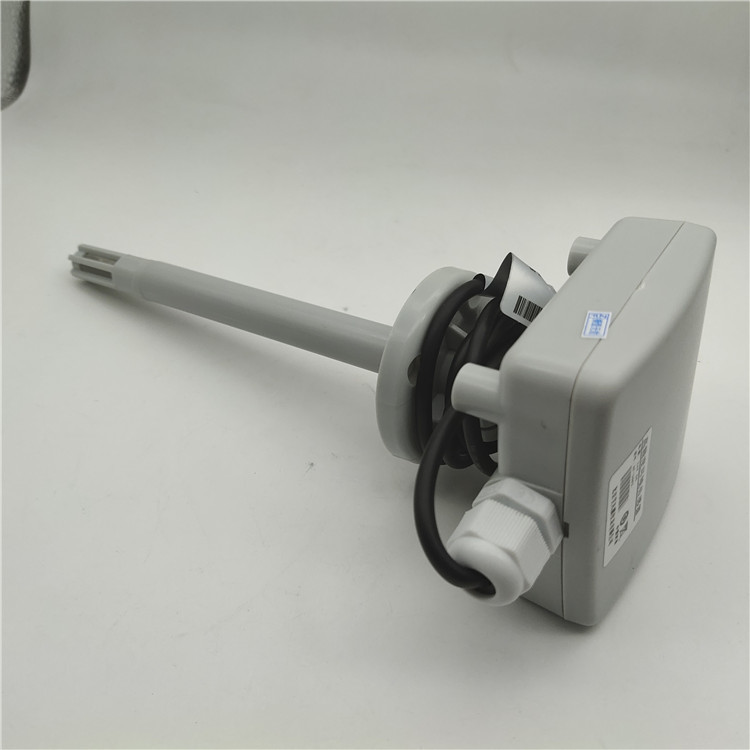

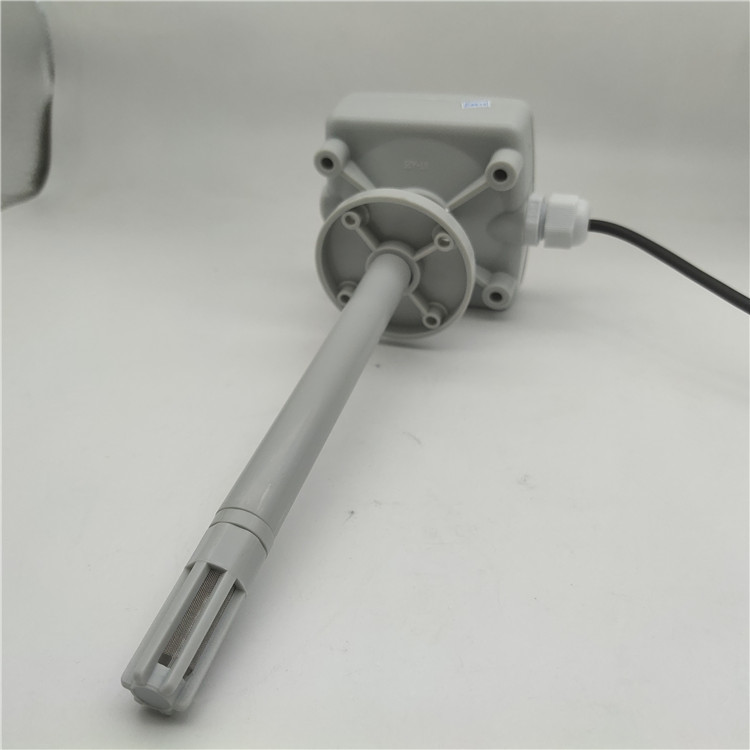

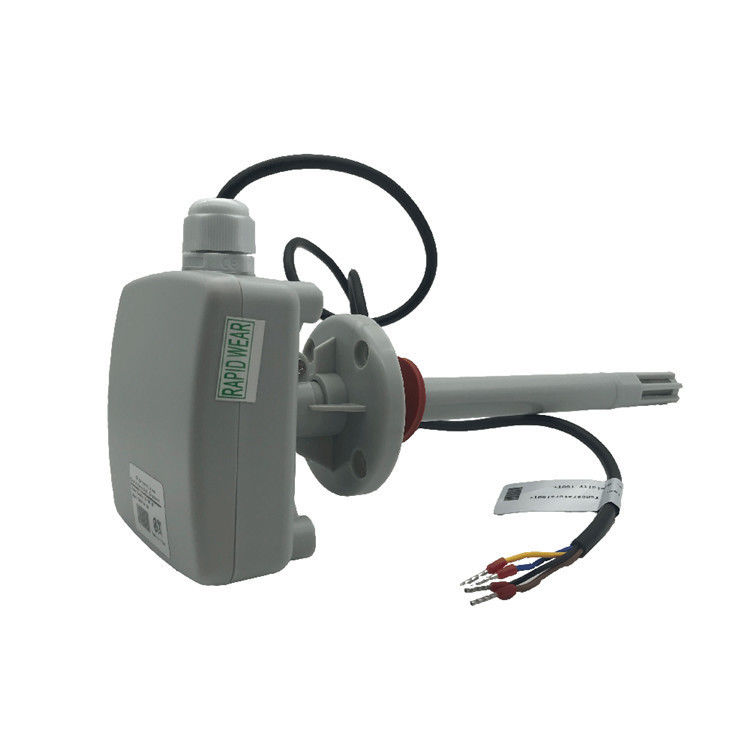

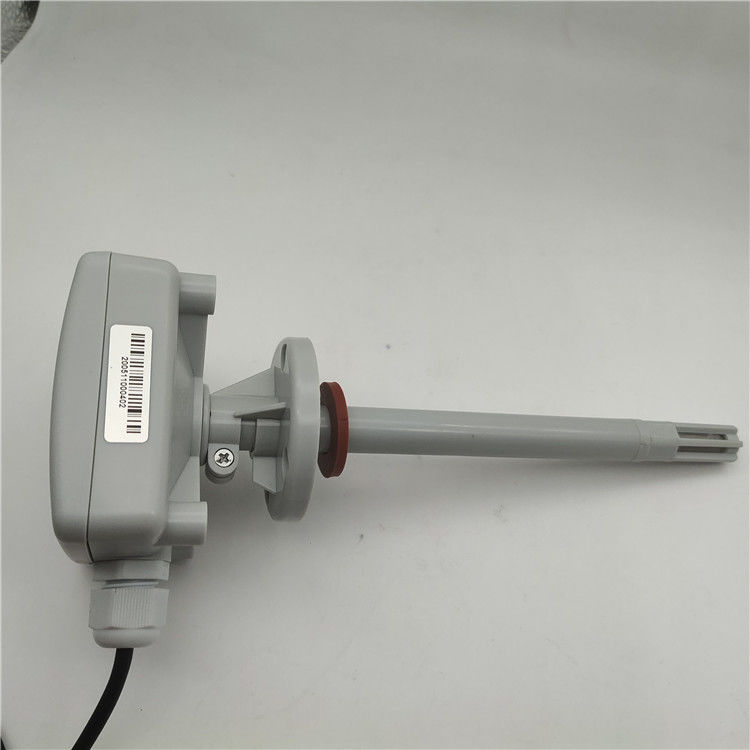

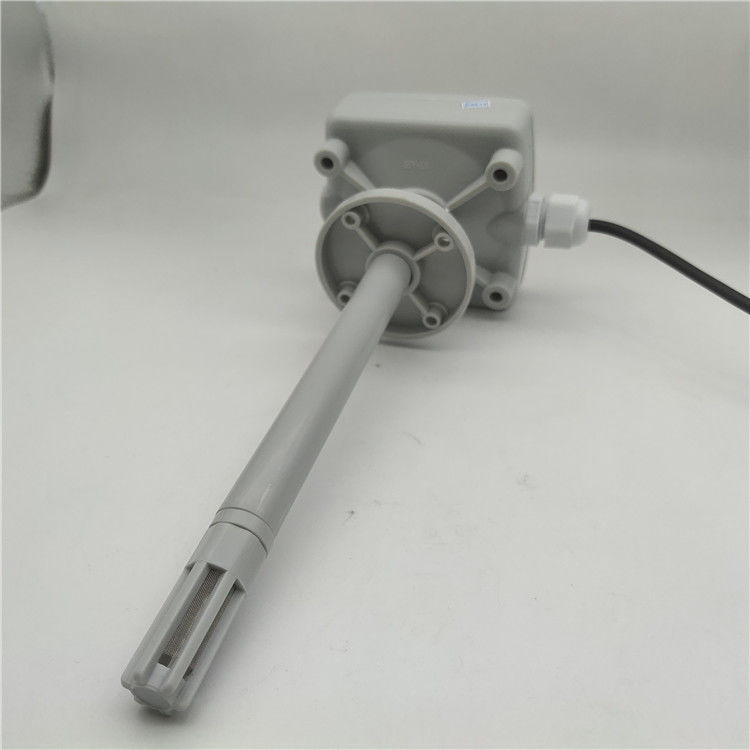

Product name | Temperature and humidity transmitter | ||
Model | 3005-TH-120 | ||
Allowable maximum air velocity | 16 m/s | ||

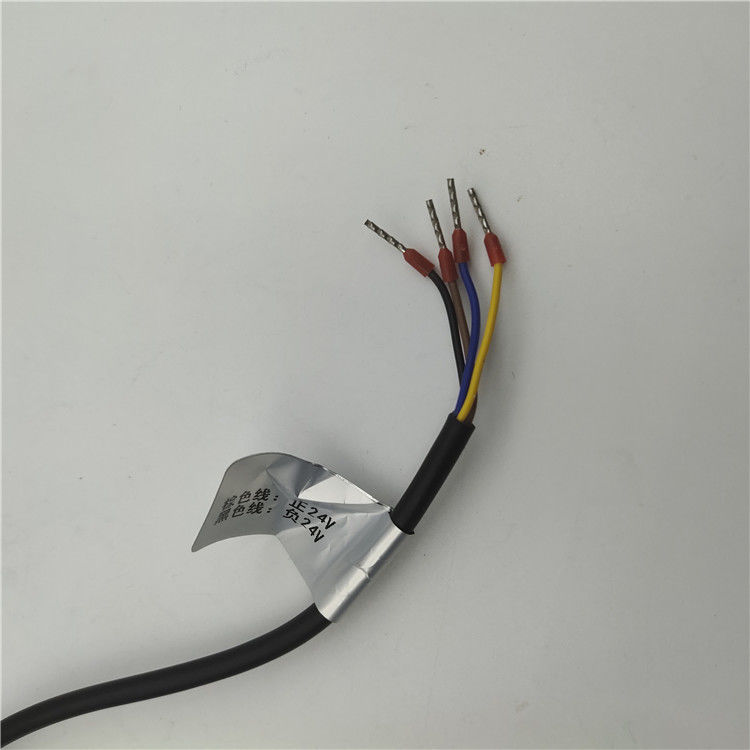

Electrical connections | 1x2.5 mm2 / 2x1.5 mm2 (Terminal capacity),M12x1.5mm (Waterproof connector) | ||
Output signal | Temperature | 4-20mA, 0-10V | |
Humidity | 4-20mA, 0-10V (load≤500 ohm) | ||
Voltage | Working voltage | 12-35VDC | |
Power consumption | ≤1V A(typical) | ||
Temperature | Transmission range | 0-50℃ (factory default) or customized | |
Accuracy | ±0.3℃ (Full-scale average) | ||
Long-term stability | <0.04℃/year | ||
Relative humidity | Range | 0-100% RH | |
Accuracy | ±3% RH (typical, at 25℃) | ||
Long-term stability | <0.5% RH/year | ||
Working environment | Working temperature | -40~80℃ | |
Working humidity | 0-99% RH (no condensation) | ||
Storage environment | Storage temperature | -40~80℃ | |
Storage humidity | 20-60% RH | ||
