Warranty: | 12 Month | Customized Support: | OEM, ODM, OBM |
---|---|---|---|
Temperature: | 4-20mA | Humidity: | 4-20mA |
Temperature: | 0-10V | Working Voltage: | DC12 ~ 35V |
Allowable Maximum Air Flow Speed:: | 16 M / S | Temperature Transmitting Range:: | 0 ~ 50 ℃ |
Range:: | 0 ~ 100% RH | Accuracy:: | ± 3% RH |
Long Term Stability:: | < 0.5% RH | Storage Temperature:: | - 40 ~ 80 ℃ |

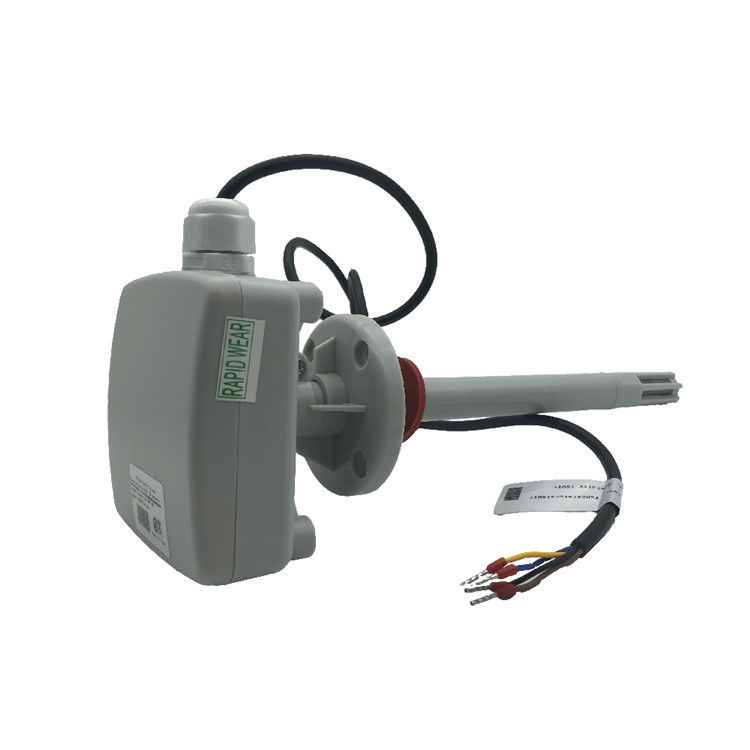

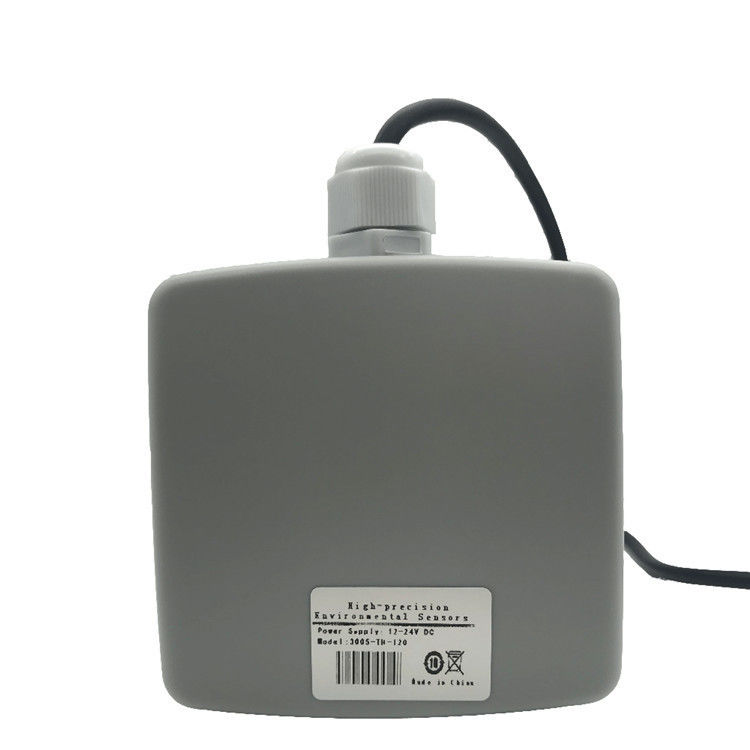

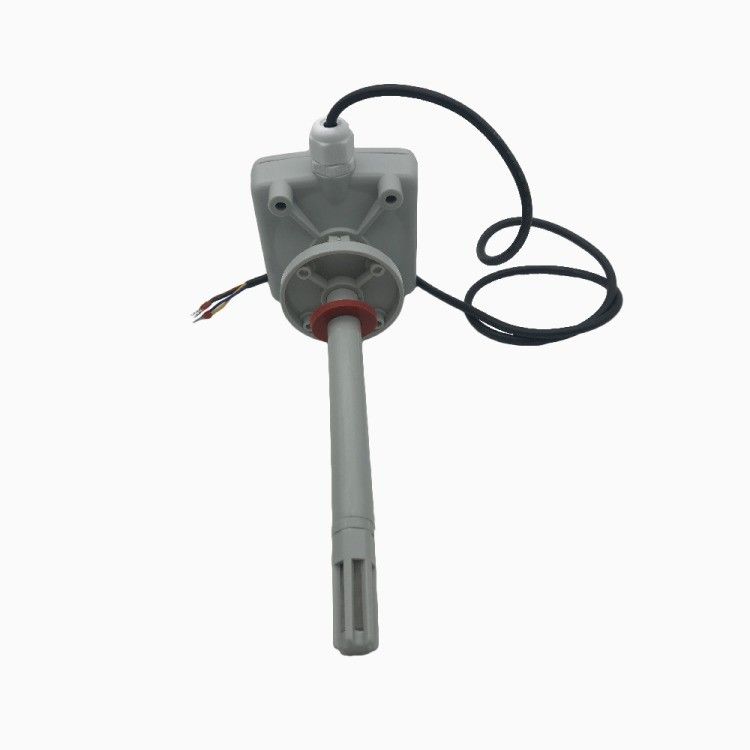

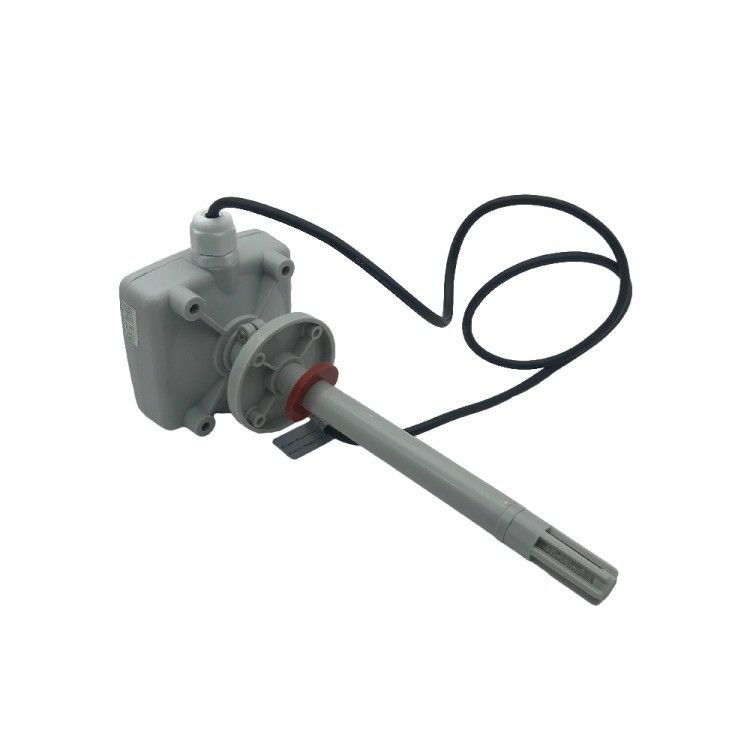

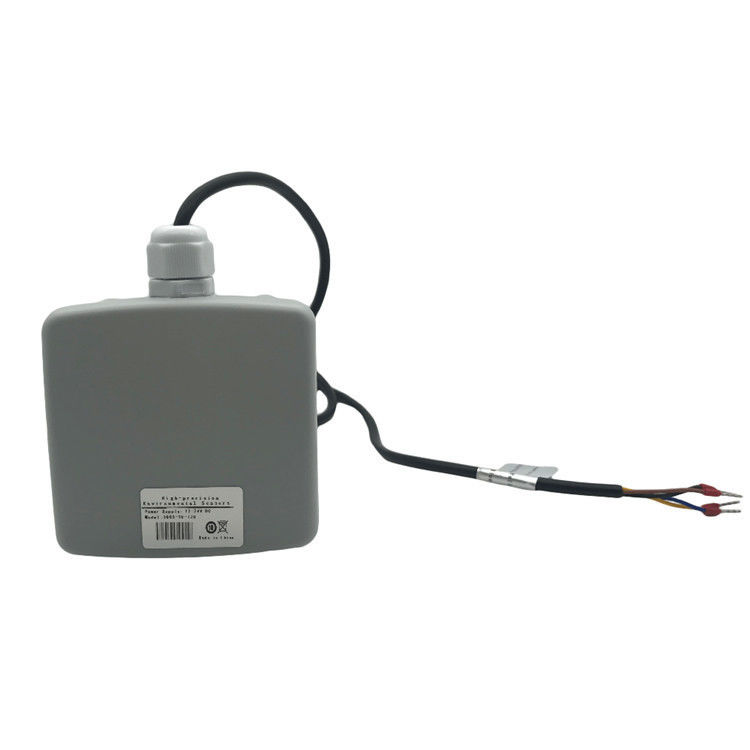

Product name | Temperature and humidity transmitter | ||
Model NO. | 3005-TH-120 | ||
Allowable maximum air velocity | 16m/s | ||
Electrical connections | 1x2.5 mm2 / 2x1.5 mm2 (Terminal capacity),M12x1.5mm (Waterproof connector) | ||
Output signal | Temperature | 4-20mA, 0-10V | |
Humidity | 4-20mA, 0-10V (load≤500 ohm) | ||
Voltage | Working voltage | 12-35V DC | |
Power consumption | ≤1V A (typical) | ||
Temperature | Transmission range | 0-50℃ (factory default) or customzied | |
Accuracy | ±0.3℃ (full-scale average) | ||
Long-term stability | <0.04℃/year | ||
Relative humidity | Range | 0-100% RH | |
Accuracy | ±3% RH (typical, at 25℃) | ||
Long-term stability | <0.5% RH/year | ||
Working environment | Temperature | -40~80℃ | |
Humidity | 0-99% RH (no condensation) | ||
Storage environment | Temperature | -40~80℃ | |
Humidity | 20~60% RH |
