4" 120mm Mini Gas or Air Type Differential Pressure Gauge 0 60Pa ±2% FS Accuracy at 21C

Basic Information
Place of Origin: Beijing, China
Brand Name: IVANPER
Model Number: A2000
Minimum Order Quantity: 5 units
Price: $28.00/units 5-49 units
Packaging Details: carton
Supply Ability: 10000 Piece/Pieces per Month
Detail Information
Warranty: 12 Month Customized Support: OEM, ODM
Product Name: Mechanical Pointer Differential Pressure Gauge Application: Air And Non-combustible, Compatible Gases
Accuracy: ±2% FS At 21℃ Operating Temperature: -7~60℃
Pressure Limit: -68~100KPa Overpressure: Relief Plug Opens At Approximately 25Psig (172KPa)
Process Connections: 1/8" Female NPT Dial Size: 4" Diameter
Port: Tianjin

Product Description

Product Description

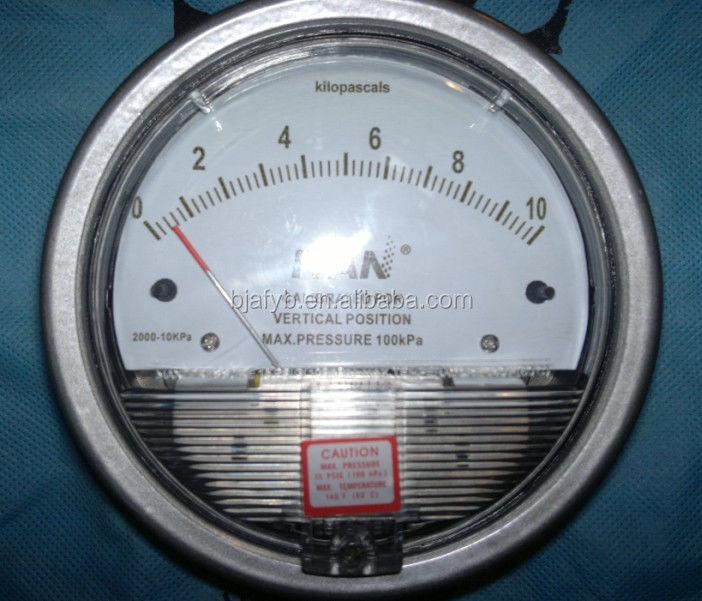

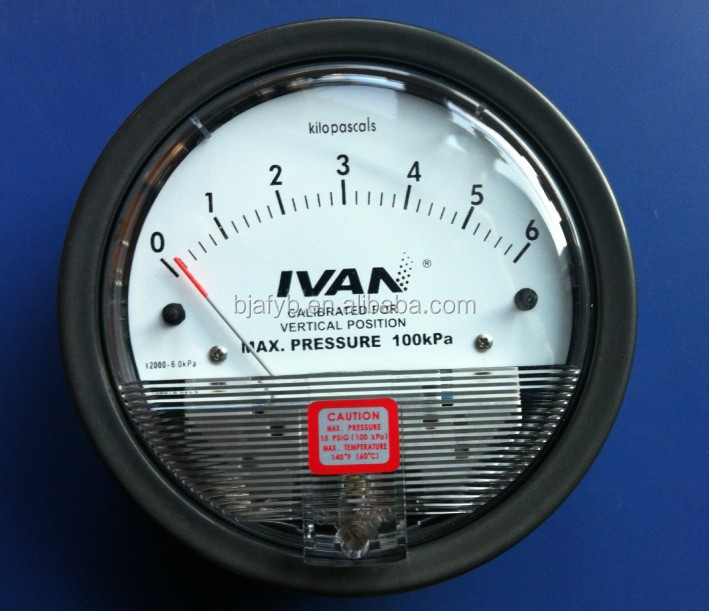

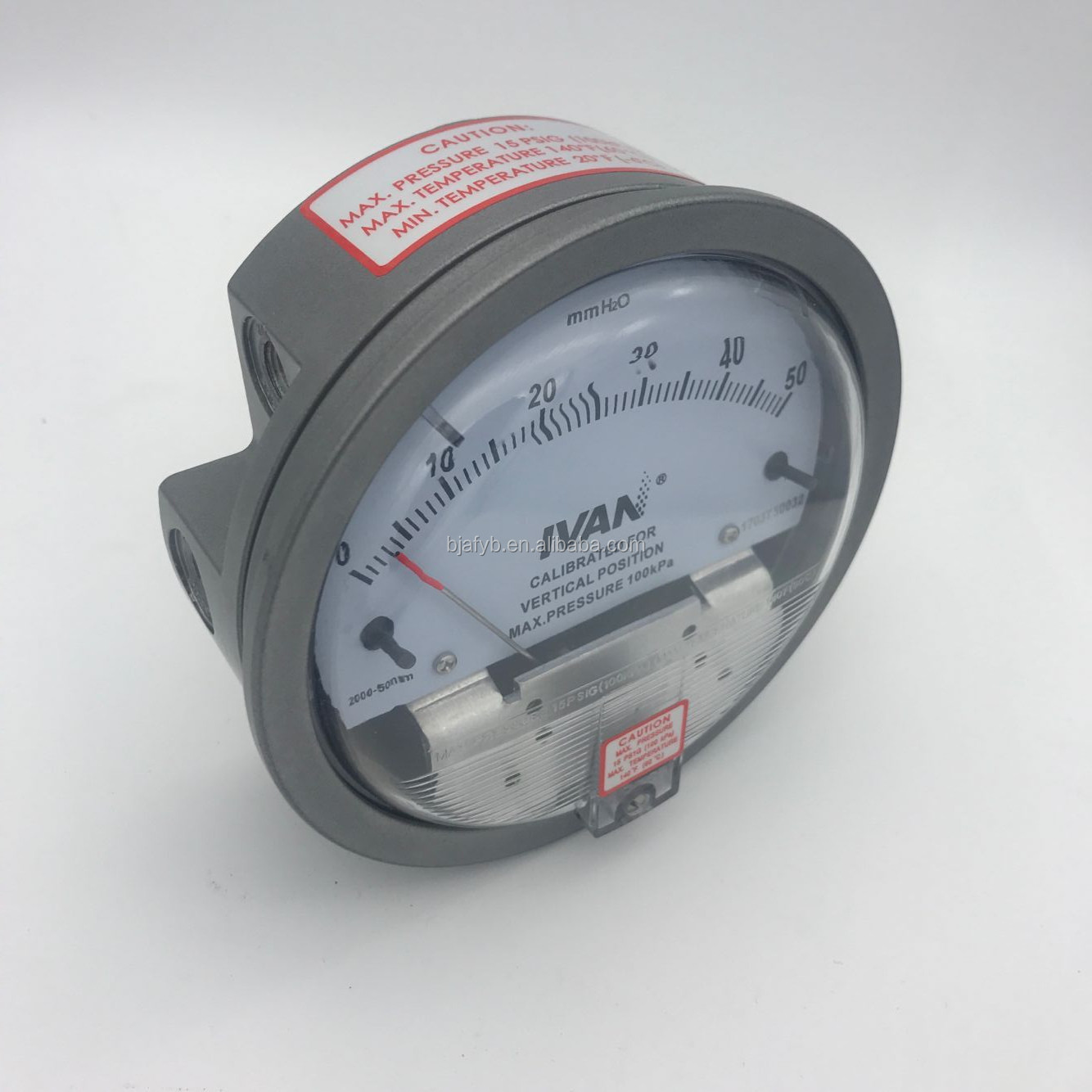

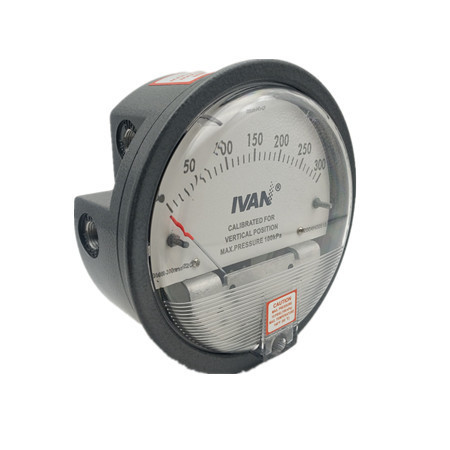

4" (120mm)Mini Gas or Air Type Differential Pressure Gauge 0-60Pa
4" 120mm Mini Gas or Air Type Differential Pressure Gauge 0 60Pa ±2% FS Accuracy at 21C 0
Brand Name:

J&H
Rated pressure::

68~103Kpa
Item:
Differential Pressure Gauge
Overpressure::
172KPa
Type::

120mm
Supply Ability:
10000 Piece/Pieces per Month
4" 120mm Mini Gas or Air Type Differential Pressure Gauge 0 60Pa ±2% FS Accuracy at 21C 1
Direction for use
使用说明
he Air conditioning differential pressure gauge used to measure fan and blower pressure, filter resistance, wind speed, furnace
pressure, orifice plate differential pressure, bubbles water level and liquid amplifier or hydraulic system pressure. It using
frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative
(vacuum) or differential. No wear, hysteresis and clearance. Not filling, vaporization and freezing. This design has
anti-vibration, anti-shake and high overpressure capability, you can guarantee access to high precision.
  • Specification:
1) Medium: air and non-combustible, compatible gases (optional gas)

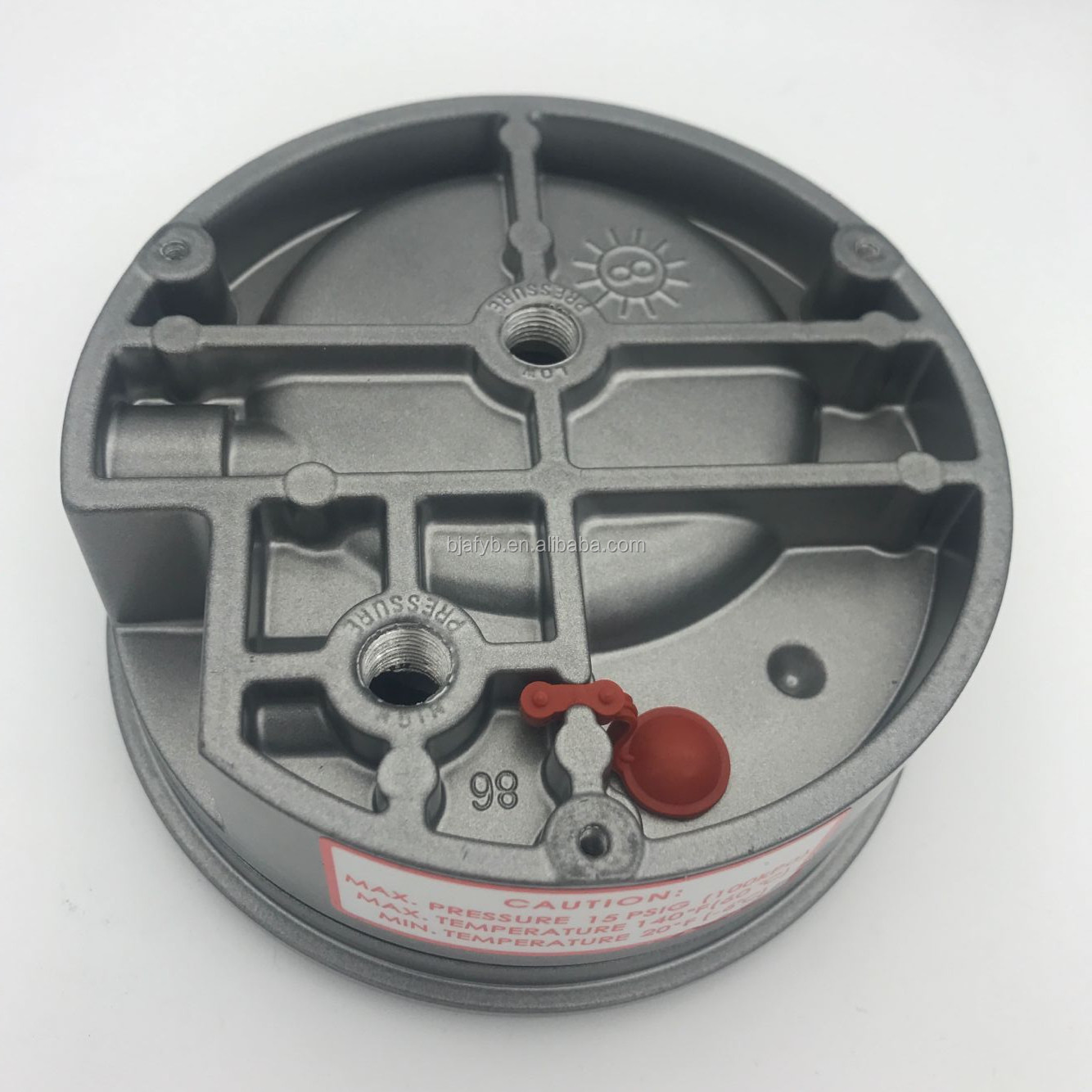

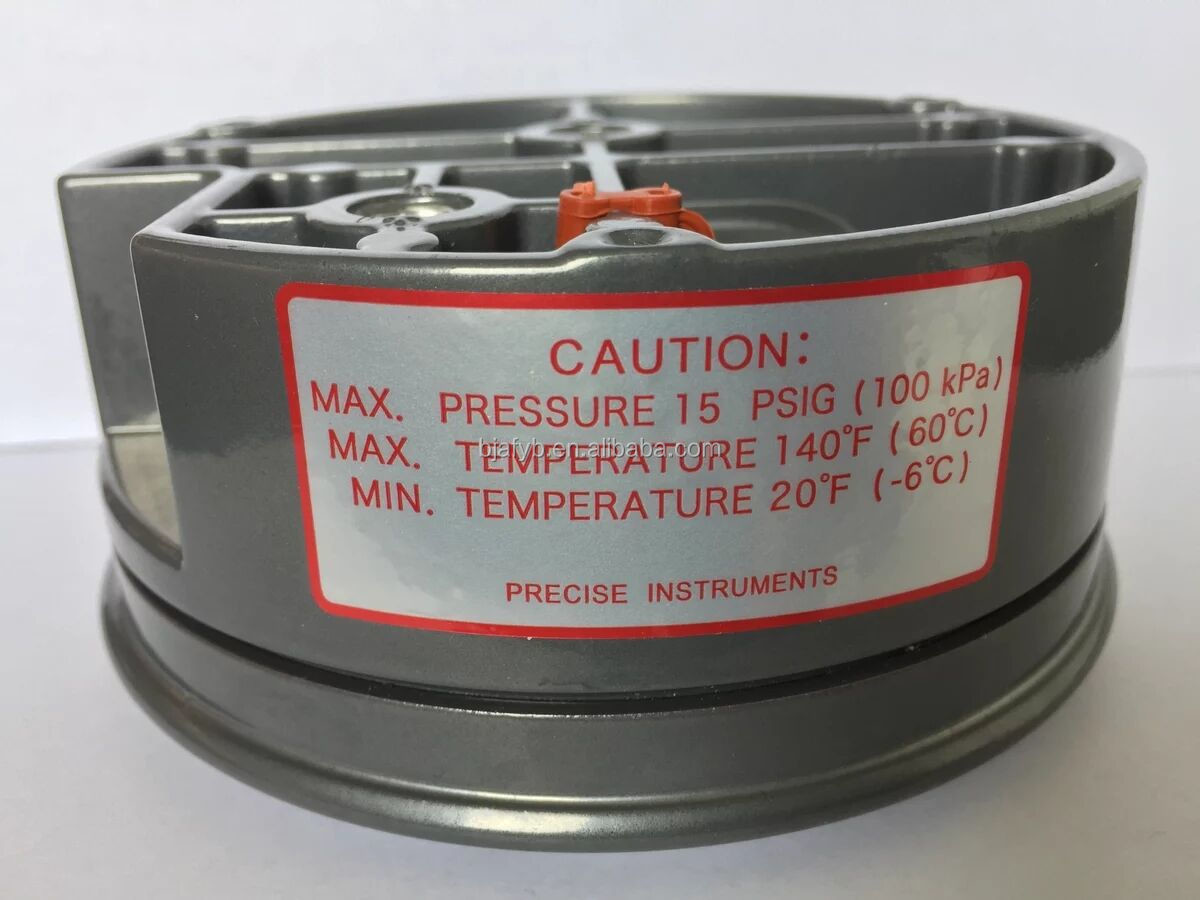

2 )Housing: cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test
3) Accuracy: 2% FS (mm units, and the range with the corresponding pa)
4) Pressure range:. -20Hg To 15 psig (-0.677 bar to 1.034 bar)    5) Temperature range: 20 to 140 ° F (-6.67 to 60 ° C)       6 )Hole size: 114mm   7) Mounting Orientation: Diaphragm in vertical    8) Connections: same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back   9) Weight: 500g / only
4" 120mm Mini Gas or Air Type Differential Pressure Gauge 0 60Pa ±2% FS Accuracy at 21C 2
Company Introduction
Ivanpeng specializes in operating pressure, temperature and humidity, wind speed, liquid level, flow and other intelligent instruments and sensors in stable and reliable operation in the industrial site. Each instrument has standard signal output and high stability. Wind speed, temperature and humidity and 2000 series micro differential pressure meters have been used as GMP standard products in the biological pharmaceutical and food industry.
Range
0-30PA, ± 30PA,0-60PA, ± 60PA, 0-100PA, 0-125PA, 0-250PA, 0-300PA,
0-500PA,0-750PA,0-1KPA,0-1.5KPA,0-2KPA,0-2.5KPA,0-3KPA,0-5KPA,0-10KPA
Measured media
Non-corrosive gas or air

4" 120mm Mini Gas or Air Type Differential Pressure Gauge 0 60Pa ±2% FS Accuracy at 21C 3
4" 120mm Mini Gas or Air Type Differential Pressure Gauge 0 60Pa ±2% FS Accuracy at 21C 4
4" 120mm Mini Gas or Air Type Differential Pressure Gauge 0 60Pa ±2% FS Accuracy at 21C 5

Our Services & Strength

Ivanpeng company has a relatively complete product line, the products involve high-tech industrial automation process instruments such as pressure, temperature, humidity, flow, level, water quality analysis, testing instruments, etc.; the business fields cover HVAC, biopharmaceutical, machinery manufacturing, power electronics, petrochemical, aerospace, shipbuilding, automobile and other industries. The company has a relatively complete R & D platform, product manufacturing platform, product sales and after-sales service platform BeijingAiFanpengInstrumentCo.,Ltd.
FAQ
1)The quality of the products
Our pressure gauges all are 100% inspection , we also have passed ISO9001:2008 and CE certificated.
2)Price
We can provide our high quality products with reasonable price.
3) OEM services
In the past years, we have many OEM orders from very famous company in USA and European market .
4) Delivery
Our company provides in-time delivery with , always satisfy customers need
5) Service
Our company provide best after-sale service all the time , for our goal is a long trade cooperation term.
6)Reputation
Our factory have ten years experiences and have already gaining the best reputation and response from the customers from all over
the world.
