Detail Information

Warranty:	12 Month	Customized Support:	OEM, ODM, OBM
Product Name:	Digital Pressure Gauge	Working Pressure:	1, 2, 5KPa
Display:	LCD Display	Analog Output:	4-20mA (two Wires)
Output Load:	≤250Ω	Control Output:	3A/30VDC, 2A/220VAC
Accuracy:	±1.0% FS, Optional ±0.5% FS	Long-term Stability:	±0.5% FS/year
Power Supply:	22-26VDC	IP Class:	IP65

Product Description

Specification

Packing & Delivery

cable or screw terminals Accuracy: ±1.0%
FS(±2.0%FS@25Pa range) Long term stability: ±0.5%FS /Year
Thermal effect: ＜0.05%FS/°C(Zero), ＜0.08%FS/°C(FS)
Response time: 0.5-30s
Power: 16-28V AC/ DC, optional 85-265V AC
Weight: 340g
Approval: CE

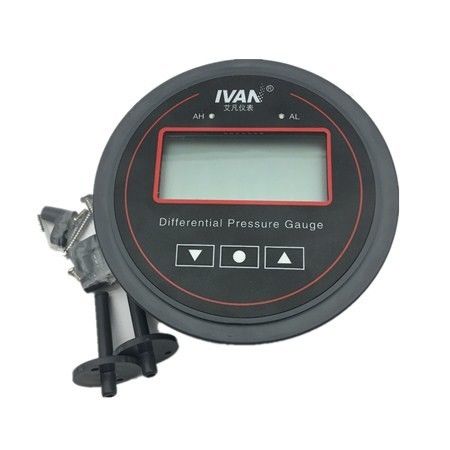

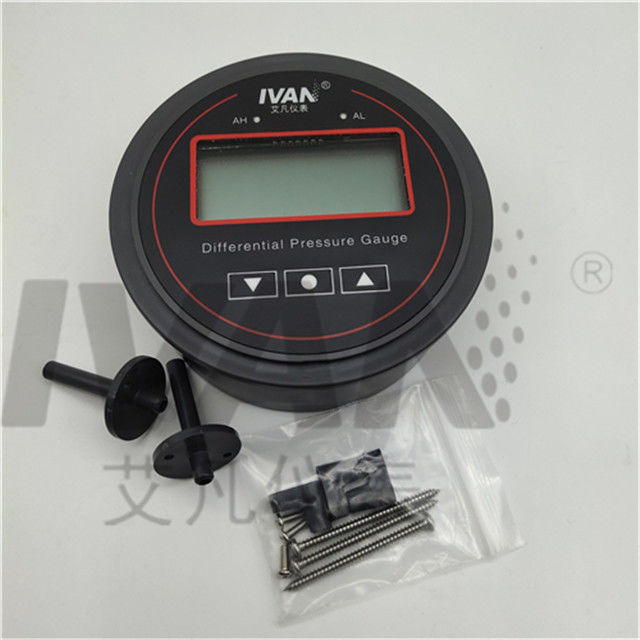

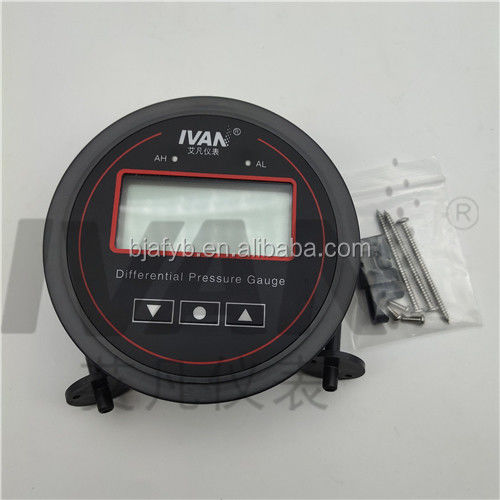

Accessory: A-S0 is standard including 2m/5mm ID tube, 3
pairs of screws and brackets. Options are A-S1, A-S2 and
A-S7-X. They can be used for surface, panel or flush mount
and should be ordered separately. See details in Accessorie

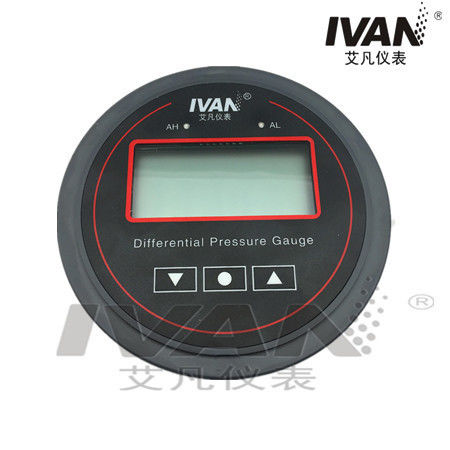

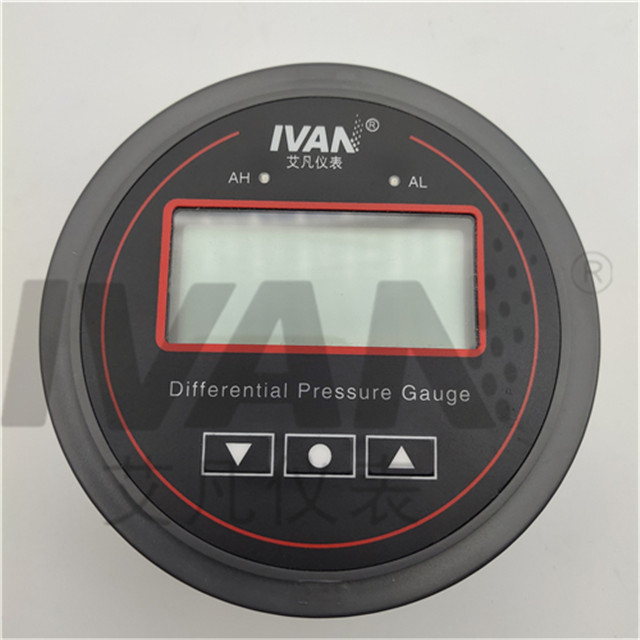

Apply high accuracy MEMS sensor and digital technologies,
can measure positive,negative or differential pressure. It can
replace most of the traditional pointer mechanical gauges.
 It combines the gauge and two relays for control function
 It can measure and control system pressure of fan, blower,
filter, furnace draft and orifice plate and can apply to various
clean room, biological safety cabinet, clean bench, ducts
collection, medical or pharmaceutical machine, etc.
 Suitable for surface, panel or flush mount
 Multiple ranges and engineering unitsselectable
 No any movable parts, no any effect onvibration
 The accuracy is up to ±1% FS and the range can be 25pa
 Function keys: zero calibrate, units select, relay set,etc.
 Optional arch LED display for output and alarm

Medium: non-combustible, non-corrosive air, not sensitive to
moisture, dust, condensation and oil
Medium Temp.: 0-60°C
Materials: cast aluminum housing and PC plate
Work Environment: -20~70°C
Compensated Temp.: 0-50°C
Work pressure: 1, 2, 5 or 10Kpa for different ranges
overload 5xFS, burst 10xFS
Dimension: see diagram
Connection: 1/8” ID tubing, two pairs (on left side and back)
Display: 4 bits 0.8” red LED
Relay output: 2×SPST, 3A×30VDC/250VAC or 1×Buzzer

Place of Origin:	Beijing, China
Brand Name:	IVANPER
Model Number:	F3S3

Minimum Order Quantity:	10 units
Price:	$125.00 - $135.00/units
Packaging Details:	carton/wooden box
Supply Ability:	2000 Unit/Units per Month
