| Place of Origin: | China |
|---|---|
| Brand Name: | IVAN |
| Model Number: | v2300 |
| Minimum Order Quantity: | 10 units |
| Price: | $25.00/units 10-49 units |
| Packaging Details: | Carton |
| Supply Ability: | 2000 Piece/Pieces per Month |
| Warranty: | 12 Months | Customized Support: | OEM, ODM |
|---|---|---|---|
| Product Name: | Differential Pressure Gauge | Pressure Range: | 0.1~0~100Mpa |
| Material: | Iron | Connection: | 1/8" |
| Application: | HVAC | Type: | Gas Pressure Manometer |
| Port: | Tianjin |

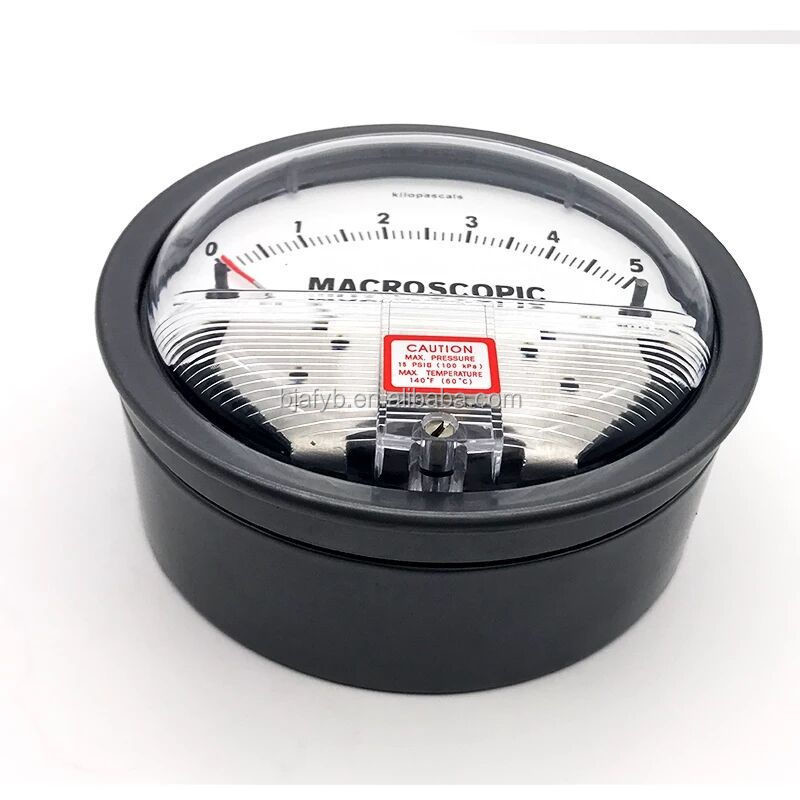

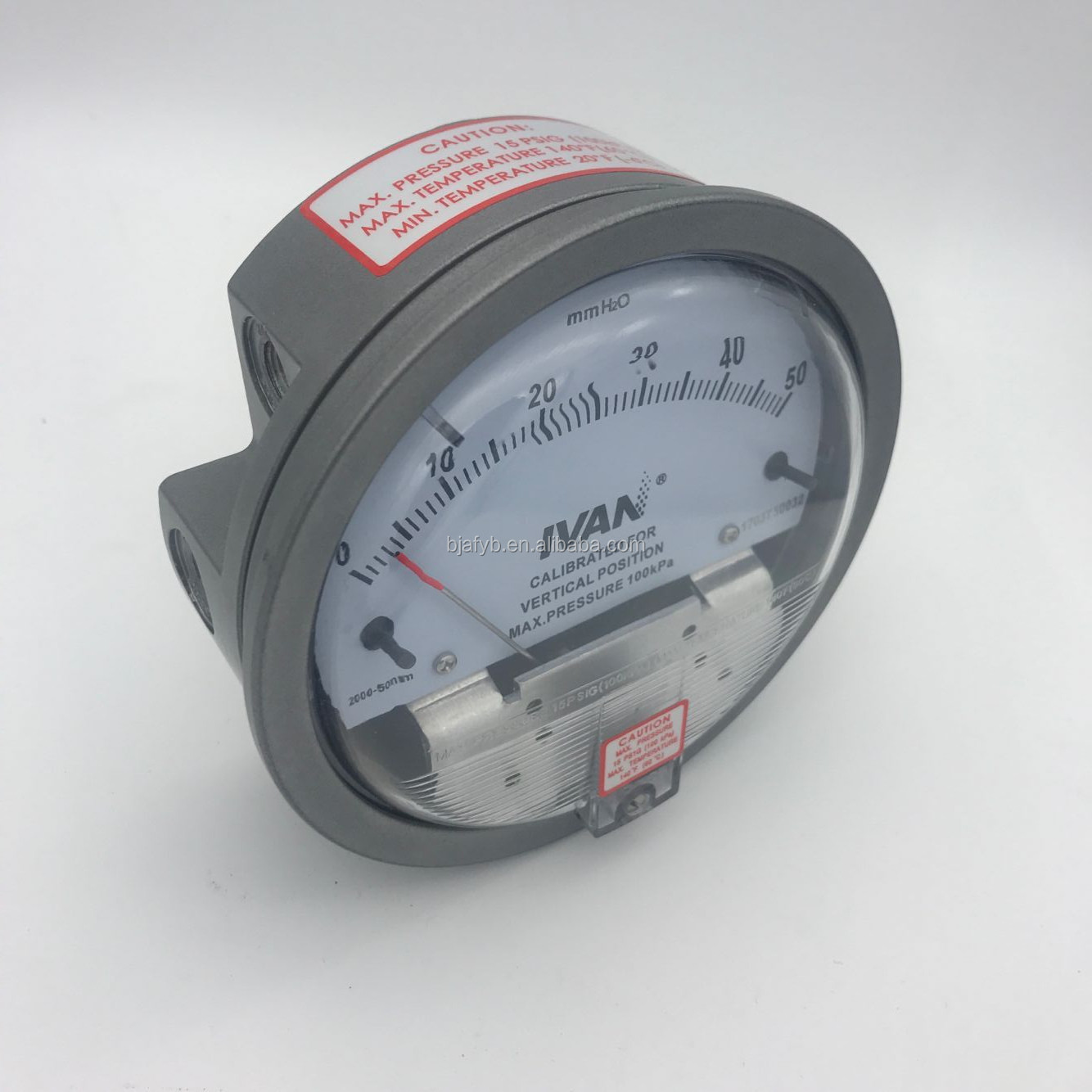

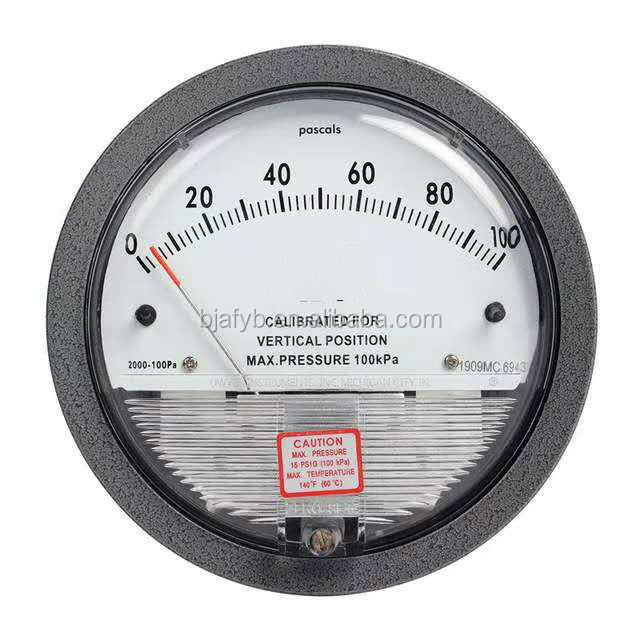

Specification Micro pressure manometer differential pressure gauge
1 Medium: air and non-combustible, compatible gases (optional gas)

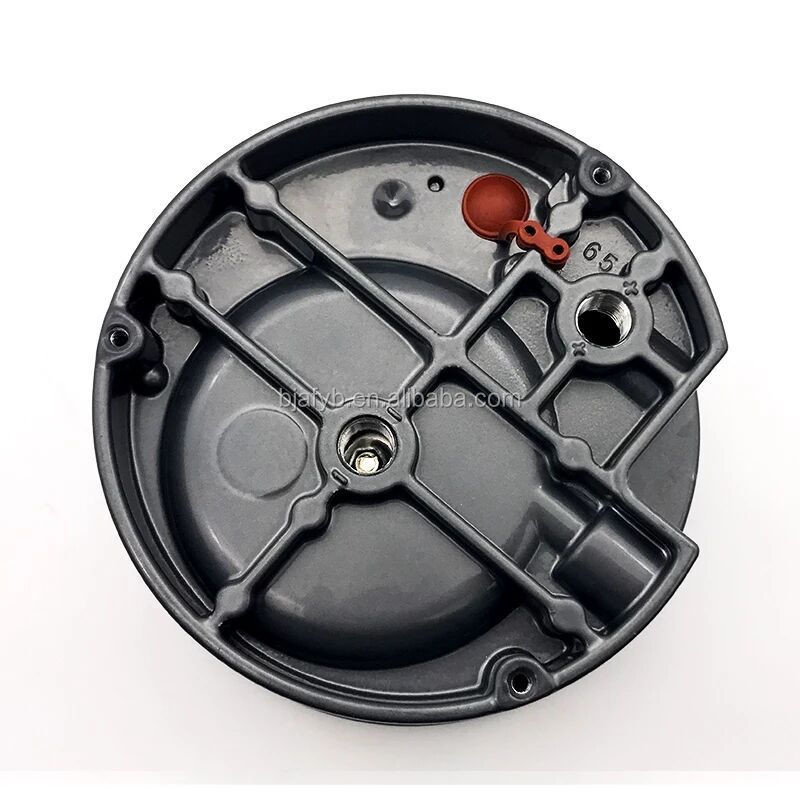

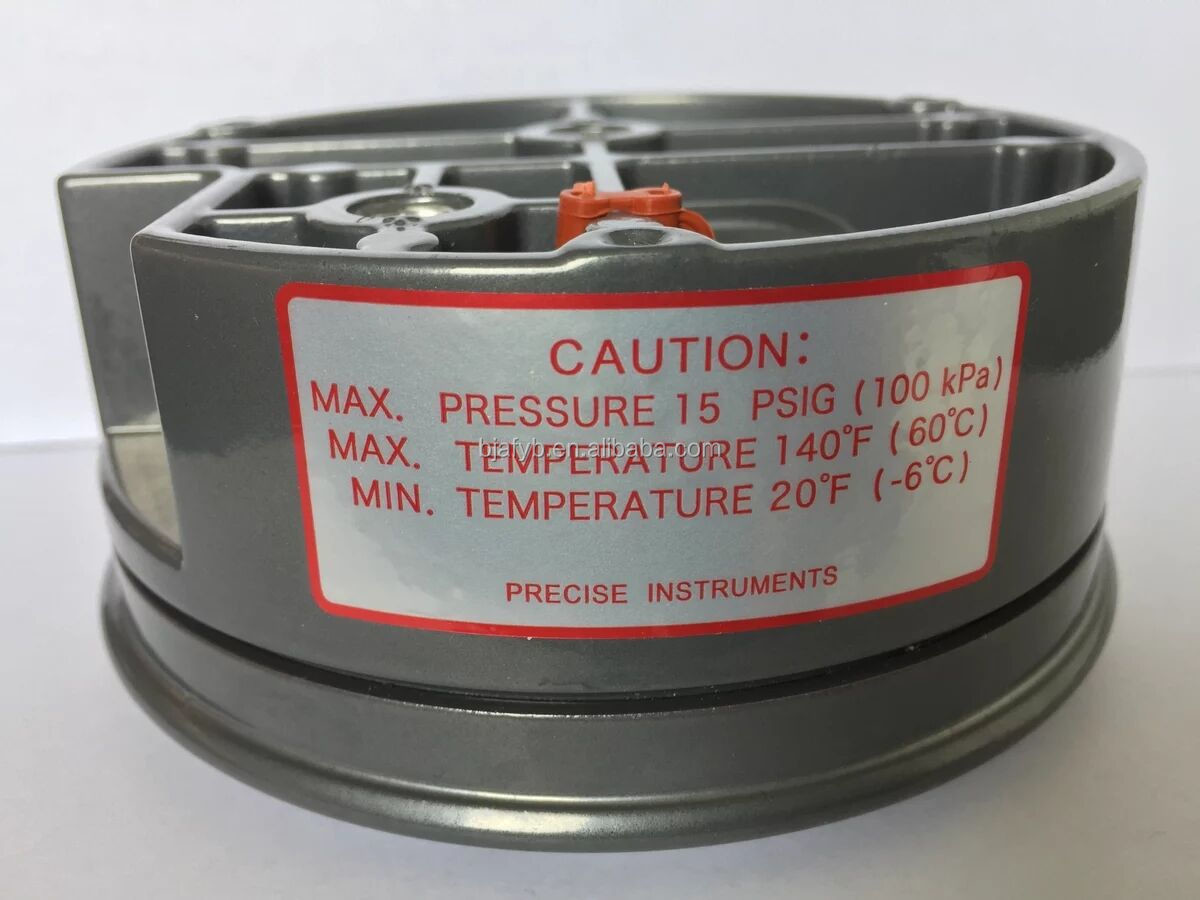

2 Housing: cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test
3 Accuracy: 2% FS (mm units, and the range with the corresponding pa)
4 Pressure range:. -20Hg To 15 psig (-0.677 bar to 1.034 bar)
5 Temperature range: 20 to 140 ° F (-6.67 to 60 ° C)
6 Hole size: 114mm
7 Mounting Orientation: Diaphragm in vertical
8 Connections: same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back
9 Weight: 500g / only

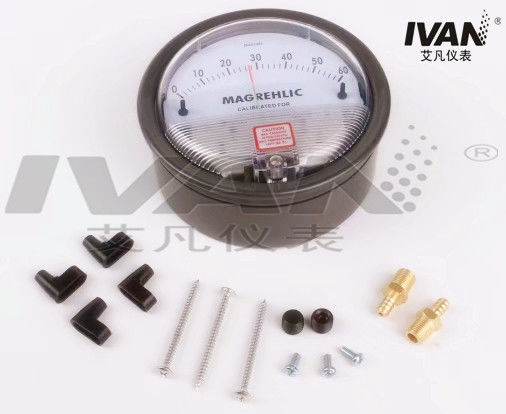

10 Standard accessories: two 1/8 "NPT threaded connectors for high and low pressure fittings can be connected with a rubber tube; two 1/8" NPT plug for blocking the remaining two high and low pressure ports; three a threaded countersunk mounting coupling (mounting ring, according to buckle holder for three interfaces to replace MP and count on attachments HP)
Applications Micro pressure manometer differential pressure gauge
Specifications of differential pressure gauge
| Parameter | |
| Ambient temperature | -20 ~ 80°C |
| Medium temperature | -20 ~ 500°C |
| Pressure port | 1/8″ taper pipe thread |
| Shell material | aluminum alloy |
| Accuracy | ±2.5% (Default)(Customizable) |
| Standard fittings | tap, hose, bracket |
| Rated pressure | -68 ~ 103KPa |
| Specifications | |||
| 0 – 30Pa | 0 – 400Pa | 0 – 2.5KPa | 0 – 30KPa |
| 0 – 60Pa | 0 – 500Pa | 0 – 3.0KPa | -15~0~15Pa |
| 0 – 100Pa | 0 – 600Pa | 0 – 5.0KPa | -30~0~30Pa |
| 0 – 125Pa | 0 – 750Pa | 0 – 8.0KPa | -60~0~60Pa |
| 0 – 200Pa | 0 – 800Pa | 0 – 10KPa | -125~0~125Pa |
| 0 – 250Pa | 0 – 1KPa | 0 – 15KPa | -250~0~250Pa |
| 0 – 300Pa | 0 – 2KPa | 0 – 25KPa | -500~0~500Pa |
| Customizable | -1~0~1KPa | -3~0~3KPa | -5~0~5KPa |
| -2~0~2KPa | -4~0~4KPa | -10~0~10KPa | |
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
