| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | IVANPER |
| Model Number: | LLT101 |
| Price: | $70.00 - $200.00/units |

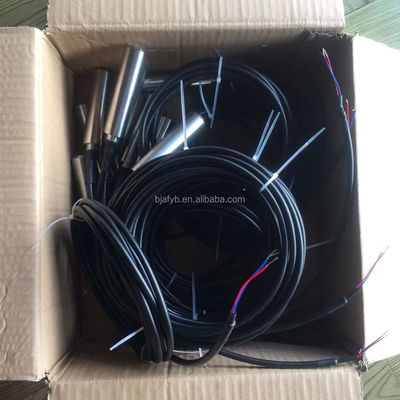

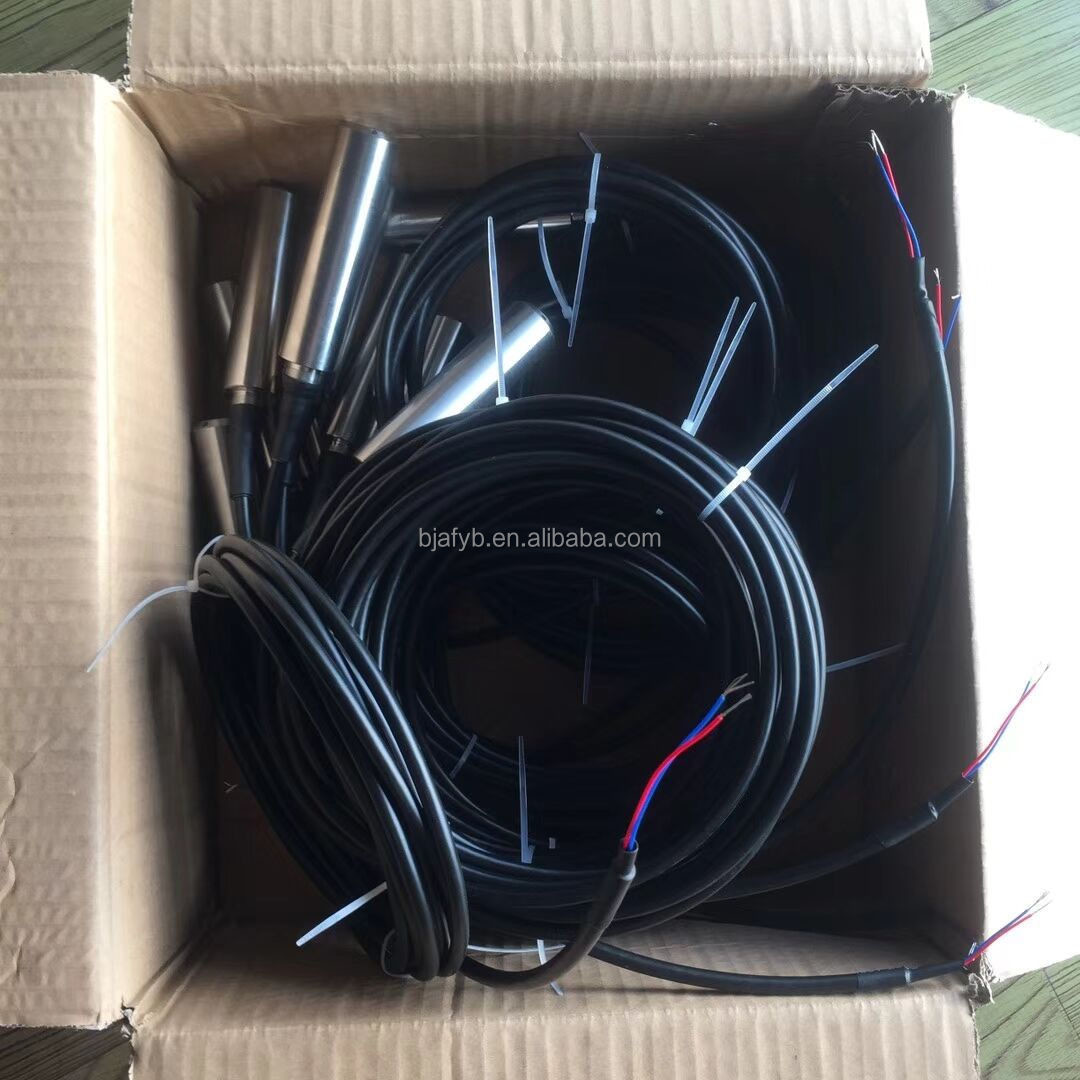

| Packaging Details: | carton |
| Supply Ability: | 500 Unit/Units per Week |
| Grade: | Industrial | Warranty: | 12 Month |
|---|---|---|---|

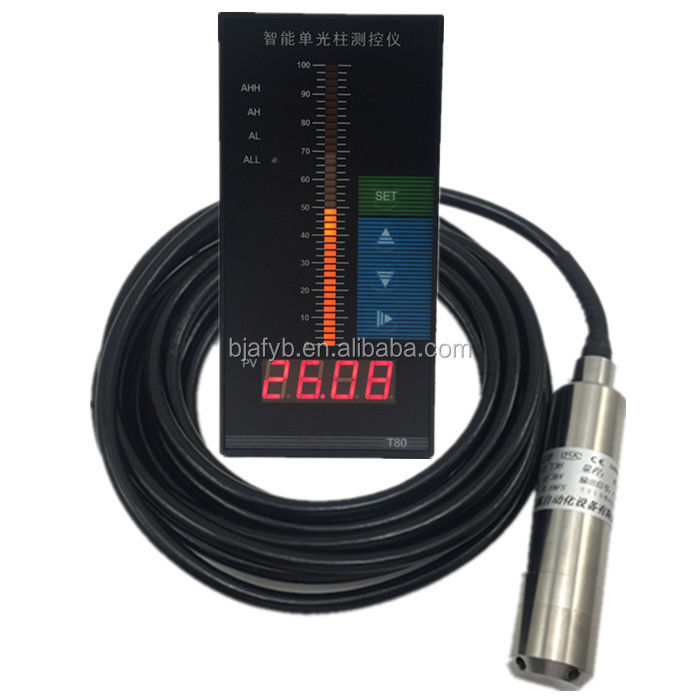

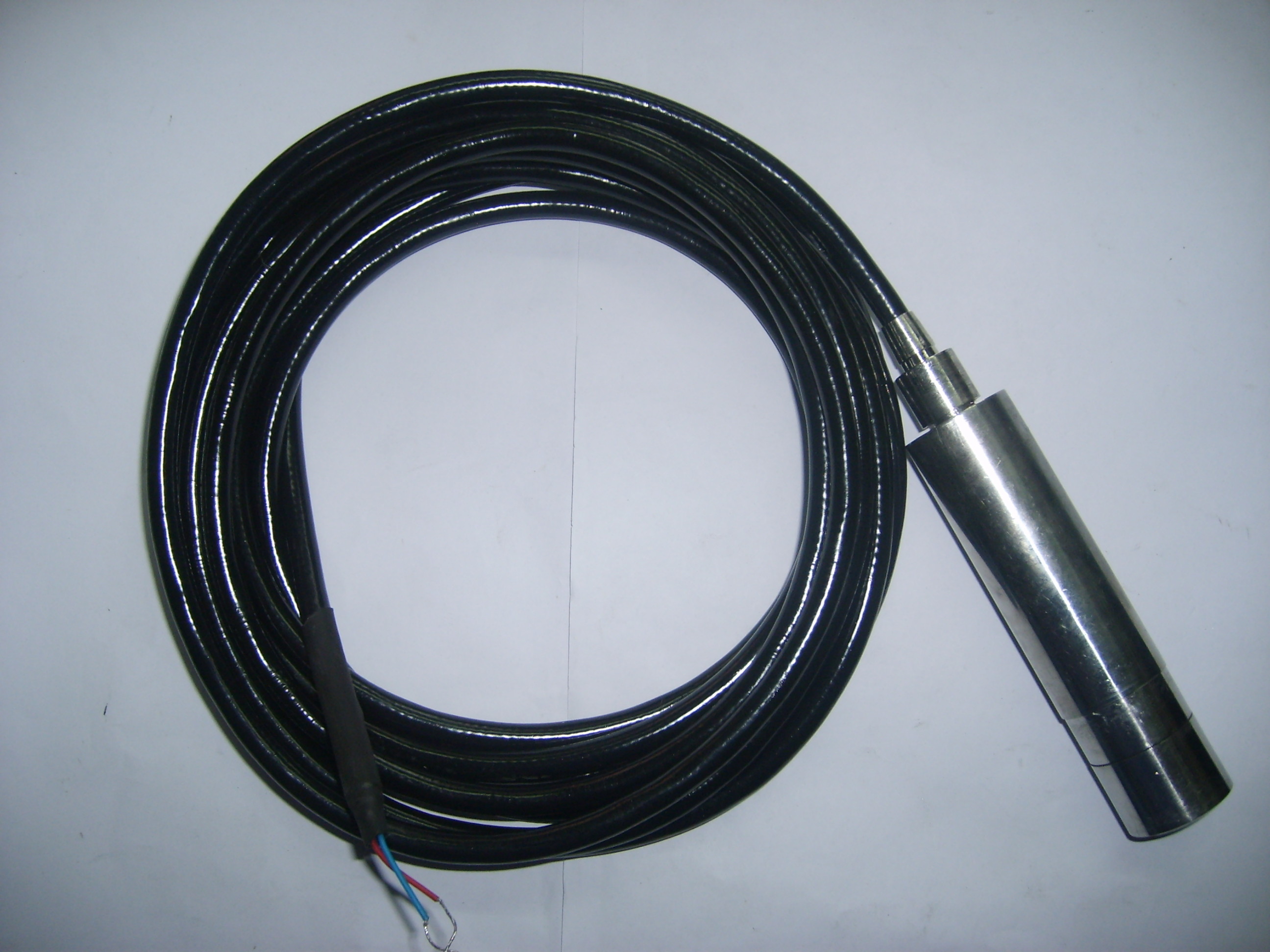

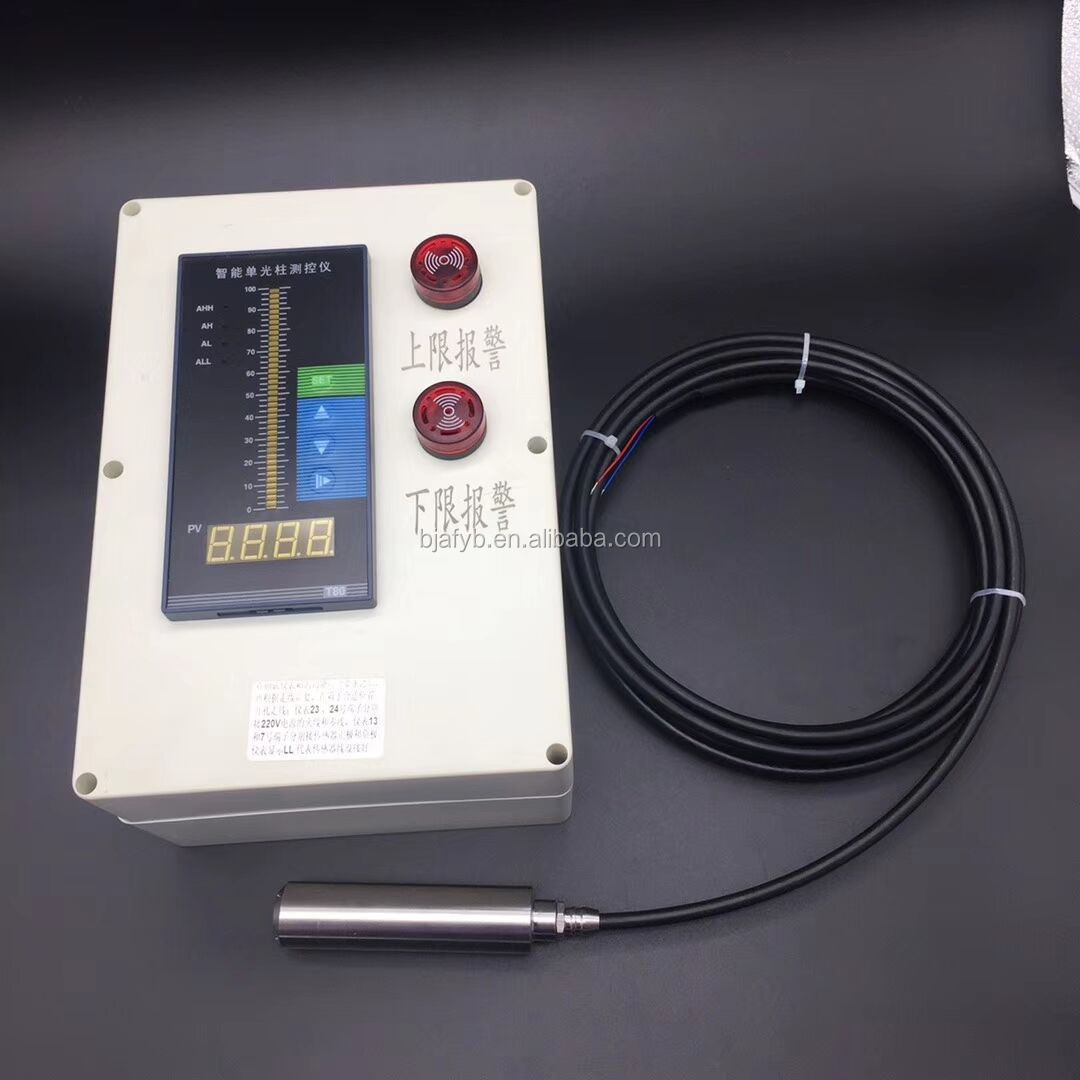

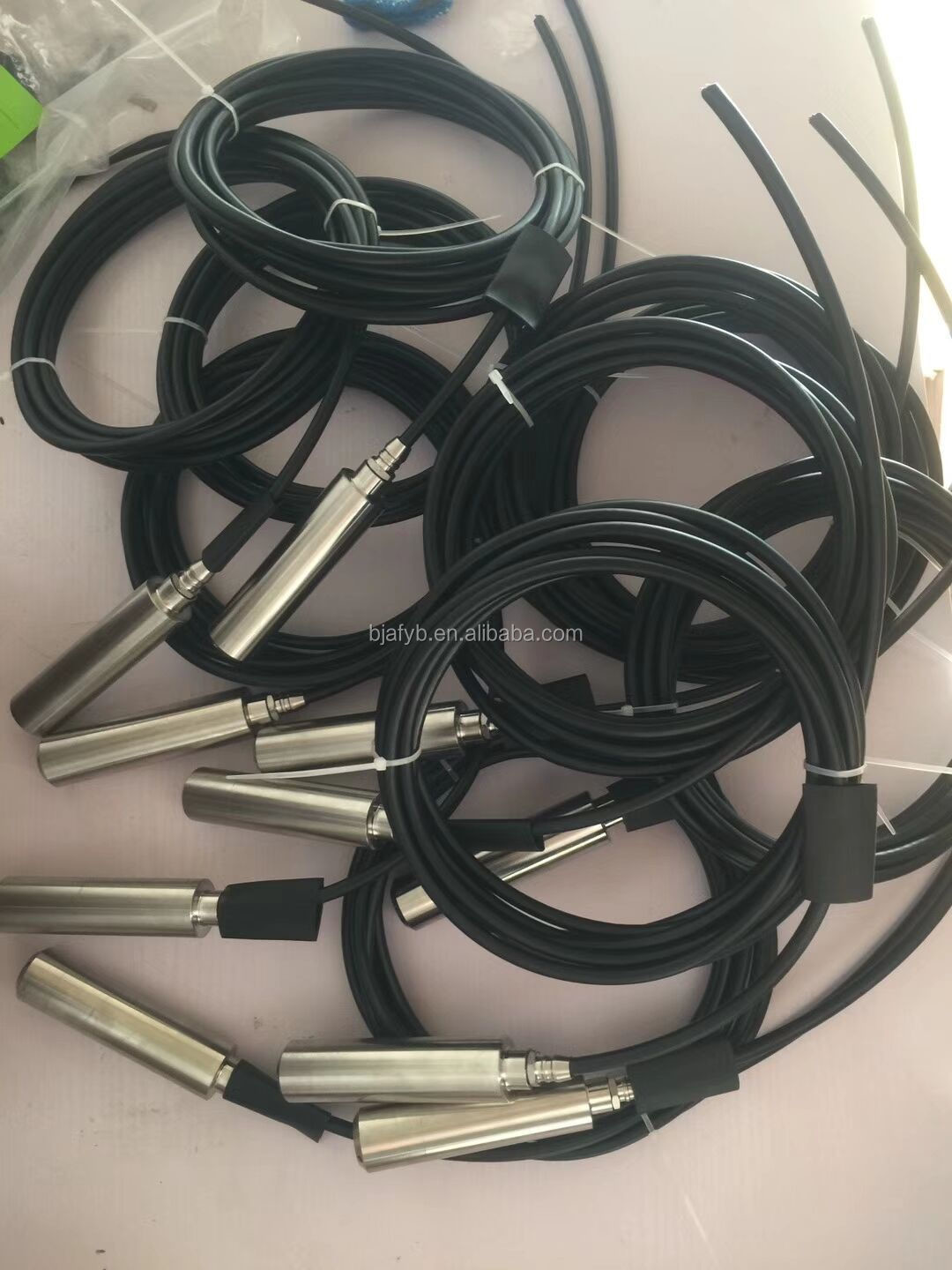

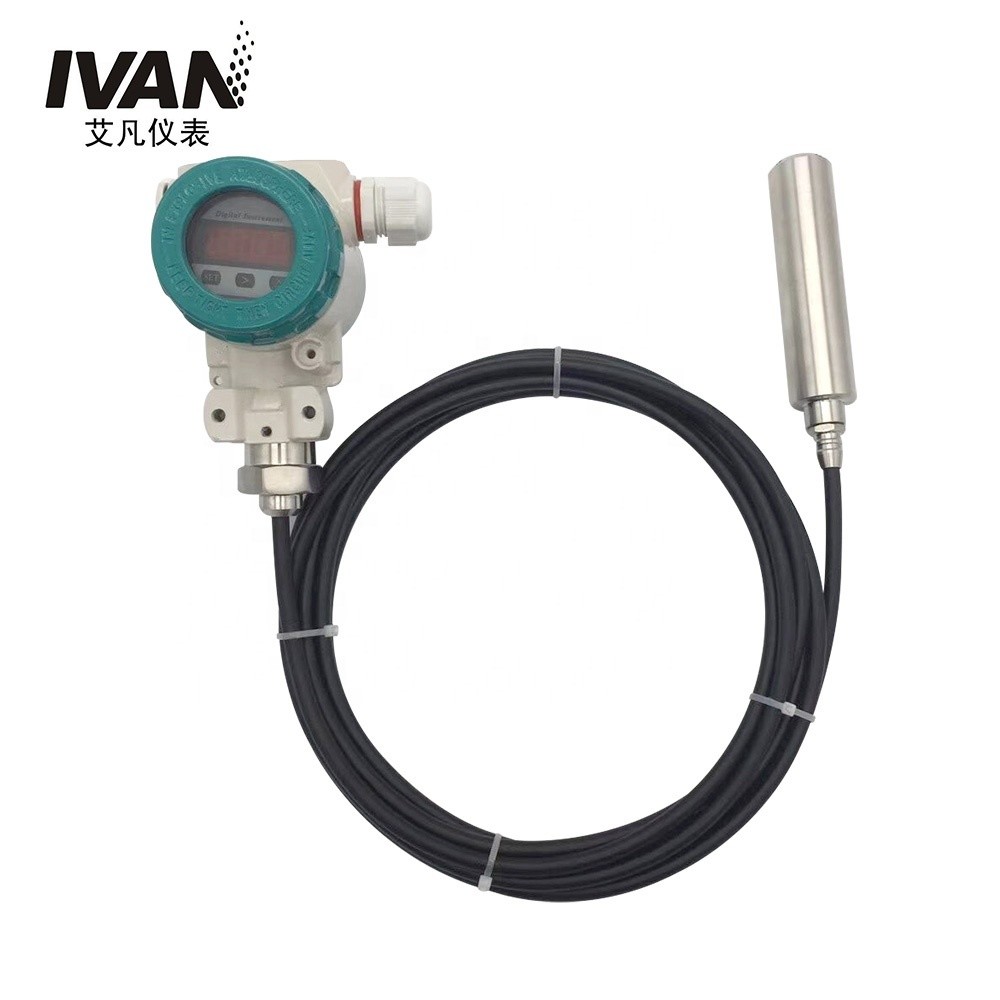

| Customized Support: | OEM, ODM, OBM | Product Name: | Liquid Level Transmitter |
| Working Temperature: | -20~80℃ | Temperature Compensation: | -10~70℃ |
| Storage Temperature: | -40~80℃ | Accuracy: | 0.2% FS (typical) 0.5% FS (maximum) |
| Stability Error: | 0.2% FS (typical) 0.5% FS (maximum) | Output Signal: | 0-10V |
| Power Supply: | 24VDC | IP Class: | IP68 |
| Port: | Tianjin |
Measurement form and scope | 0～1～200mH2O |
permitted Overload | 2Multiple full scale pressure |
working temperature | -20～80℃ |
temperature compensation | -10～70℃ |
Storage temperature | -40～80℃ |
Accuracy (including nonlinearity, repeatability, hysteresis) | 0.2% FS (typical) 0.5% FS (maximum) |
Stability error | 0.2% FS (typical), 0.5% FS (maximum) |
temperature coefficient | 0.01% FS (typical, range not less than 5mh2o) 0.03% FS (typical, range less than 5mh2o) |
output signal | (4 ~ 20) MA (2 / 3 wire system), (0 ~ 10 / 20) MA (0 ~ 5) V, (1 ~ 5) V,) 0 ~ 10) V |
Power supply | 15~ 36 VDC (rated voltage: 24 VDC) |
Load (Ω) | Current output type < (u-15v) / 0.02A, current output type > 5K |
Shell material | Alloy aluminum |
O-ring | Fluororubber |
diaphragm | 316L stainless steel |
Cable | Special waterproof and breathable cable |
Protection level | IP68 (pressure sensor part), IP65 (junction box transmitter part) |
