Detail Information

Warranty:	1 Year	Customized Support:	OEM, ODM
Product Name:	CO2 Transmitter	Accuracy:	(40+3%MV) Ppm
Response Time:	<10s (30cc/min, Low Airflow)	Drift:	<±10ppm/year
Range:	0~2000ppm (measure Range 400~2000ppm))	Output:	4~20mA, 0~10V, RS485/Modbus
Display:	Optional	Usage:	Indoor
Port:	Tianjin

Product Description

CDTH series carbon dioxide ( CO2 ) / temperature / humidity transmitters are designed for monitoring & controlling indoor air quality, temperature and humidity in one unit
CDTHW is suitable for wall mount and CDTHD is suitable for duct mount
High performance NDIR digital sensor and circuit, ensure precise measurement and temperature compensation
Multiple optional RTD or thermistor sensors, compatible with a variety of control systems
Stable, reliable and fast response

15 years of CO2 sensor life without maintenance

All electrical terminals are on the inside bottom, avoid any possible destroy to PCB when wiring
Digital technology applied, multiple outputs optional, over voltage and reverse polarity protection, high reliability and
anti-interference capability

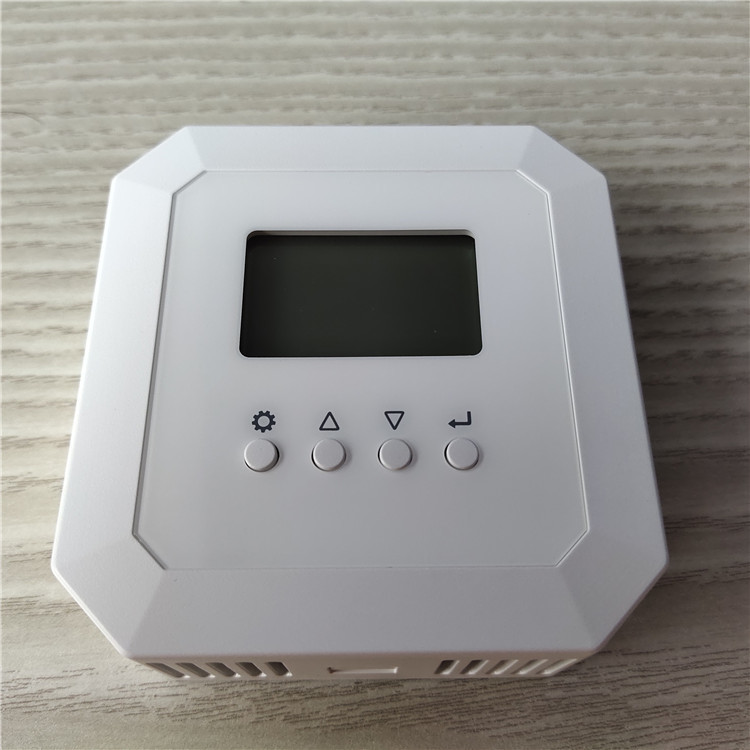

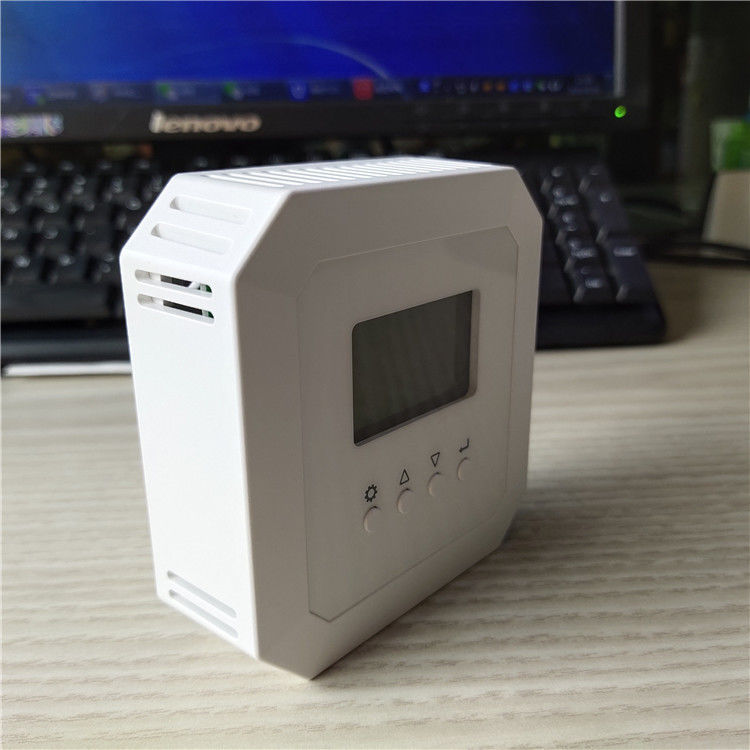

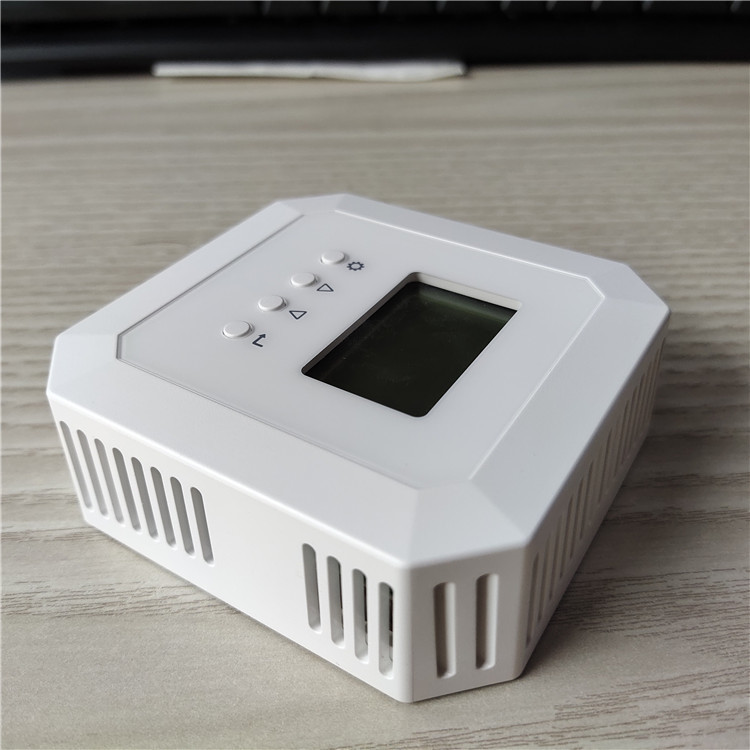

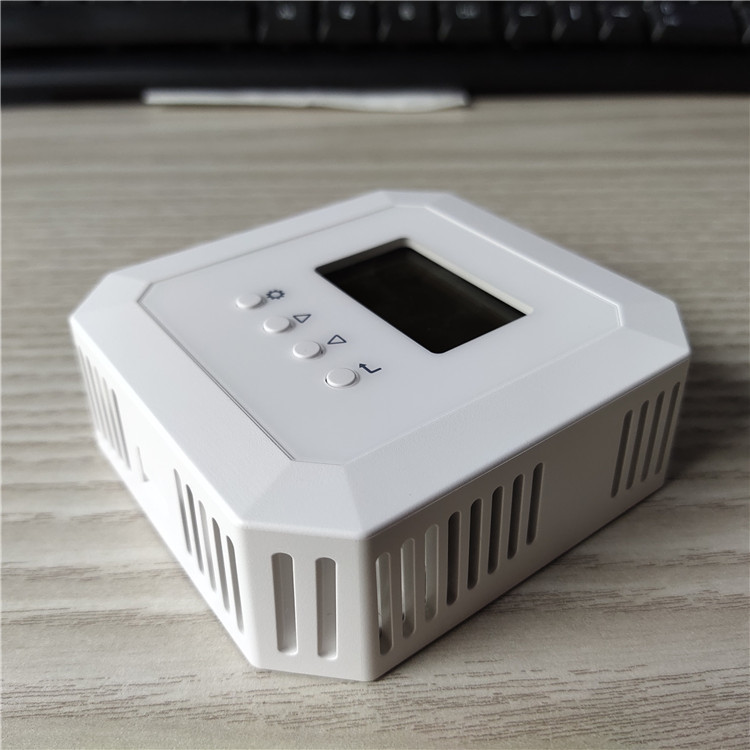

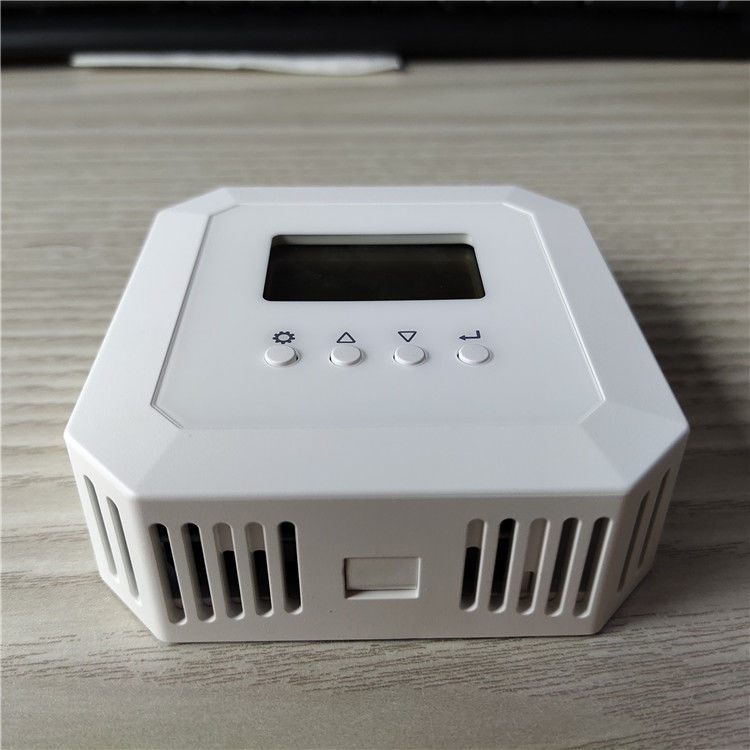

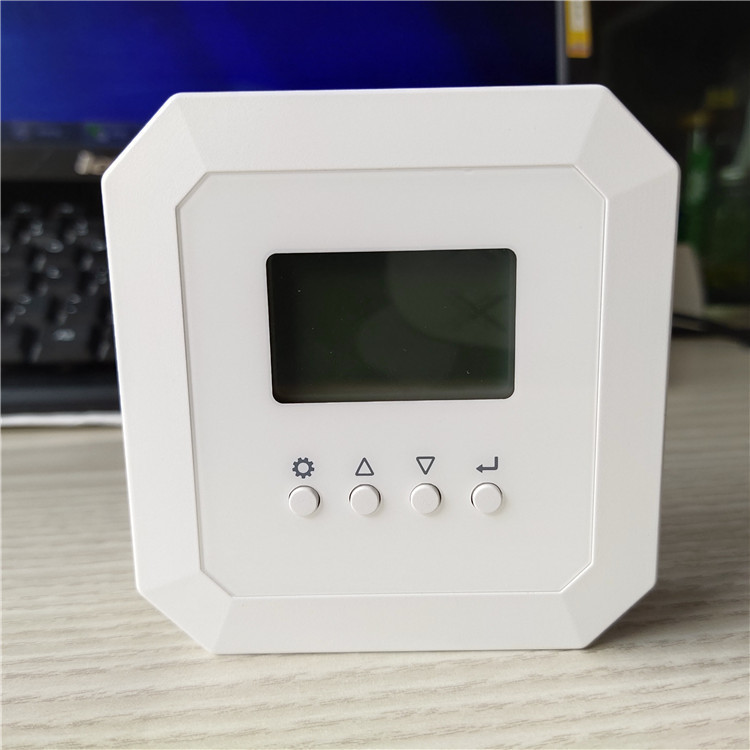

Large LCD with unit indicator( CDTHW ), display carbon dioxide ( CO2 ), temperature and humidity alternatively

Specifications
Carbon dioxide (CO2 )
Sensor: NDIR sensor, with ABC algorithm*
Sampling Method: diffusion
Accuracy: (40+3%MV) ppm
Response time: <10s (30cc/min, low airflow)
Drift: <±10ppm/year
Range: 0~2000ppm (measure range 400~2000ppm)
Output: 4~20mA, 0~10V, RS485/Modbus
Temperature
Sensor: Digital, RTD or thermistor, see models
Range: 0~50°C
Accuracy: see accuracy table
Output: 4~20mA, 0~10V, RS485/Modbus or RTD / thermistor
Relative Humidity
Sensor: Digital polymer
Range: 0~100%RH
Accuracy: see accuracy table
Hysteresis: <±1%RH
Response time: <10s (25°C, in slow air)
Drift: <±0.5%RH/year
Output: 4~20mA, 0~10V, RS485/Modbus
Power supply: 16~28VAC/16~35VDC
Load resistance: ≤500Ω (Current output),≥2kΩ (Voltage output)
Display: Optional LCD Display (CDTHW)
Display resolution: 1ppm, 0.1°C, 0.1%RH
Working environment: 0~50°C, 0~95%RH (Non-cond.)
Temp. compensation: 0~50°C
Storage temperature: -20~60°C
Housing material: ABS+PC (CDTHW), fireproof ABS(CDTHD)
Protection: IP30 (CDTHW), IP65 (CDTHD)
Approval: CE
*ABC algorithm: Automatic Baseline Correction, it constantly keeps track of the sensor's lowest reading over a few days interval
and slowly corrects for any long term drift detected as compared to the expected fresh air value of 400 ppm CO2.
1. All products are factory set to 0-10V as output default, and can be set to 4-20mA by jumper on the PCB
*2. See resistance table on page 1 of this catalog.

Accuracy table for temperature/ humidity
*When select RTD/ thermistor, total error will be 0.5°C more than the accuracy in the models
