| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | ivan |
| Certification: | Reach |
| Model Number: | AF805 |
| Minimum Order Quantity: | 10 units |
| Price: | $98.00/units 10-99 units |
| Packaging Details: | carton |
| Customized Support: | ODM | Measurement Form 0~1~200mH2O And Scope: | 0~1~200mH2O |
|---|---|---|---|
| Permitted Overload: | 2Double Full Scale Pressure | Working Temperature: | -20~80℃ |
| Temperature Compensation: | -10~70℃ | Storage Temperature: | -40~80℃ |
| Stability Error: | 0.2% FS (typical), 0.5% FS (maximum) | Temperature Coefficient: | 0.01% FS |
| Output Signal: | (4-20) MA | Power Supply: | 15~ 36 VDC ( |
| Shell Material: | Aluminum Alloy |
Measurement form and scope | 0～1～200mH2O |
permitted Overload | 2Multiple full scale pressure |
working temperature | -20～80℃ |
temperature compensation | -10～70℃ |
Storage temperature | -40～80℃ |
Accuracy (including nonlinearity, repeatability, hysteresis) | 0.2% FS (typical) 0.5% FS (maximum) |
Stability error | 0.2% FS (typical), 0.5% FS (maximum) |
temperature coefficient | 0.01% FS (typical, range not less than 5mh2o) 0.03% FS (typical, range less than 5mh2o) |
output signal | (4 ~ 20) MA (2 / 3 wire system), (0 ~ 10 / 20) MA (0 ~ 5) V, (1 ~ 5) V,) 0 ~ 10) V |
Power supply | 15~ 36 VDC (rated voltage: 24 VDC) |
Load (Ω) | Current output type < (u-15v) / 0.02A, current output type > 5K |
Shell material | Alloy aluminum |
O-ring | Fluororubber |

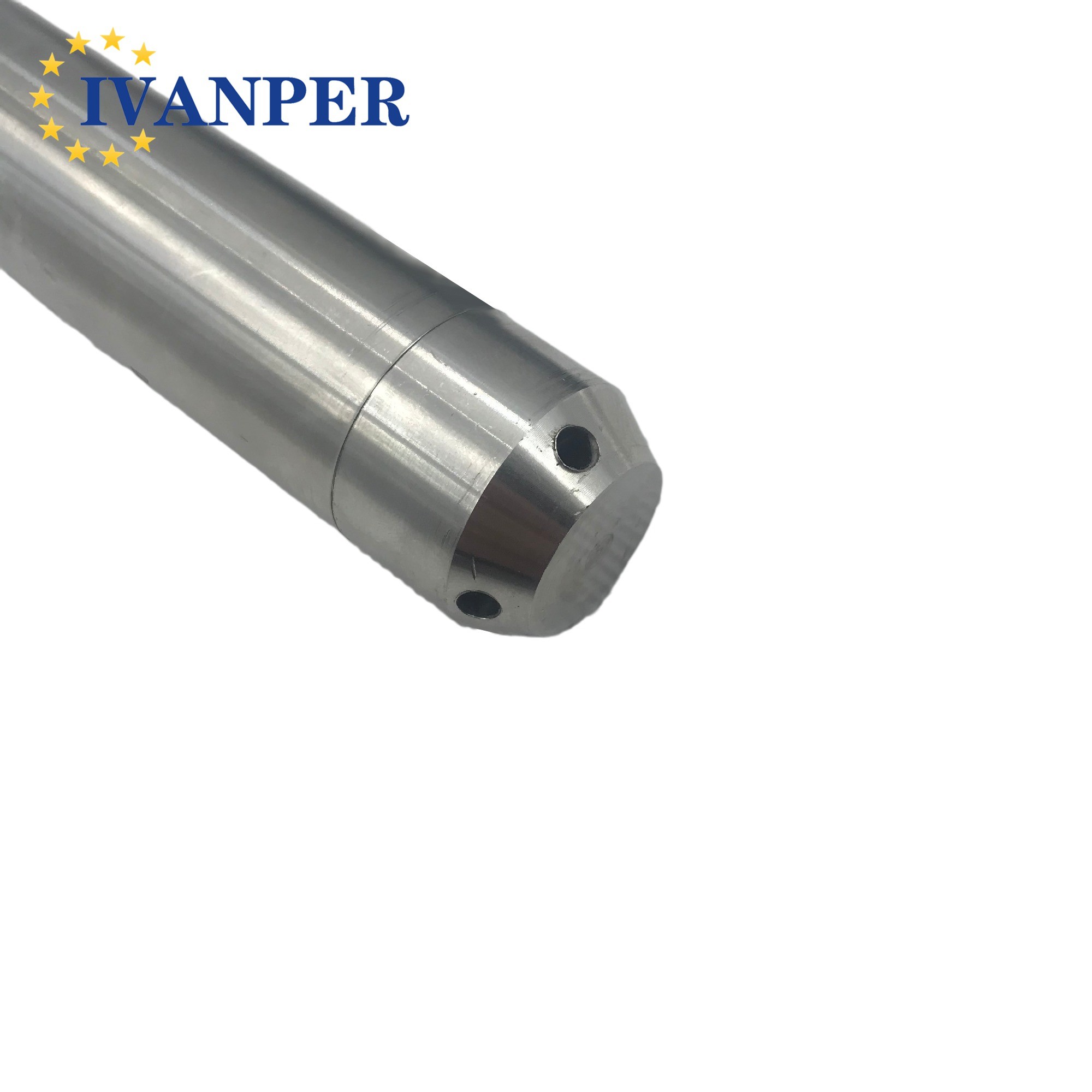

diaphragm | 316L stainless steel |

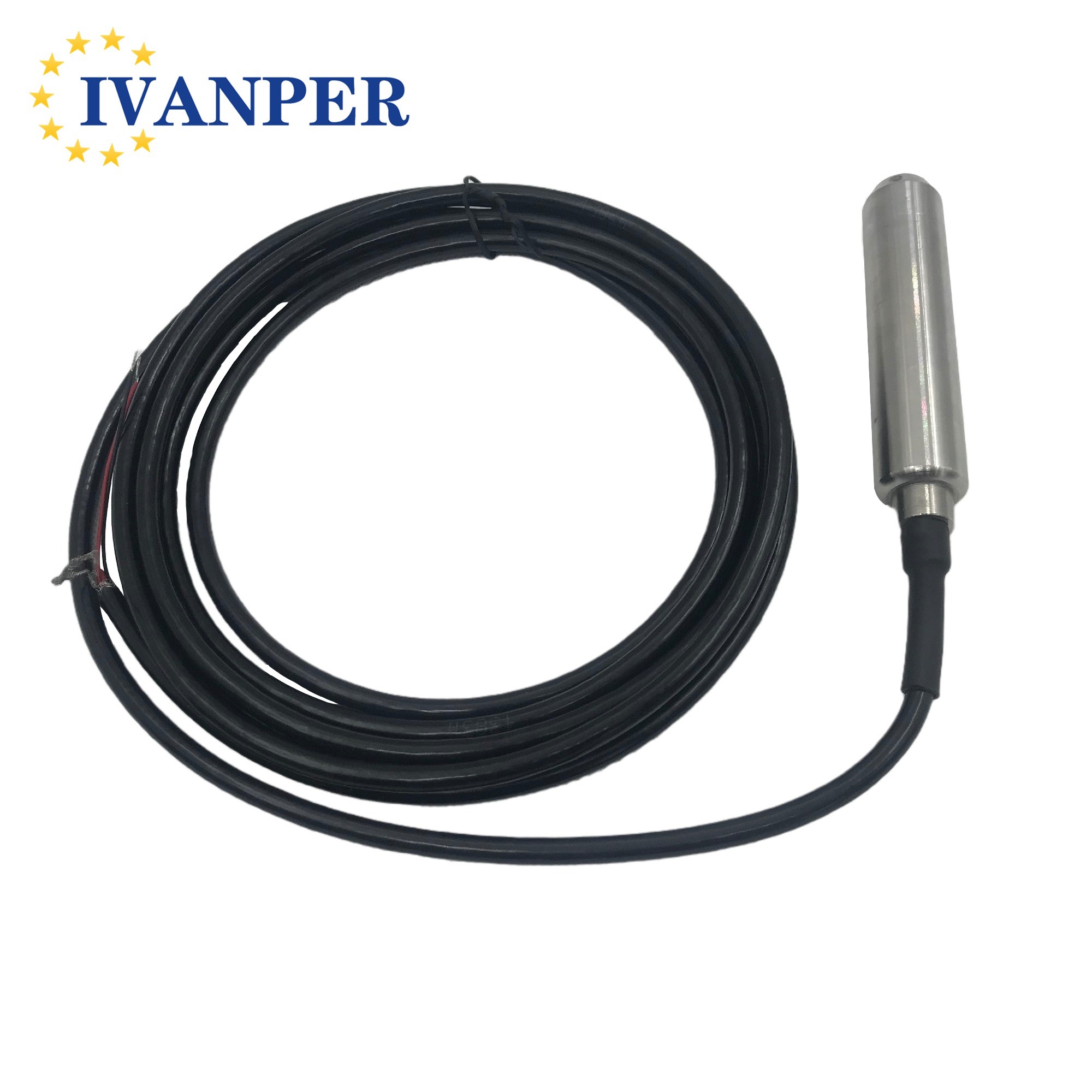

Cable | Special waterproof and breathable cable |
Protection level | IP68 (pressure sensor part), IP65 (junction box transmitter part) |
