| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | IVANPER |
| Model Number: | AF410 |
| Minimum Order Quantity: | 10 pieces |
| Price: | $90.00/pieces 10-99 pieces |
| Packaging Details: | carton |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Warranty: | 12 Months | Type: | Industrilal |
|---|---|---|---|

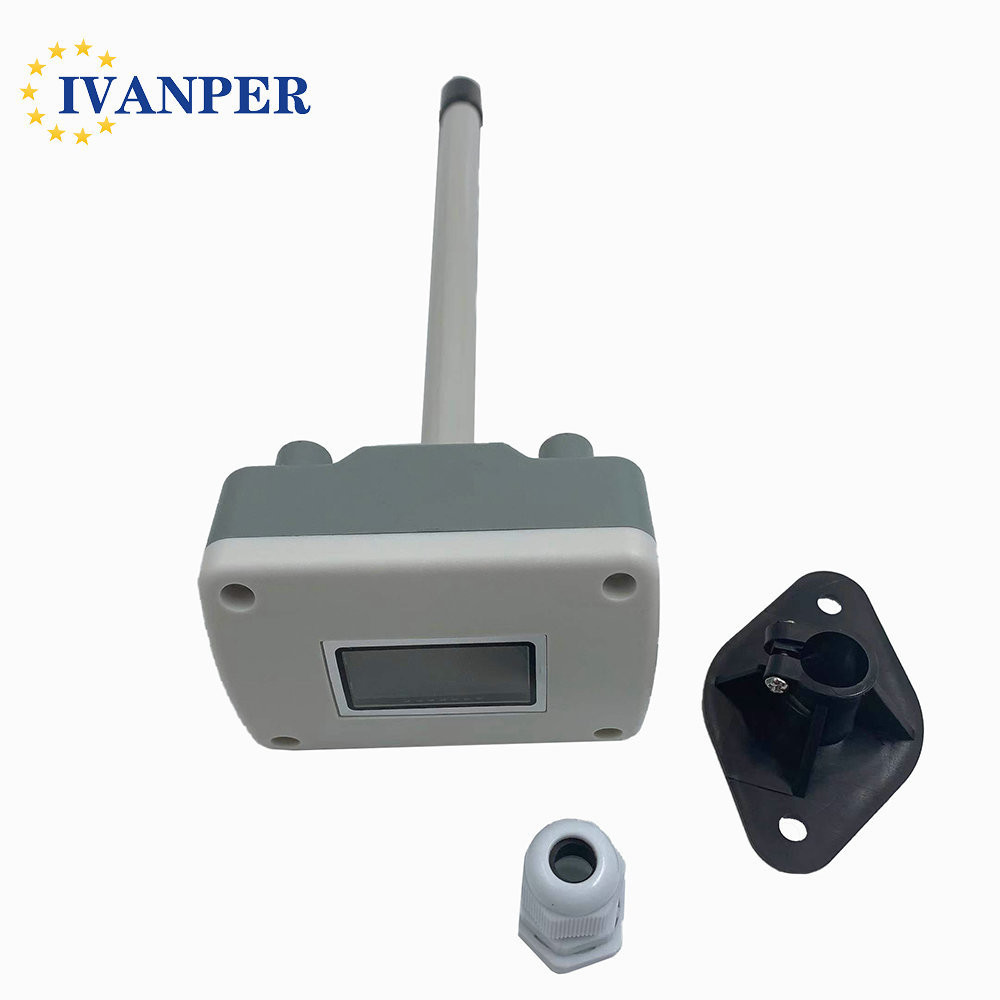

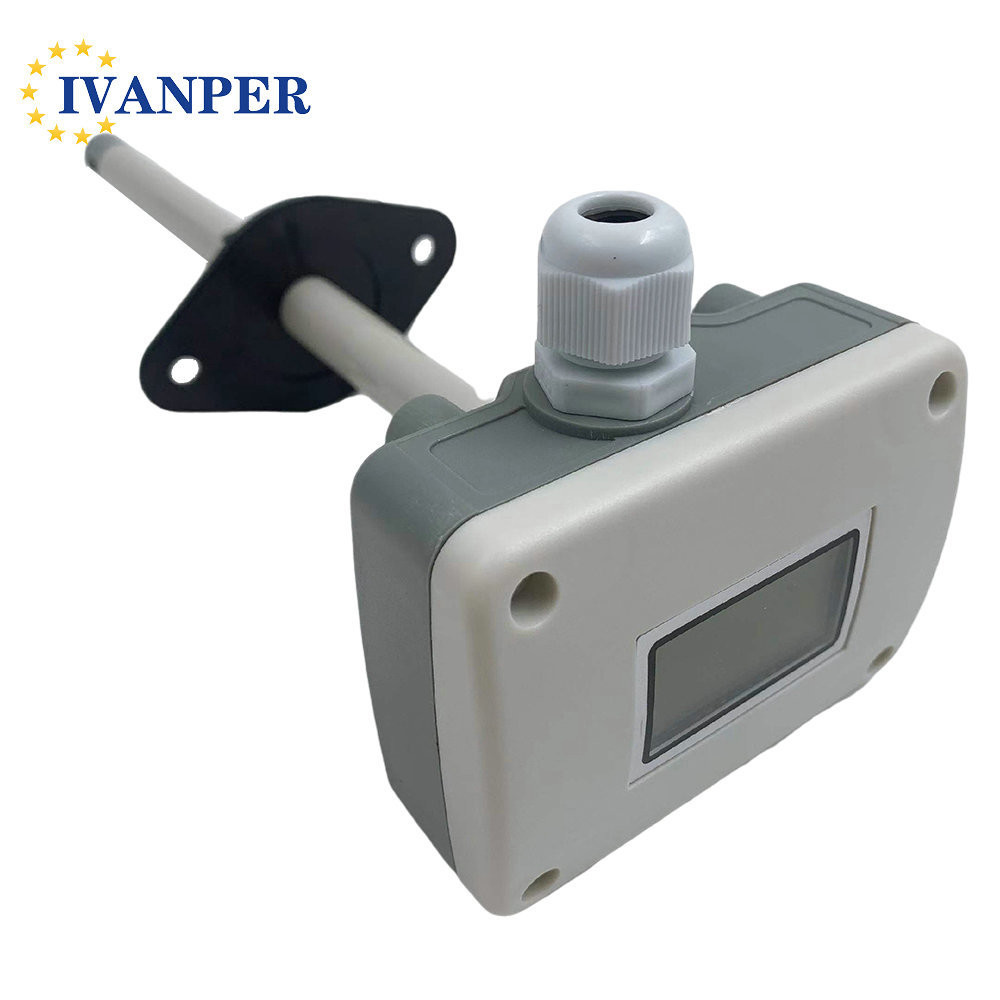

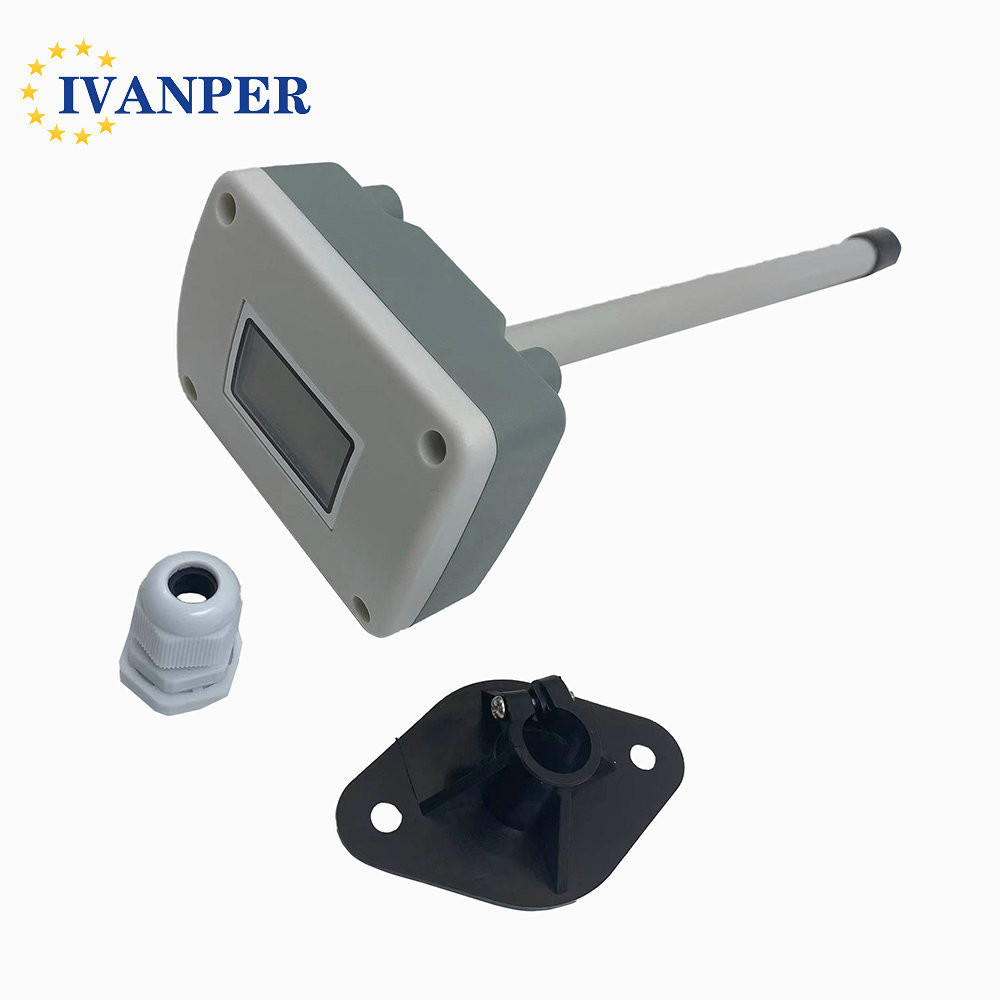

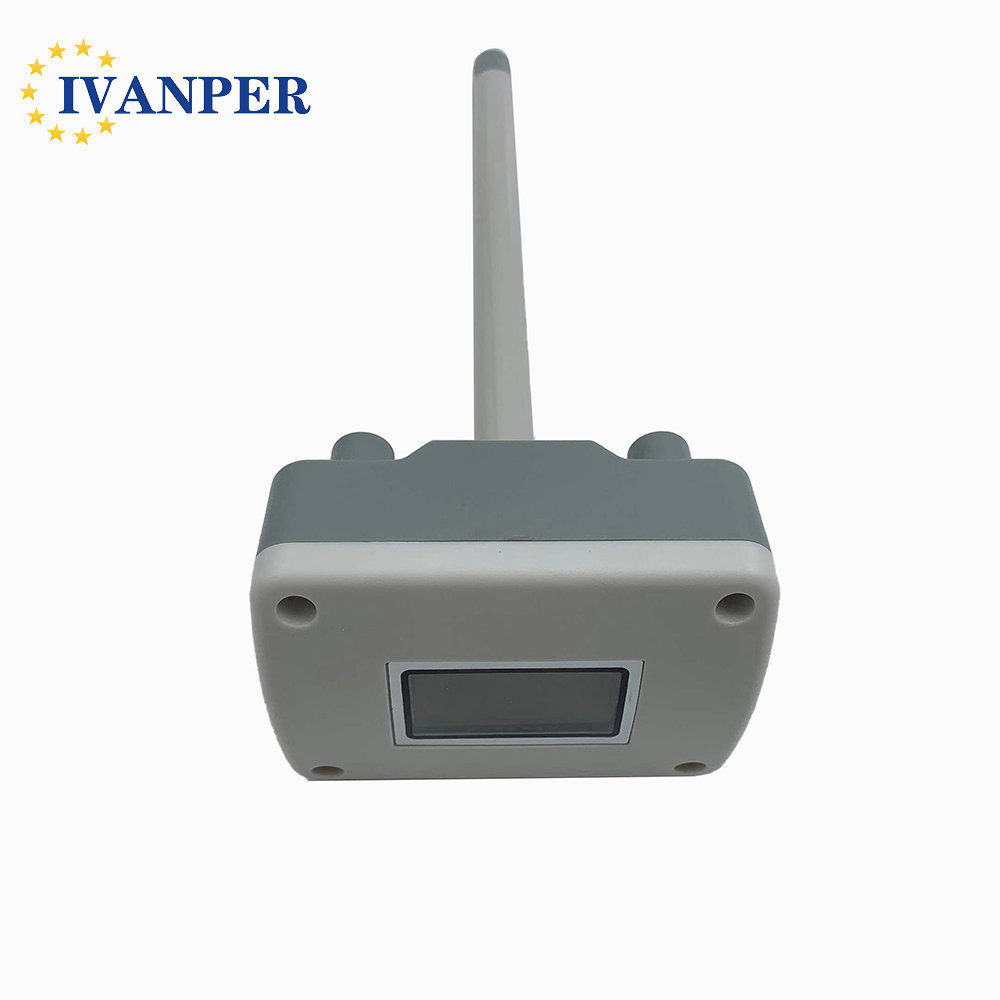

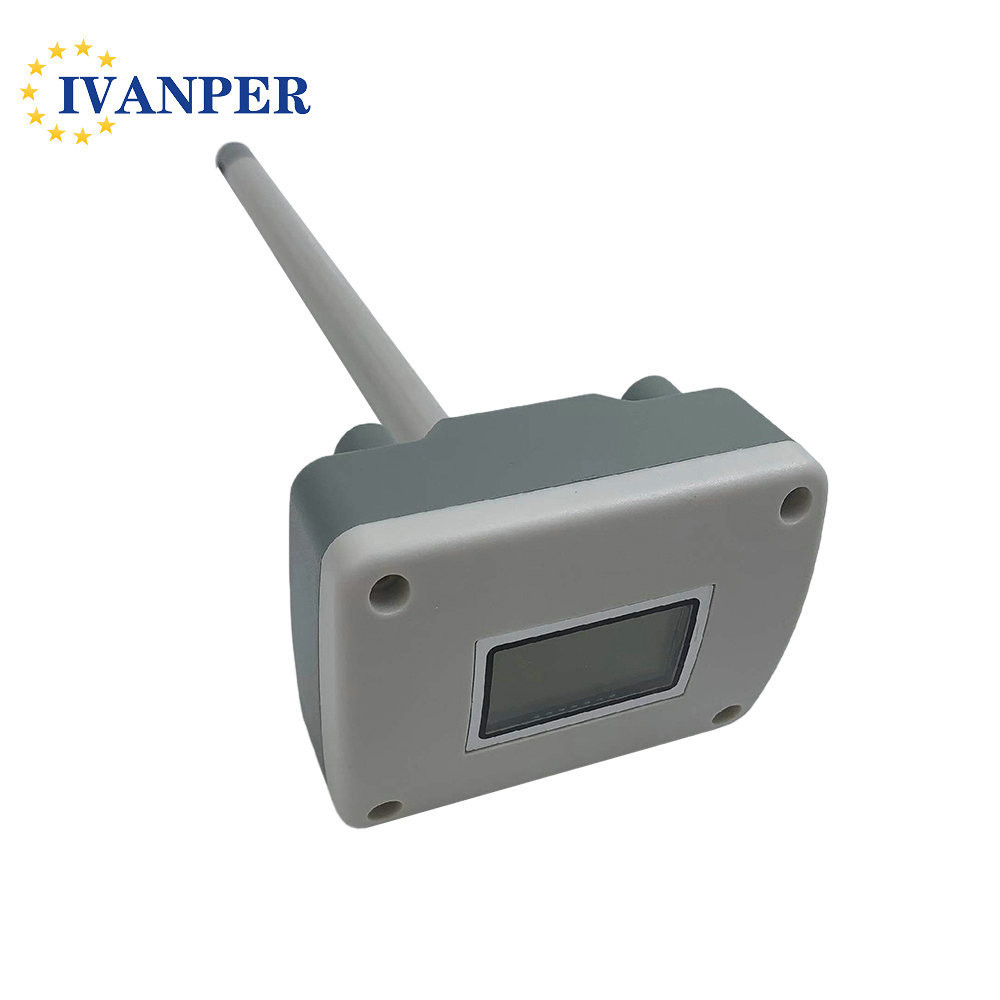

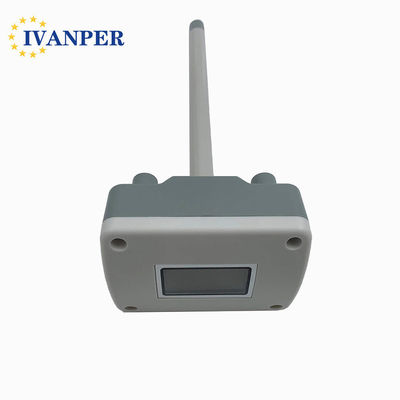

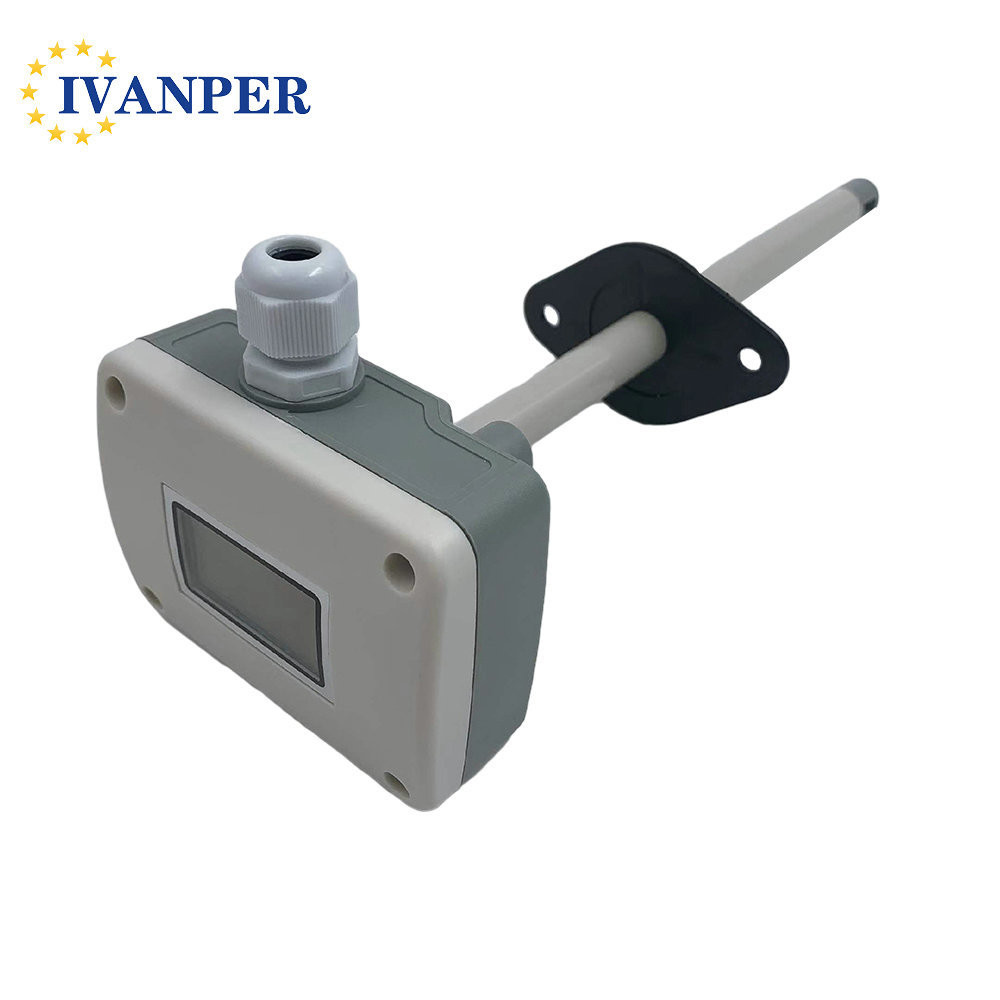

| Customized Support: | OEM, ODM | Product Name: | Air Velocity Transmitter |
| Power Supply: | 24VDC | Measuring Range: | 0-30m/s |
| Output: | RS485 4-20mA 0-10V | Operate Temperature: | 20~65 |
| MOQ: | 1pc | Probe Length: | 220mm |
| Probe Diameter: | 14mm | Port: | TIANJIN |
Specifications | |
Power Supply | 12V DC/AC 24V DC/AC |
Measure Range | 0-1m/s 0-2m/s 0-10m/s 0-15m/s 0-20m/s 0-30m/s |
Output | 0-10V 4-20mA Rs485{modbus-RTU} |
Measure Accuracy | ±{0.2m/s +3%of MV} |
Consumption | 2.5W |
Protection Rating | IP65 |
Response Latency | 0.2 s |
Resolution | 0.01m/s |
Sensing Elements | Thermal film sensor |
Working Environment | Temperature: -40-80ºC Humidity:5%-95% |
Probe Length | Installation of flange :150mm / Customization |
Material of Probe | ABS Engineering plastic |
Rod diameter | 12mm, rod length: 220mm (customized), can be made of aluminum alloy |
