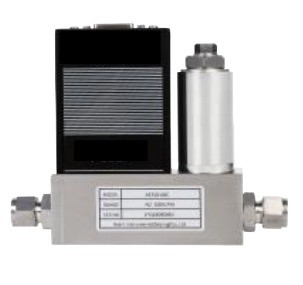

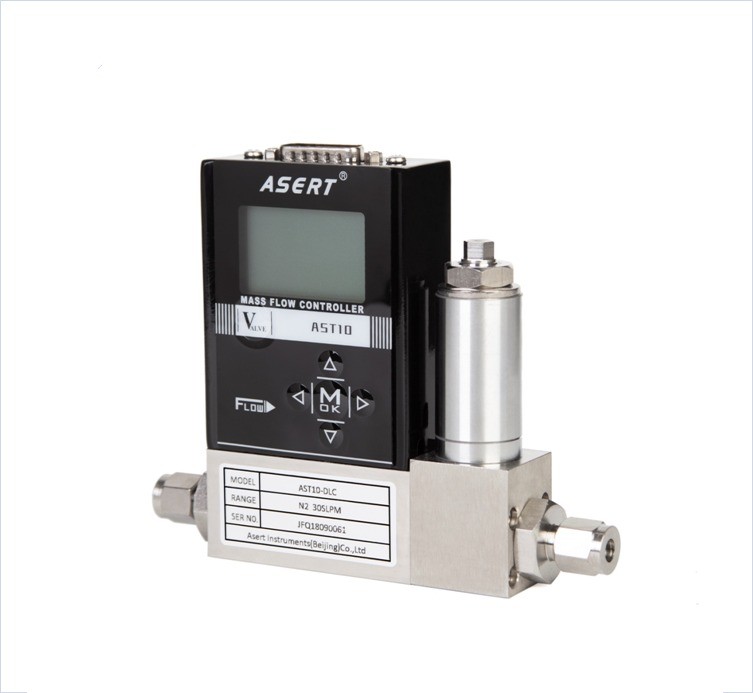

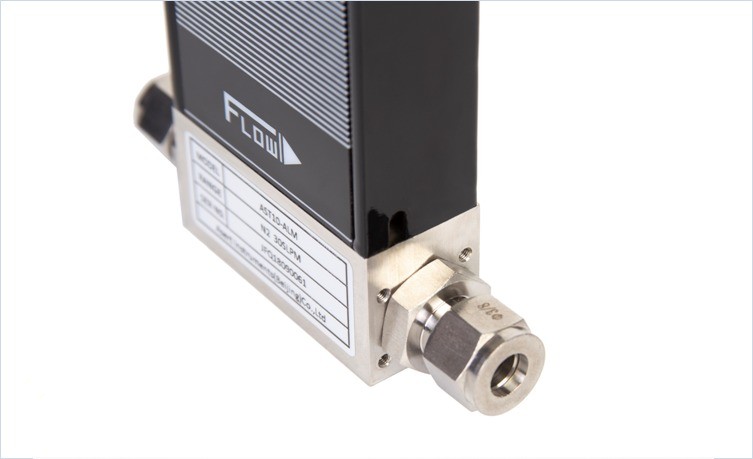

Name: Analog Quantity 0-5V Gas Mass Flow Controller and Meter for Precise Flow Measurement
Brand: IVAN
SKU: 6321
Price: 1 USD
Availability: InStock
Rating: 4.8 (184 reviews)

Detail Information

Type:	Variable Area Water Flowmeters	Range::	50slm-200slm
Accuracy:	± 1.0% F.S	Linearity:	± 0.5% F.S
Repeatability:	± 0.2% F.S	Response Time:	< 1.5s < 1.0s
Analog Quantity:	0-5V,4-20mA	Working Temperature:	50°C
Working Pressure::	< 0.01Mpa	Maximum Withstand Voltage::	3Mpa / 10MPa

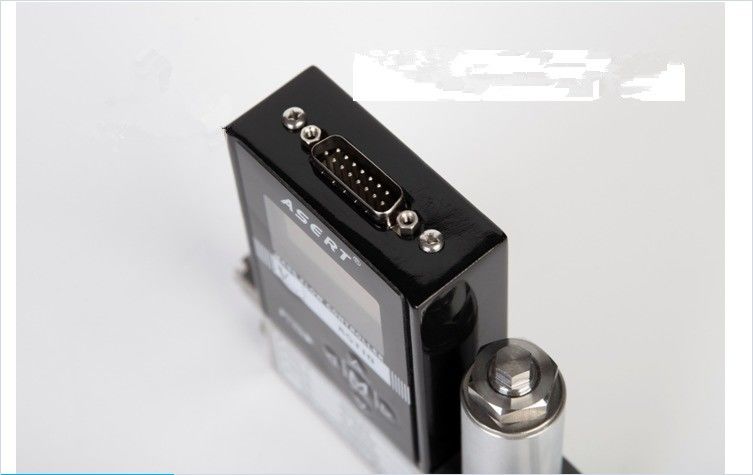

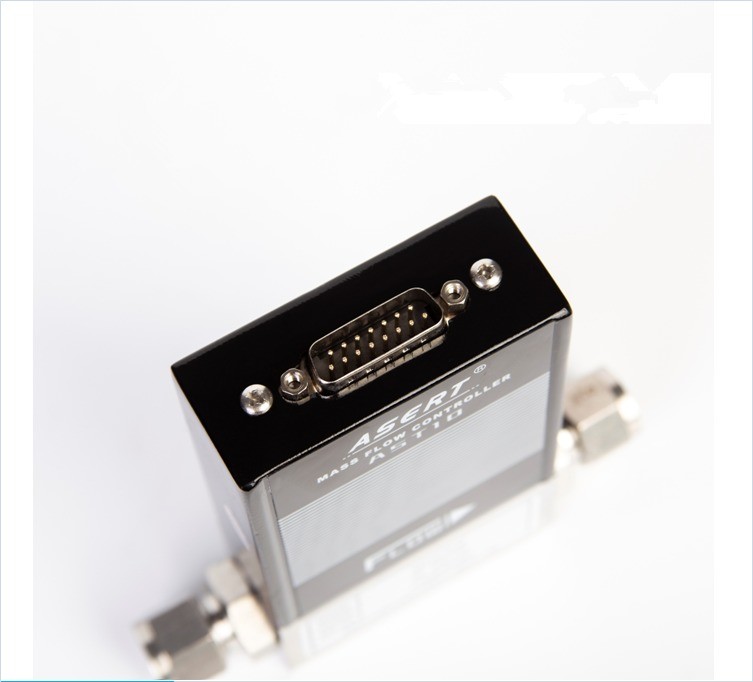

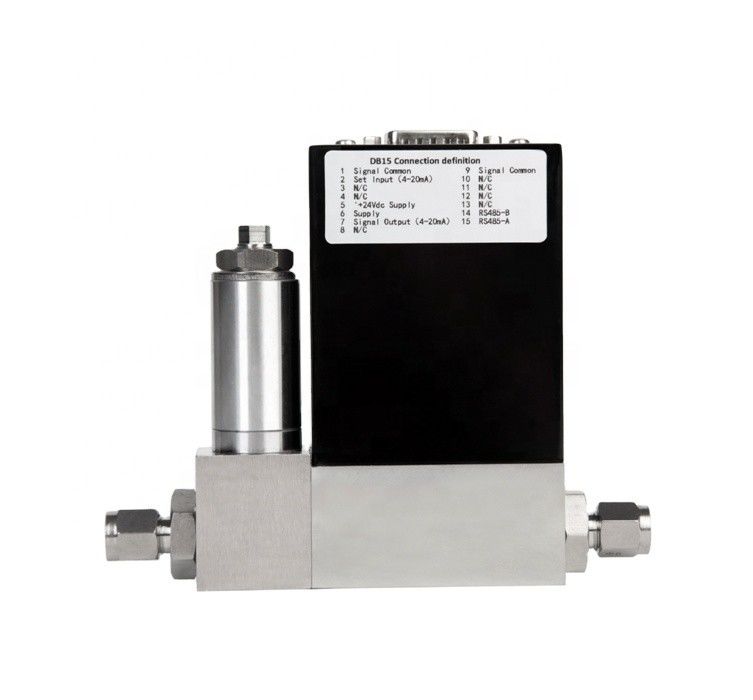

Electrical Connection DB15 Hole DB9 Pin:	Leakage Rate 1 X 109 Sccshe	Port:	Tianjin

Product Description

The principle of Mass Flow Controller/gas mass flow meter/thermal mass gas flow meter for gas like nitrogen, natural gas, argon,CO2 etc. is that a fluid flowing past a heated temperature sensor removes a known quantity of heat as it passes.In a thermal flowmeter, the fluid has to pass two temperature sensors.One sensor obtains a reference value by measuring the actual process temperature. The second sensor is a heating element and it receives precisely as much energy as is needed to compensate for dispersed heat and maintain a precisely defined temperature difference.The higher the mass flow past the heated temperature sensor, the more heat is dissipated and the more power has to be input to the element to maintain the temperature difference.
Oxygen, nitrogen, hydrogen, chlorine and mixed gas blast furnace gas, flue gas, biogas, compressed air, natural gas, liquefied gas, primary and secondary air and etc.

Technical specifications af10-abc mass flow controller af10-abm mass flowmeter Range: 50slm-200slm Accuracy ± 1.0% F.S Linearity ± 0.5% F.S Repeatability ± 0.2% F.S Response time < 1.5s < 1.0s Analog quantity. 0〜5V、4-20mA Power supply ± 15Vdc, 24VDC, power n20w Working temperature. 〜50°C Working pressure: working pressure difference: 0.02-0.5mpa; working pressure drop: < 0.01Mpa Maximum withstand voltage: 3Mpa / 10MPa Electrical connection DB15 hole DB9 pin Leakage rate 1 x 109 sccshe Temperature coefficient ± 0.015% f.s/c Base material 316L Sealing materials: fluororubber, NBR, PTFE Joint ： 10, 4 > 12,3 / 8 ", 1 / 2

Recommend Products

Packing & Delivery

Company Profile

Beijing Ifpen Instrument EnterpriseWas founded in 2011, adjacent to the beautiful political and cultural center, located in Daxing Industrial Development Zone, Beijing.The company has a professional, innovative technica team and standardized production team. Over the years, we have been committed to the research and development of industrial instrument production, focusing on the research and development of the field of"wind speed and air volume", and achieving zero breakthrough of turbulence jump. Since its establishment, the company insists on"innovation, quality, integrity" to serve the new and old customers. Ivan products not only occupy a high proportion of market share in China, as a national brand, go abroad, exported to the world.

Exhibition

Certifications

FAQ

FAQ for better and easy cooperation:
1.Why choose IVAN?
We are the leading manufactuer, OEM & ODM service areoffered
2.How about the sample of IVAN product?
We could send you the samples but the freight and the sample are charged.
4.How about IVAN payment term?
TT &L/C &Westem Union(40% deposit, the balance before shipment)
5.How about BIOBASE delivery time?
Within 7-15 workdays after receving deposit
6.How about IVAN validity of quotation?
Usualy 30 days as the shipping freight and exchange rate can be fluctuant.
7.What is the shipping port?
FOB to Qingdao Port, China(also can ship according to customers' request)
8.How about the package?
Bubble film+ Coton +Standard export wooden case.
9.How to inspect the goods?
Products i be checked by our QC staffist then our proejct manager. Cient can come and check bythemselves or third party check is available.
Any quesion or help pease felfre t contact with any time!

Place of Origin:	Beijing, China
Brand Name:	IVAN
Model Number:	6321

Price:	$1,358.00/units 1-9 units
Packaging Details:	carton
Supply Ability:	500 Unit/Units per Week
