Detail Information

Warranty:	12 Months	Type:	Online Type
Customized Support:	OEM, ODM	Product Name:	Wind Vane Anemometer
Power Supply:	12~24VDC	Measure Range:	0-70m/s
Output:	0-10V 4-20mA Rs485	Probe Length:	200mm
Probe Diameter:	14mm	Cable Length:	1M
Port:	Tianjin

Product Description

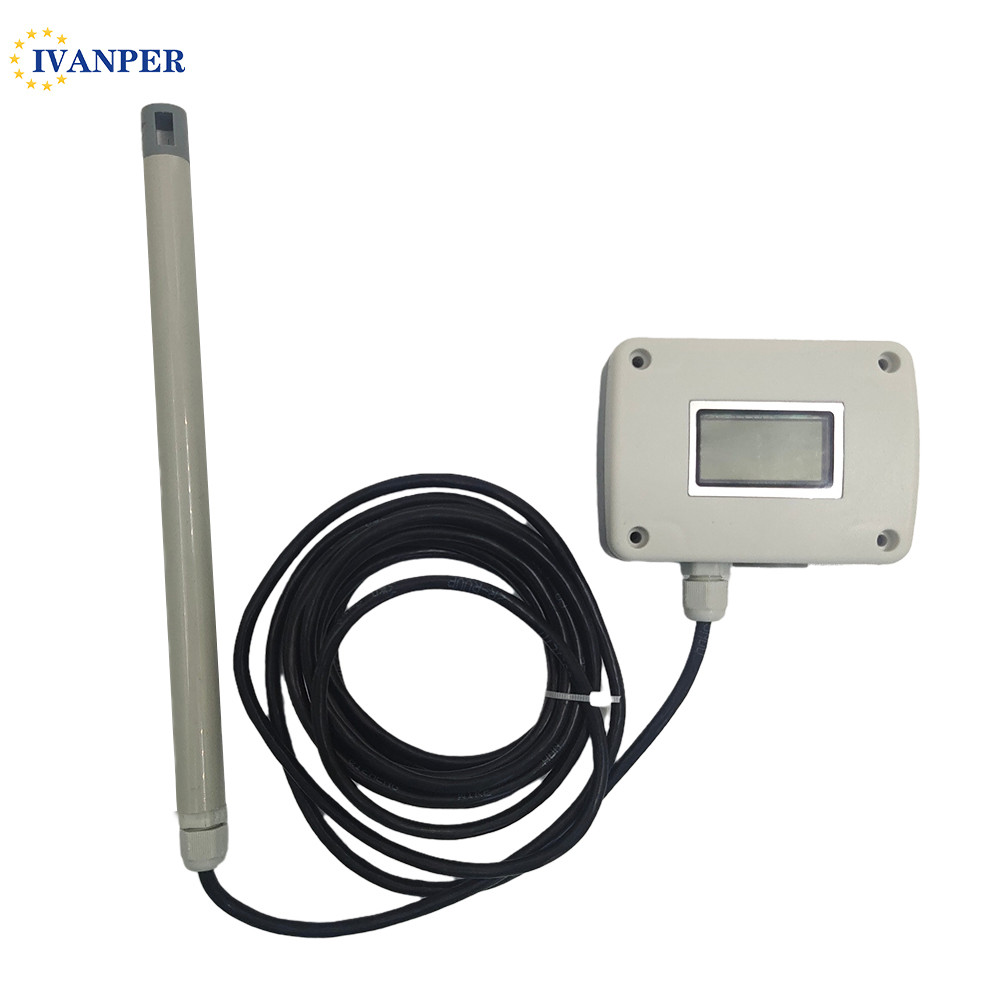

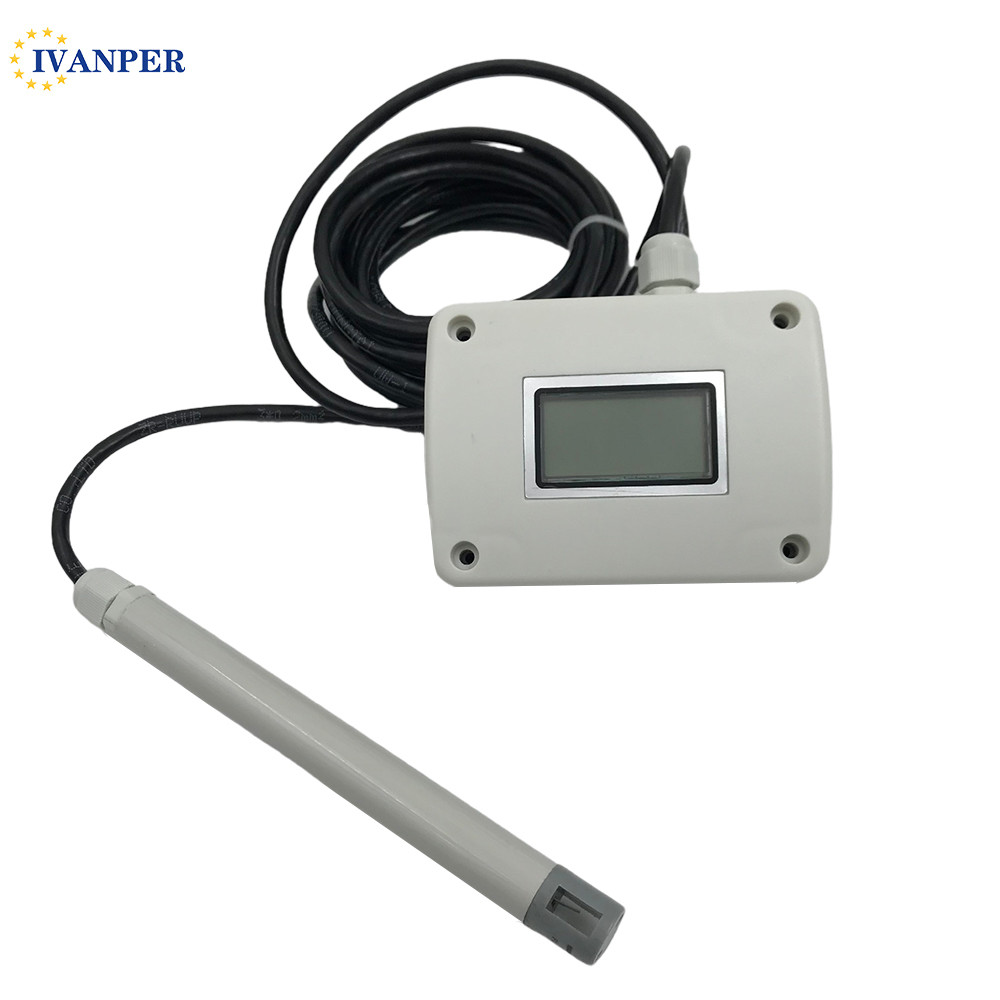

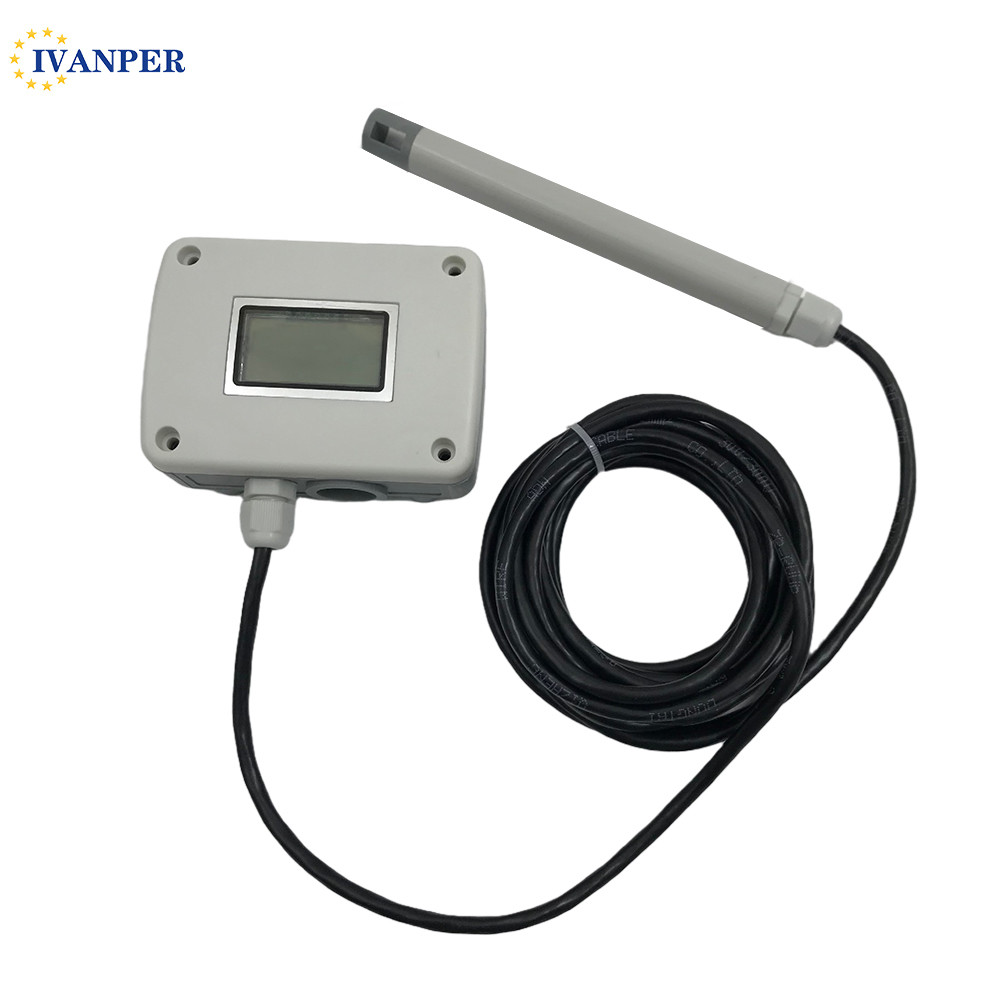

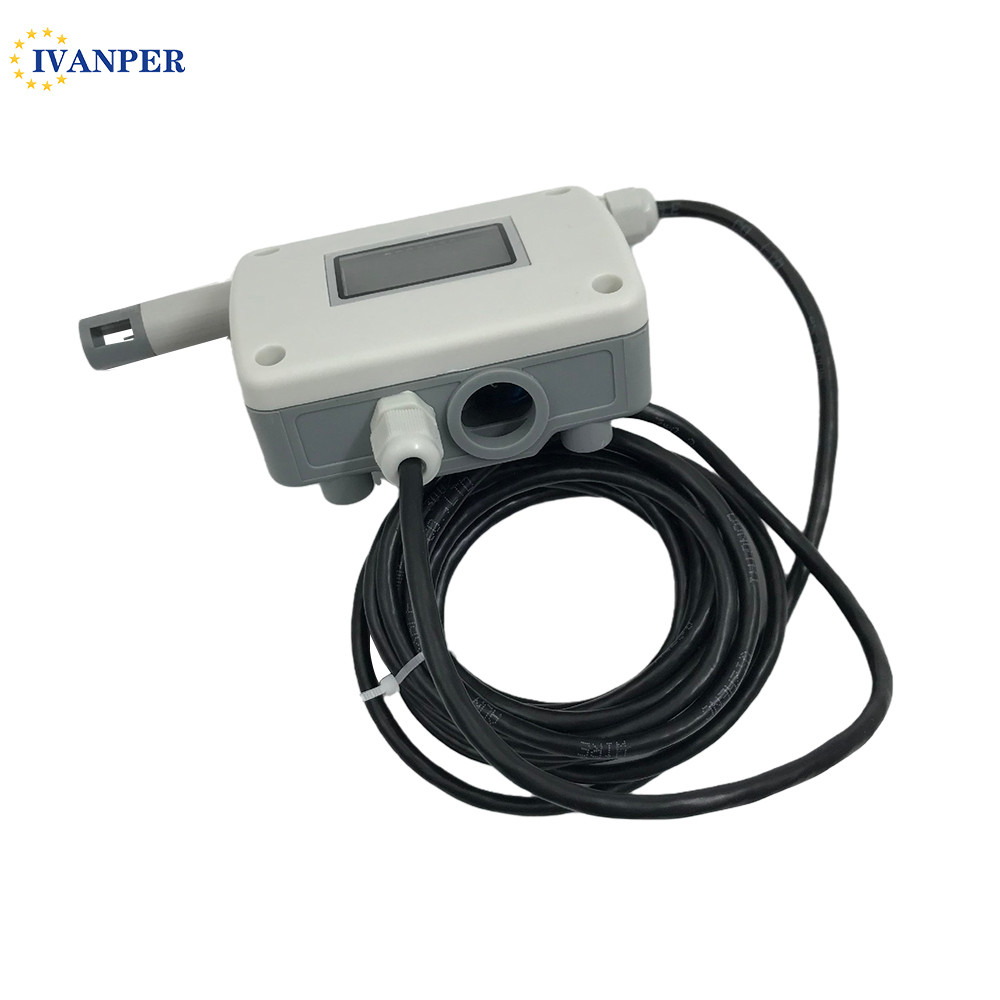

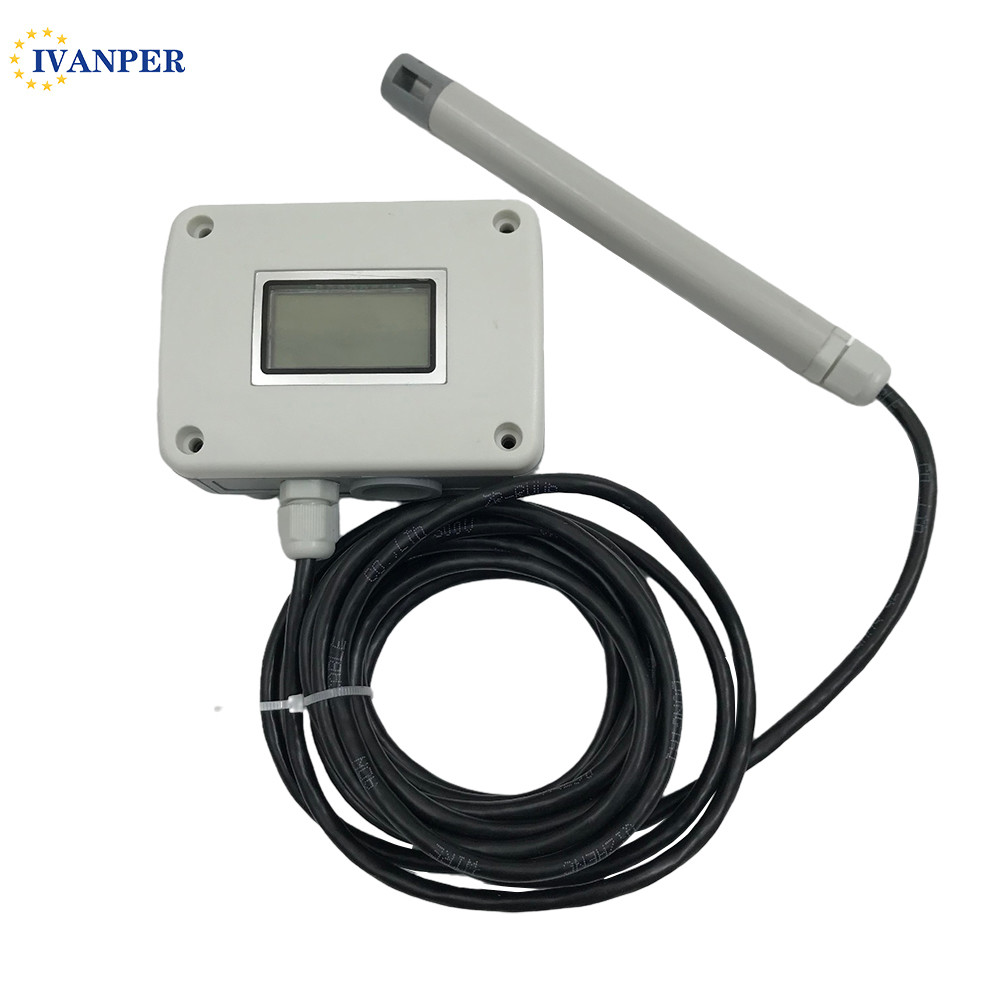

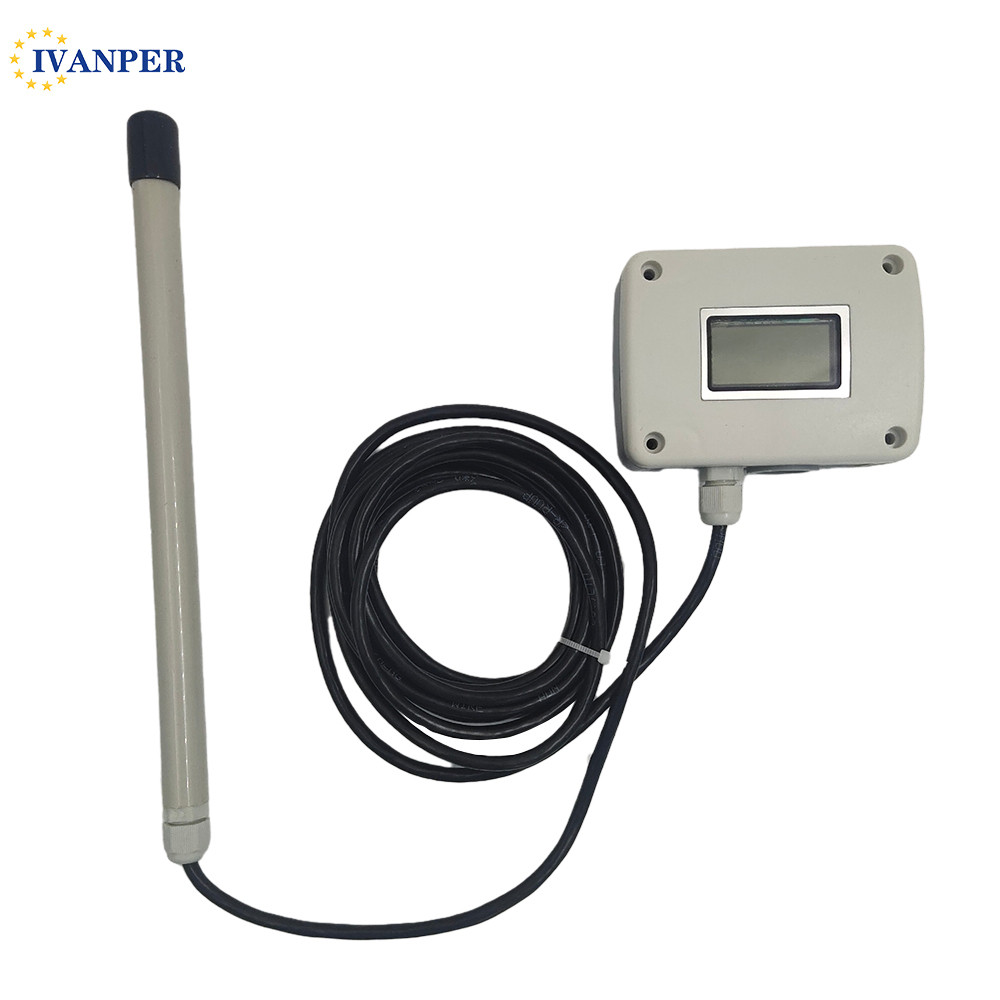

Hot Sale Air Velocity Sensor With 4-20mA & 0-10V

Product Description

The series air velocity transmitters were developed to obtain accurate measuring results over a wide range of velocities and temperatures. A high-quality hot film sensor element based on cutting- edge thin film technology ensures maximum sensitivity, even at lowest mass flows.At the same time, the innovative probe design produces reliable measuring results at high flow velocities of up to 30m/s . The integrated temperature compen- sation minimises the temperature cross-sensitivity of series which, combined with the robust mechanical design.In addition to air velocity and temperature values,The cross section of the duct needs to be determined for this purpose and the volumetric flow rate can be displayed and directed to one of the analogue outputs. The series can be used to measure the velocity of other gases as well, although a correction has to be applied to the unit at the factory.

Specifications
Power Supply	12V DC/AC 24V DC/AC {Customization}
Measure Range	0-1m/s 0-2m/s 0-10m/s 0-15m/s 0-20m/s 0-30m/s
Output	0-5V 0-10V 0-20mA 4-20mA Rs485{modbus-RTU}
Measure Accuracy	±{0.2m/s +3%of MV}
Consumption	2.5W
Protection Rating	IP65
Response Latency	0.2 s
Resolution	0.01m/s
Sensing Elements	Thermal film sensor
Working Environment	Temperature: -20-80ºC Humidity:5%-95%

Recommend Products

Packing & Delivery

Company Profile

Beijing Ifpen Instrument EnterpriseWas founded in 2011, adjacent to the beautiful political and cultural center, located in Daxing Industrial Development Zone, Beijing.The company has a professional, innovative technica team and standardized production team. Over the years, we have been committed to the research and development of industrial instrument production, focusing on the research and development of the field of"wind speed and air volume", and achieving zero breakthrough of turbulence jump. Since its establishment, the company insists on"innovation, quality, integrity" to serve the new and old customers. Ivan products not only occupy a high proportion of market share in China, as a national brand, go abroad, exported to the world.

Exhibition

Certifications

FAQ

1.Why choose us?
We are the leading manufacturer, OEM & ODM service are offered
2.How about the sample of IVAN product?
We could send you the samples but the freight and the sample are charged.
4.How about IVAN payment term?
TT &L/C &Western Union(40% deposit, the balance before shipment)
5.How about the delivery time?
Within 7-15 workdays after receiving deposit
6.How about IVAN validity of quotation?
Usually 30 days as the shipping freight and exchange rate can be fluctuant.
7.What is the shipping port?
FOB to Qingdao Port, China(also can ship according to customers' request)
8.How about the package?
Bubble film+ Carton +Standard export wooden case.
9.How to inspect the goods?
Products i be checked by our QC staff then our project manager. Client can come and check by themselves or third party check is available.
Any question or help please feel free to contact me!
