| Place of Origin: | China |
|---|---|
| Brand Name: | IVAN |
| Model Number: | AF410 |
| Minimum Order Quantity: | 10 units |
| Price: | $93.00/units 10-19 units |
| Supply Ability: | 1000 Unit/Units per Week |
| Type: | New Type Duct Mount |
|---|
INSTRUCTION

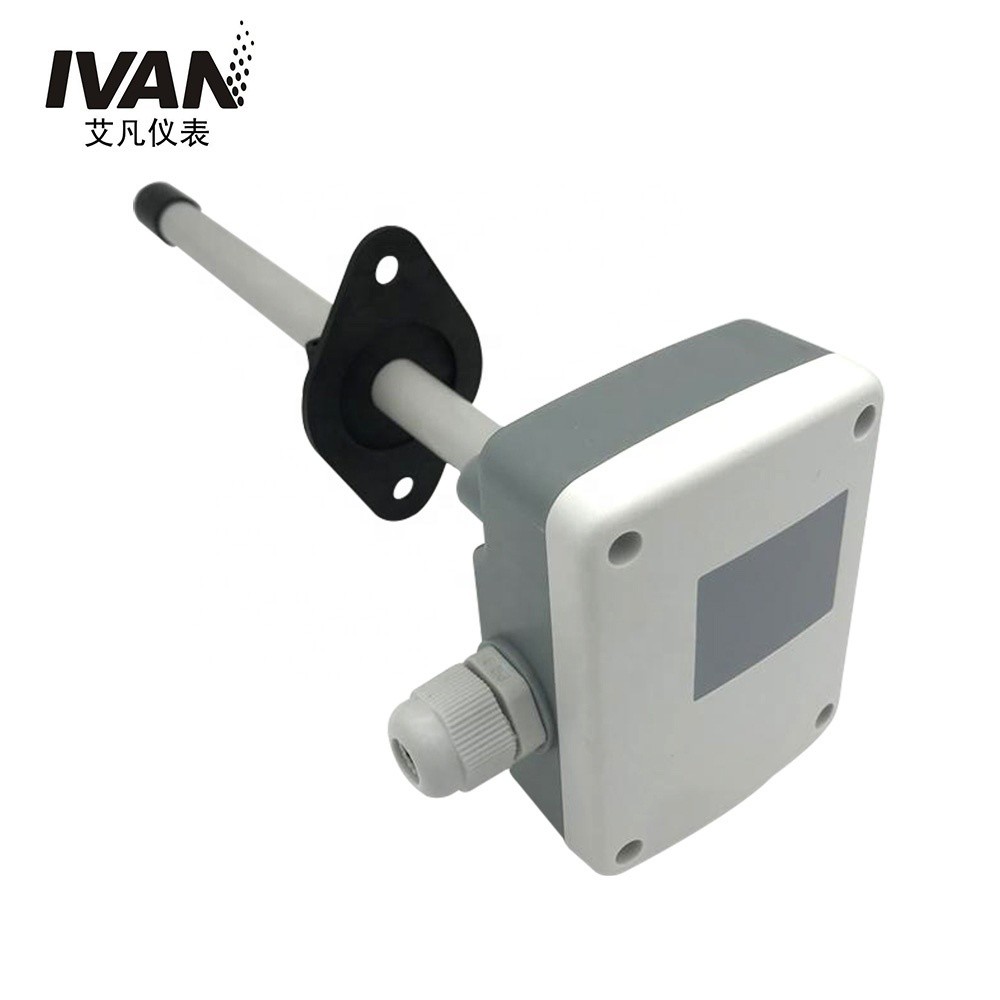

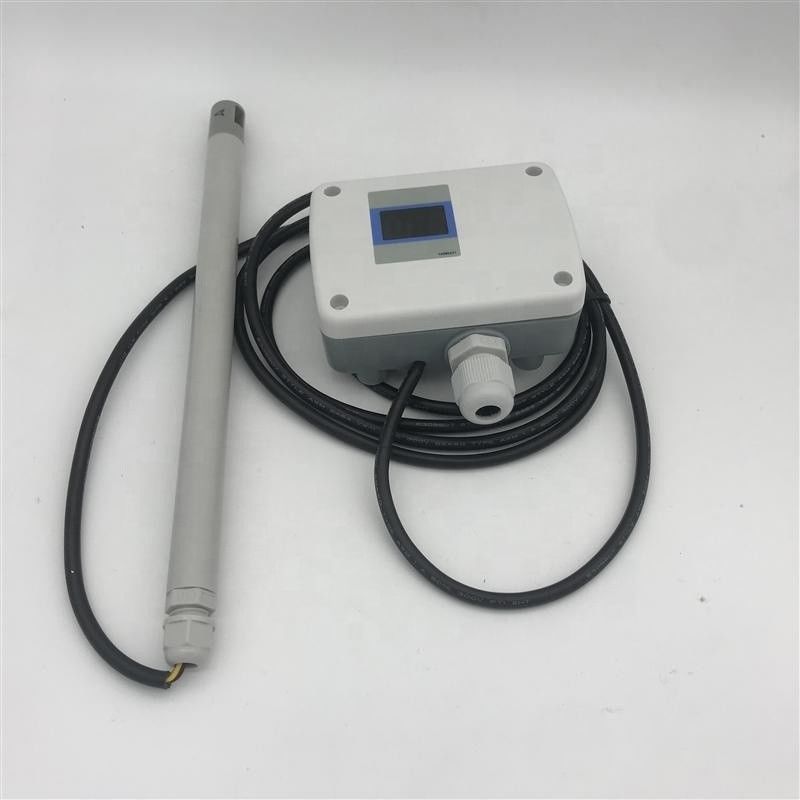

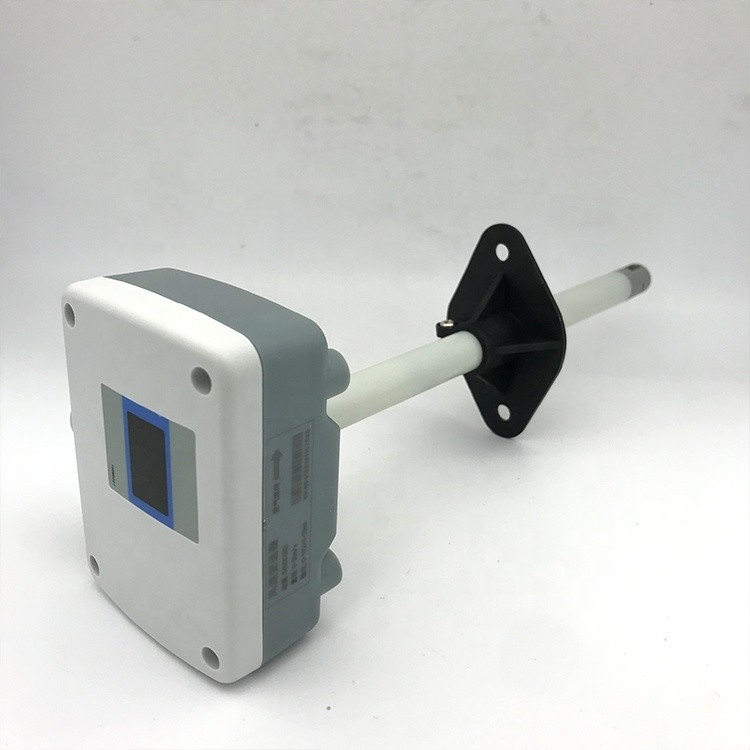

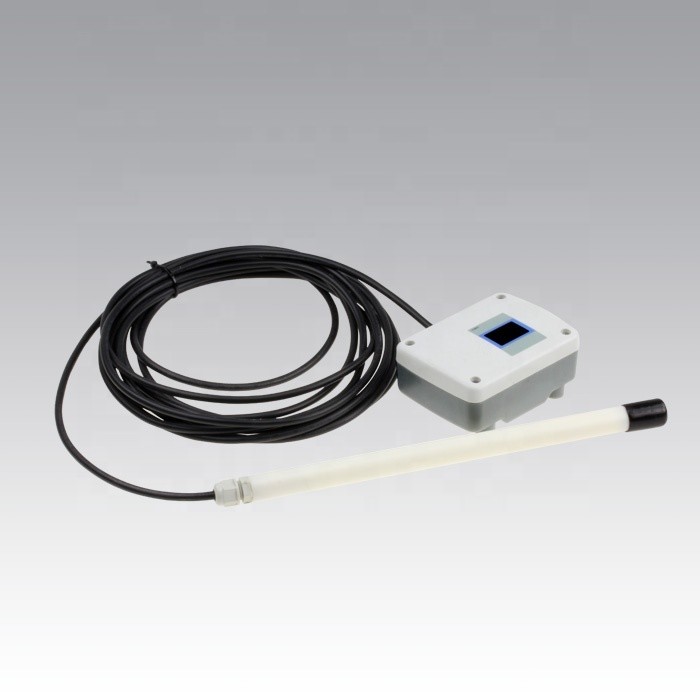

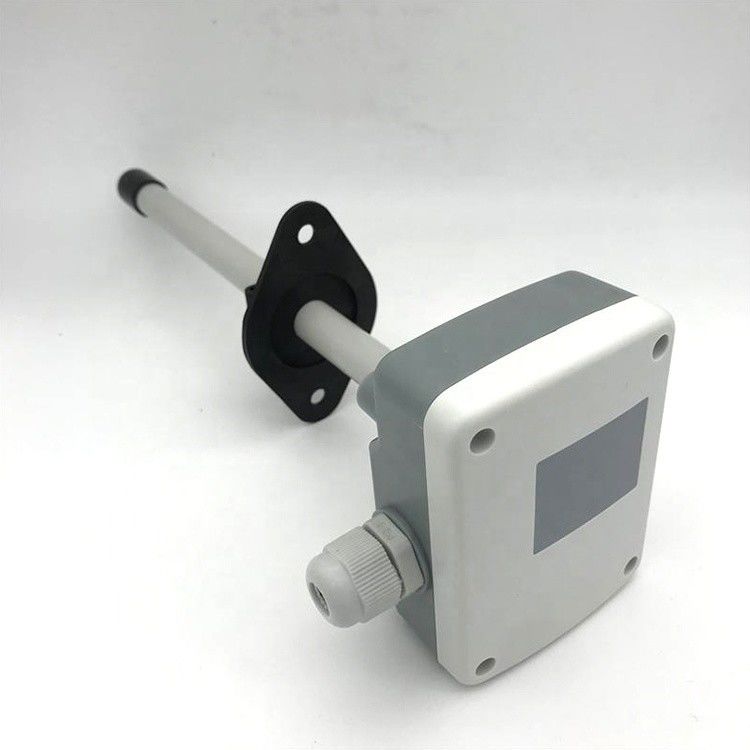

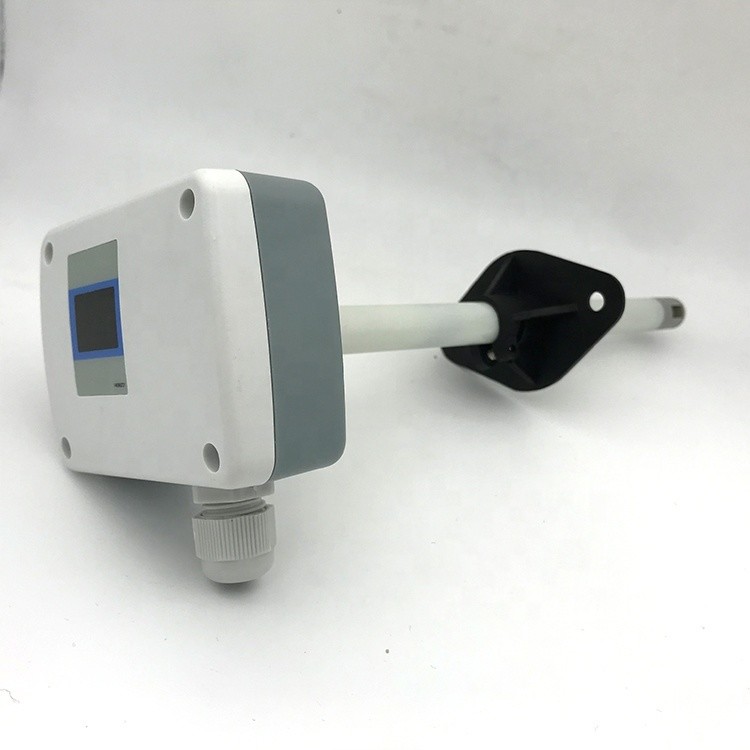

AF410C2 mini air velocity transmitters were developed to obtain accurate measuring results over a wide range of velocity and temperature. A high-quality hot film sensor element based on cutting- edge thin film technology ensures maximum sensitivity, even at lowest mass flows.At the same time, the innovative probe design produces reliable measuring results at high flow velocities of up to 30m/s . The integrated temperature compensation minimise the temperature cross-sensitivity of AF410C2 which combined with the robust mechanical design.In addition to air velocity and temperature values, The cross section of the duct needs to be determined for this purpose and the volume flow rate can be and directed to one of the analogue output. AF410C2 can be used to the narrow space and measure very low velocity .For HVAC, Ventilation, Air-condition, Purification, Lab, Purification Workshop...
Specifications |
|
Power Supply | 12V DC/AC 24V DC/AC 5VDC/AC {Customization} |
Measure Range | 0-5m/s 0-10m/s 0-15m/s 0-20m/s 0-30m/s |
Output | 0-5V 0-10V 0-20mA 4-20mA Rs485{modbus-RTU} |
Measure Accuracy | ±{0.2m/s +3%of MV} |
Consumption | 2.5W |
Protection Rating | IP65 |
Response Latency | 0.2 s |
Resolution | 0.01m/s |
Sensing Elements | Thermal film sensor |
Working Environment | Temperature: -20-85ºC Humidity:5%-95% |
Probe Length | Installation of flange :150mm / Customization |
Material of Probe | ABS Engineering plastic |
Parameters to be provided for order: pipe diameter? Output signal? Voltage? We will choose the best products for you!
Q1) Can you make the goods based on our requirement?
Yes, any kind of OEM design is warmly welcomed, and send me your deatiled request and we will try our best to meet.
Q2) How can I get the samples?
We can provide samples according to your request. However, pls be kind in pay the sample cost and freight, and sample cost will be fully returned when mass order confirmed. For some range, we can provide you free samples (Within 2pcs), you juest need to pay the postage.
Q3) What's the delivery time ?
For common ranges, we have a number of inventory, we could dispatch them immediately. For small order, it needs about 3 days. For large order, it needs 1-3 weeks depending on quantity.
Q4) How can I trust you?
We're engaged in this field for about 10 years. we have good experience in domestic trade and export trading. We have our own factory, always welcome your visit.
