Detail Information

Warranty:	12 Month	Customized Support:	OEM, ODM, OBM
ORP:	1900	PH:	14
Accuracy:	+ 0.02	Resolution:	0.01
Stability::	≤ 0.02	PH Standard Solution::	4.01/6.86/9.18
Display Mode::	128 * 64 Dot Matrix LCD	Temperature Compensation::	0 100 ℃
Signal Output::	4-20mA	Power Supply::	AC 220 V ± 10% 50 Hz
Port:	Tianjin

Product Description

Specification

Packing & Delivery

Company Profile

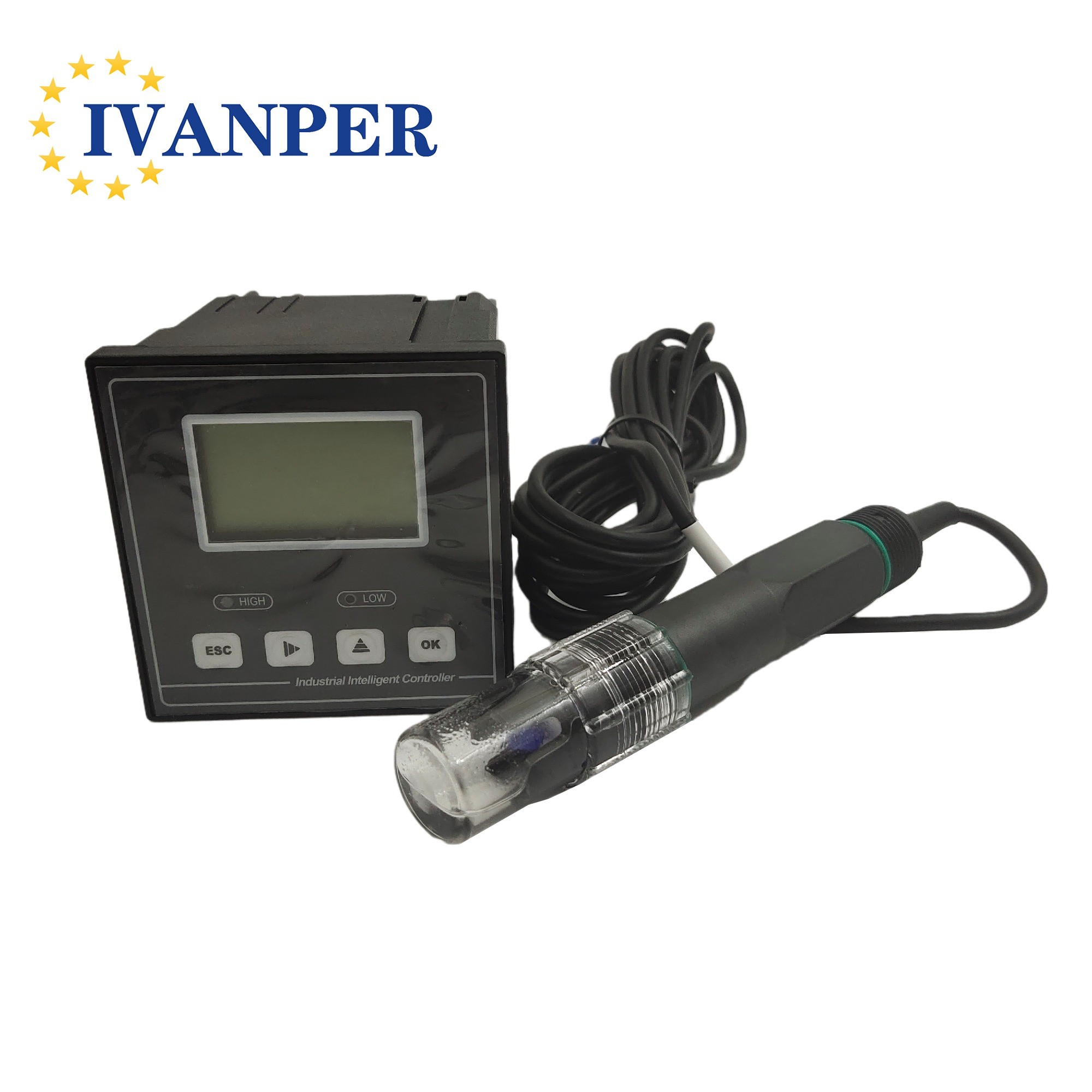

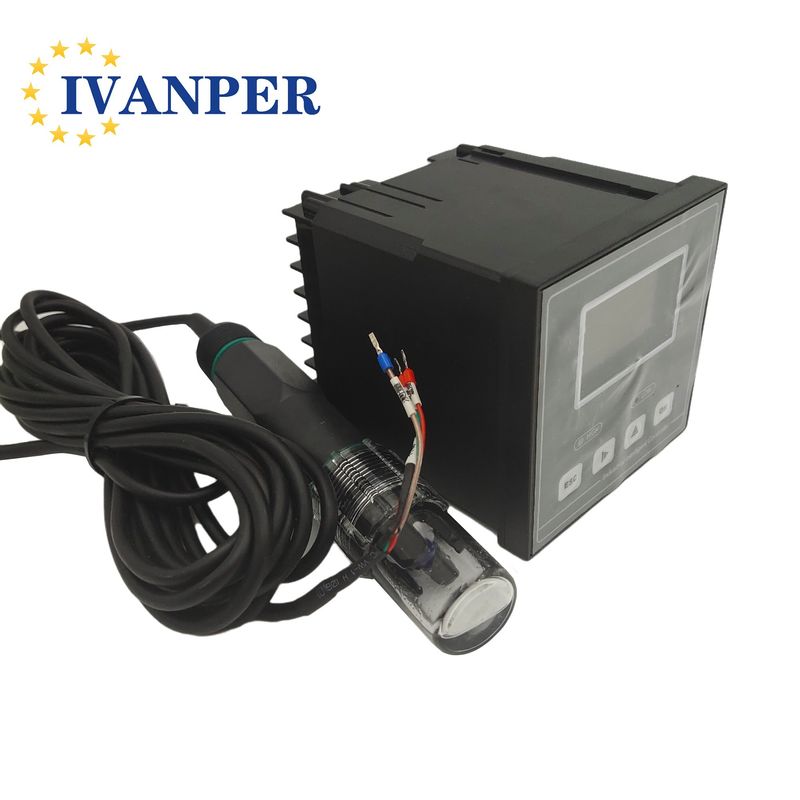

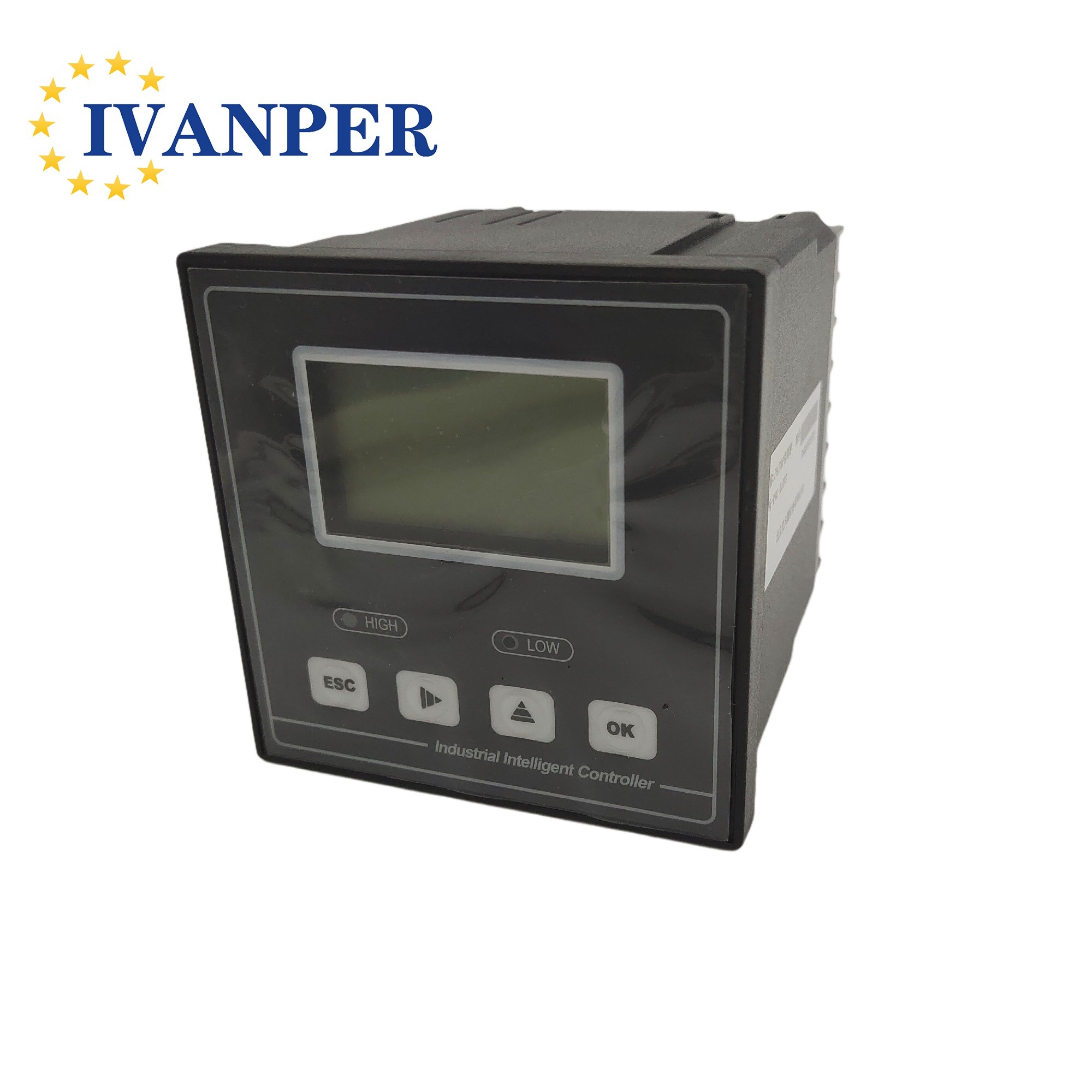

Phg-2250 industrial pH meter is an intelligent upgraded product of industrial pH meter, which can continuously measure and control
the pH value of sewage. This device is applicable to urban sewage treatment plant, chemical industry, printing and dyeing, paper
making, pharmaceutical industry, electroplating, environmental protection and other fields.
According to the environment and characteristics of the water industry, combined with the international power supply standard, the
electrical design code for special environment is considered, and the selection of 220V AC (phg-2250a) and safe low voltage 24V
AC, 24V DC (phg-2250b) power supply is added.

Main features:

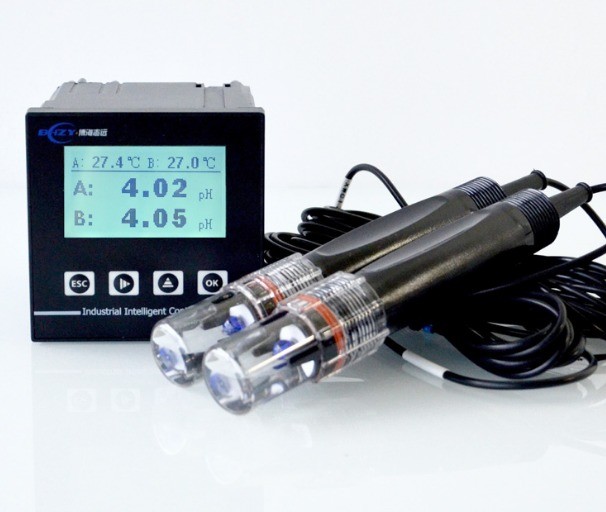

128 * 64 lattice LCD, large screen dual channel display
Three configuration modes: dual pH, dual ORP, one pH and one ORP
Factory standard configuration Chinese interface, language menu
It can measure the pH / ORP of two channels, control the upper and lower limits
It can be set to automatic temperature compensation or manual temperature compensation
PH high limit alarm, low limit alarm two-way relay, the hysteresis can be adjusted freely
The audible alarm can be switched on and off through the interface options
LCD backlight can choose energy-saving mode and turn off automatically at fixed time
High performance CPU, good EMC performance
Password management function to prevent misoperation of non professionals

Main technical indicators:
Measuring channel: two channels
Measurement range: pH (0 – 14 pH); ORP (- 1999 - + 1999 MV)
Accuracy: + 0.02 pH; + 1 MV
Resolution: 0.01ph; 1mV
Stability: < 0.02 pH / 24h; < 3 MV / 24h
PH standard solution: 4.01/6.86/9.18
Display mode: 128 * 64 dot matrix LCD
Temperature compensation: 0 – 100 ℃ manual / automatic (ntc10k)

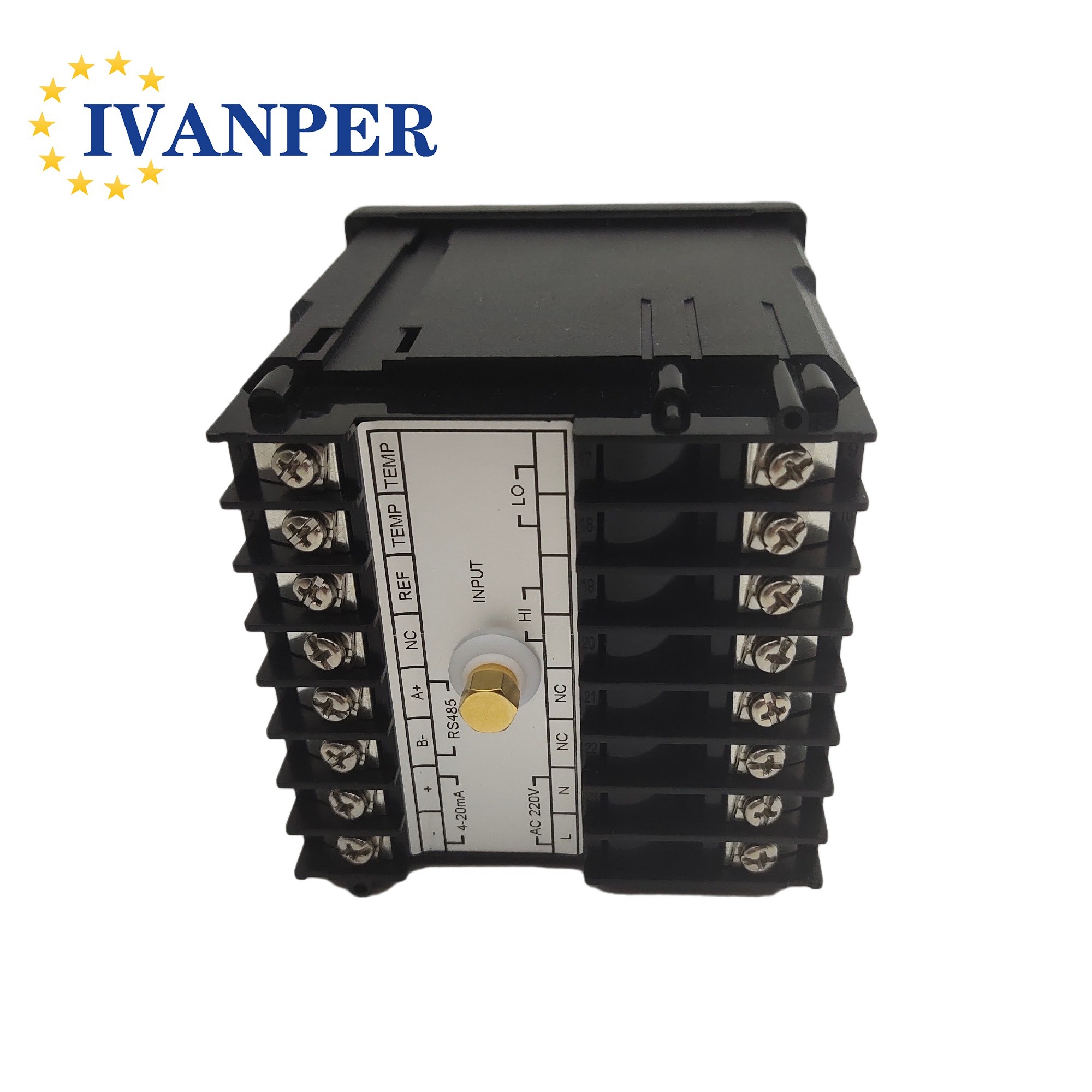

Alarm output: two high and low limit alarm contacts, four sets of normally open contact relays (3a / 250 V AC),
Power supply: AC 220V ± 10% 50Hz
Power consumption: ≤ 3W
Environmental conditions: (1) temperature 0-60 ℃ (2) humidity ≤ 85% RH
Boundary dimension: 96 × 96 × 110mm (H × w × d)
Opening size: 92 × 92mm (H × w)
