| Place of Origin: | China |
|---|---|
| Brand Name: | IVANPER |
| Model Number: | AF210x |
| Price: | $300.00/stones 1-49 stones |
| Packaging Details: | Carton |
| Supply Ability: | 2000 Piece/Pieces per Month |
| Warranty: | 12 Months | Type: | Industrial |
|---|---|---|---|
| Customized Support: | OEM, ODM | Product Name: | Speed Meter Velocimetry |
| Port: | Tianjin |

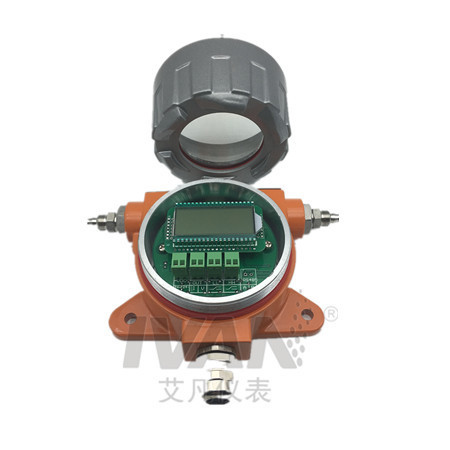

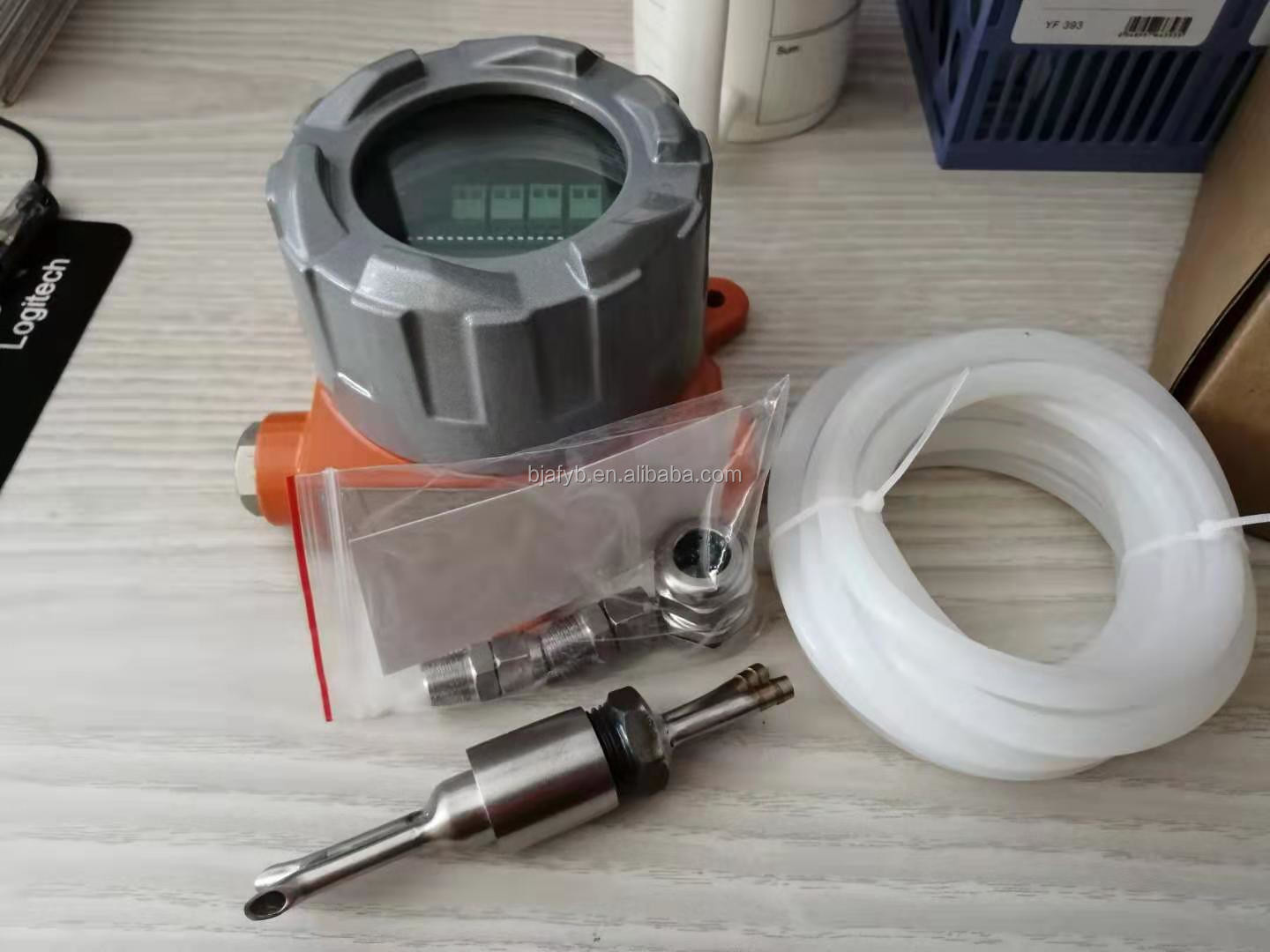

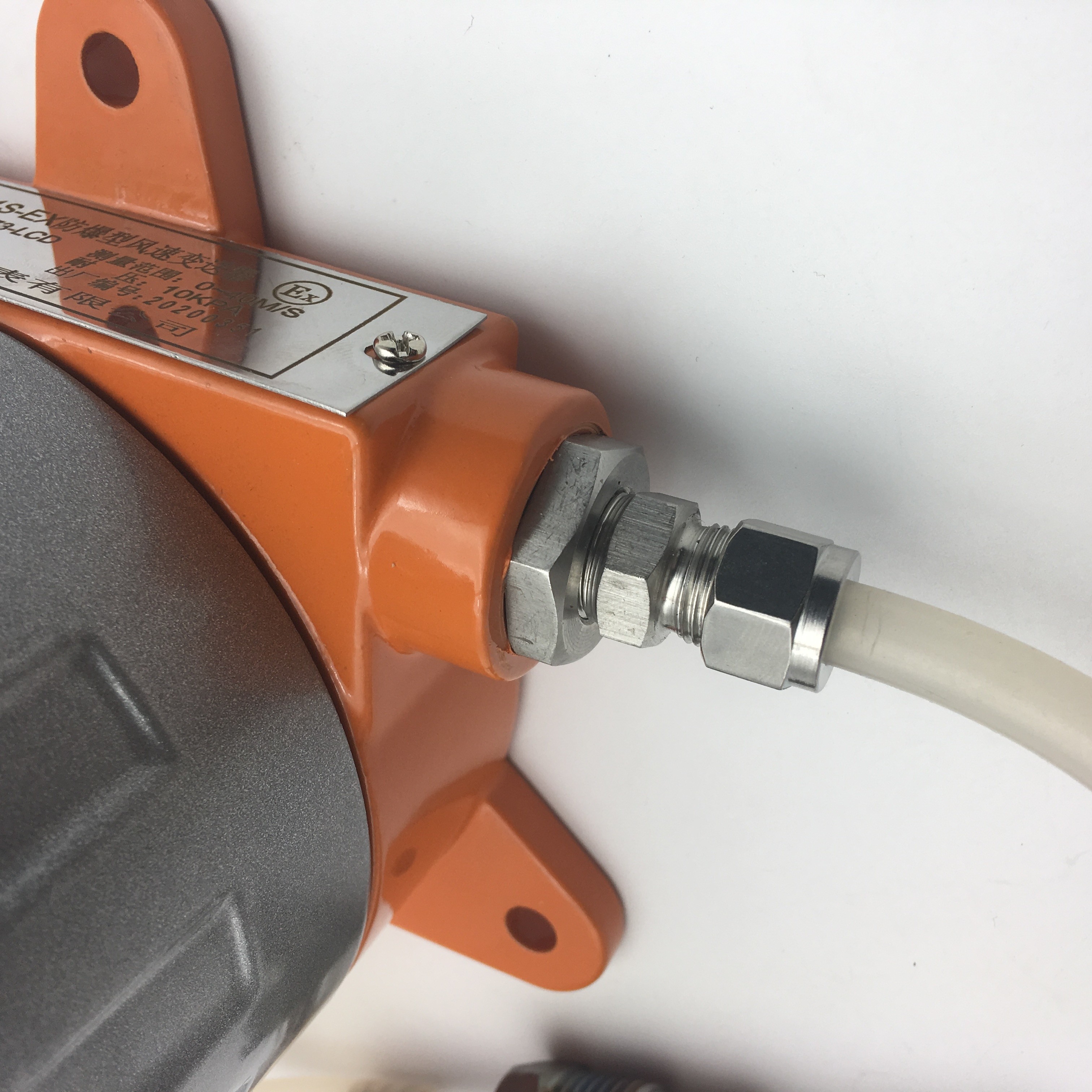

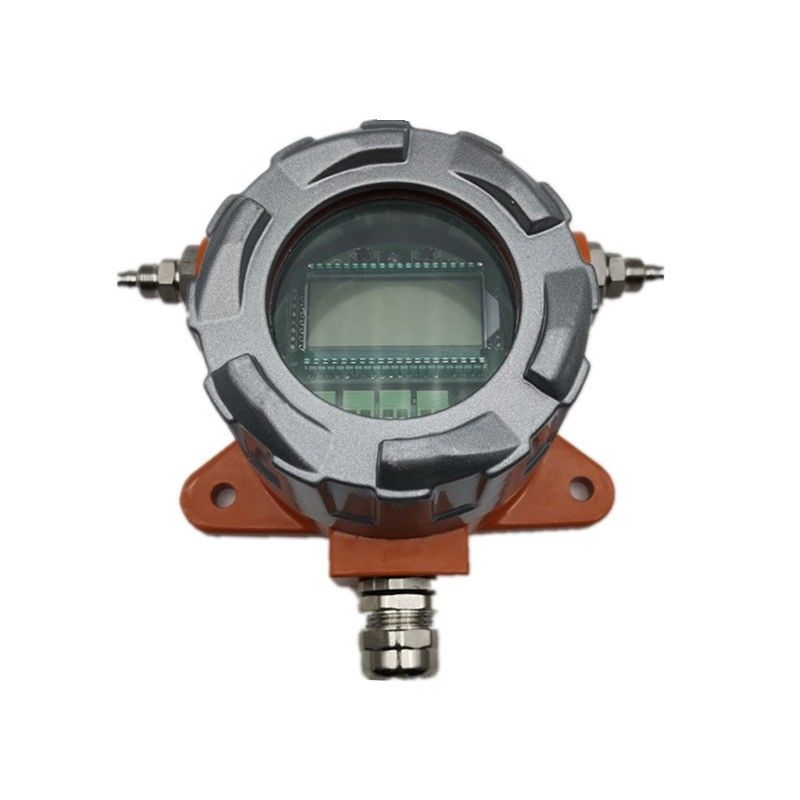

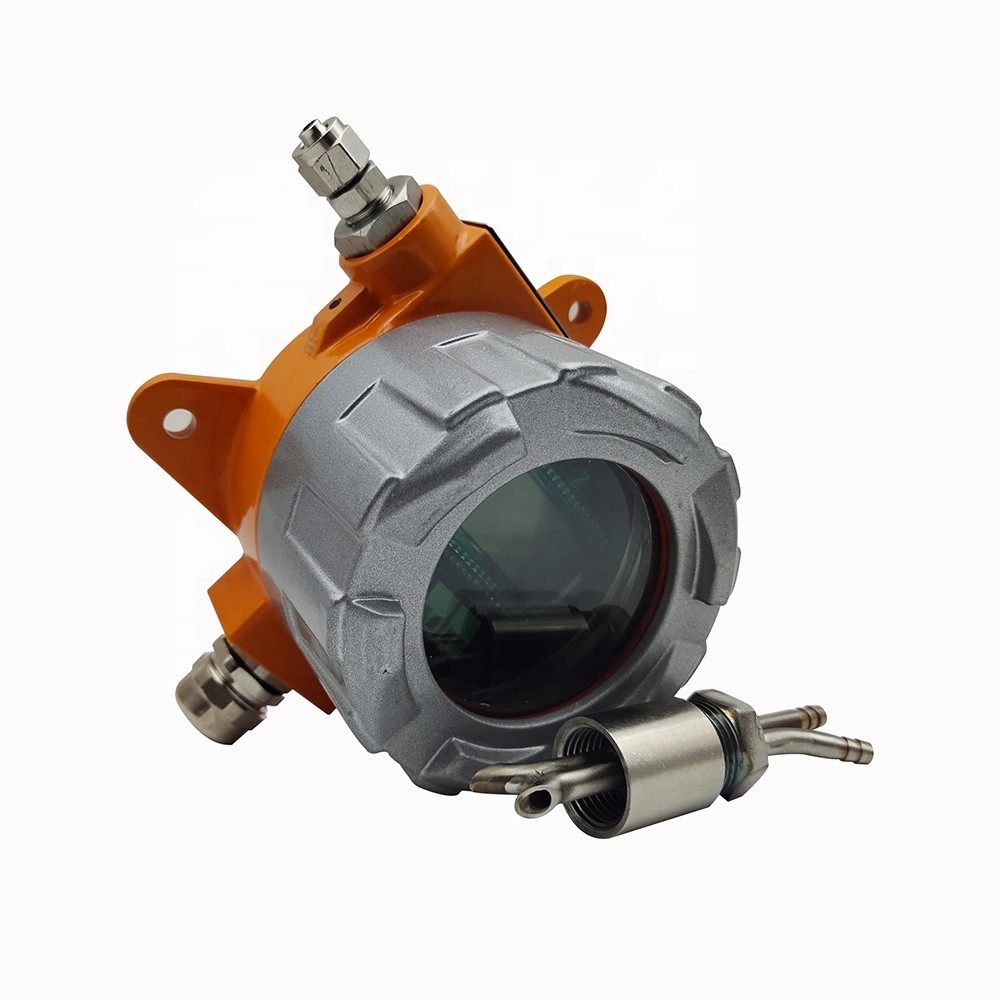

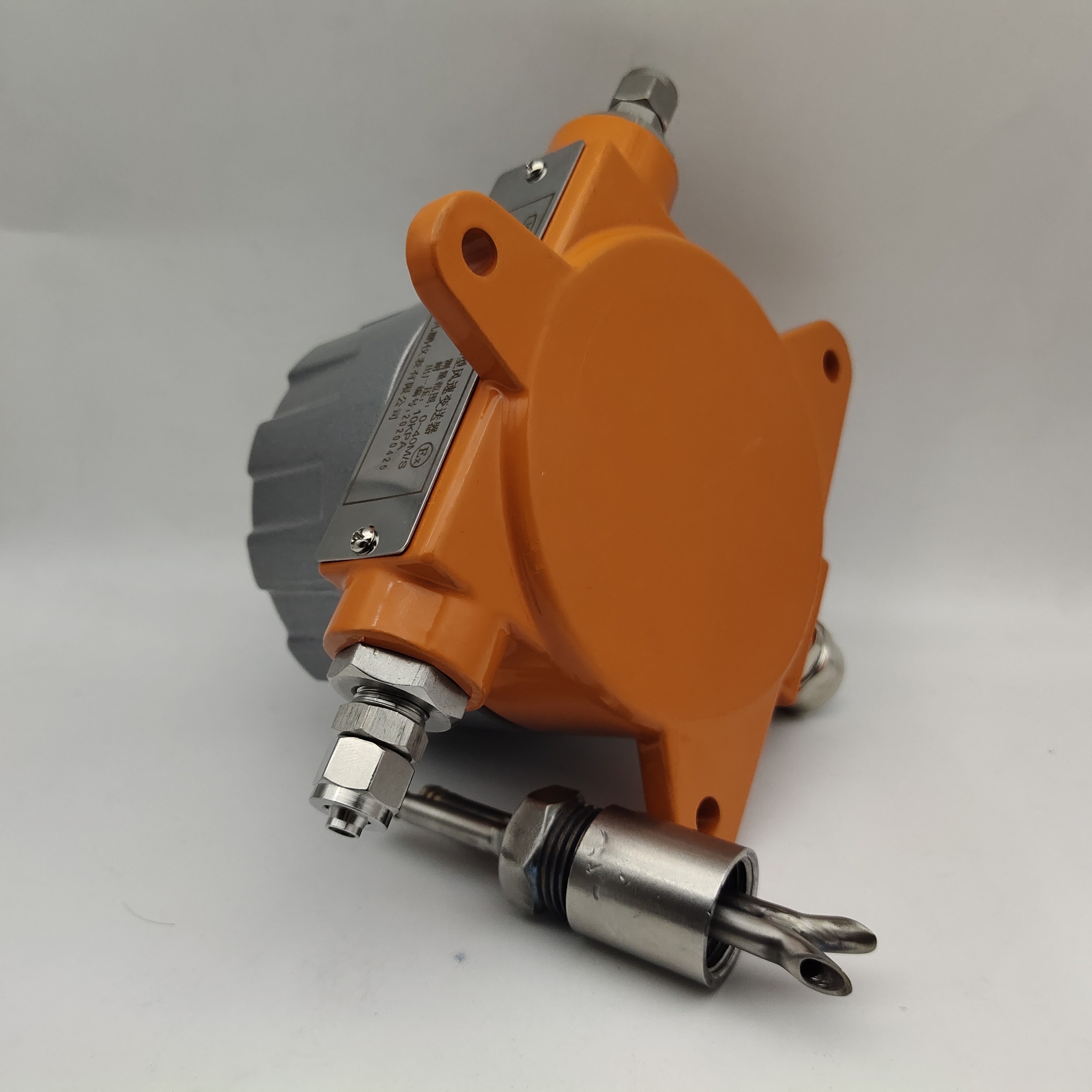

Hot Sale Air Velocity Sensor For Industrial Environment
air velocity transmitters were developed to obtain accurate measuring results over a wide range of velocity and temperature. A high-quality hot film sensor element based on cutting- edge thin film technology ensures maximum sensitivity, even at lowest mass flows.At the same time, the innovative probe design produces reliable measuring results at high flow velocities of up to 30m/s . The integrated temperature compensation minimise the temperature cross-sensitivity of AF410C2 which combined with the robust mechanical design.In addition to air velocity and temperature values, The cross section of the duct needs to be determined for this purpose and the volume flow rate can be and directed to one of the analogue output. AF410C2 can be used to the narrow space and measure very low velocity .For HVAC, Ventilation, Air-condition, Purification, Lab, Purification Workshop...
| Specifications |
|
| Power Supply | 12V DC/AC 24V DC/AC 5VDC/AC {Customization} |
| Measure Range | 0-5m/s 0-10m/s 0-15m/s 0-20m/s 0-30m/s |
| Output | 0-5V 0-10V 0-20mA 4-20mA Rs485{modbus-RTU} |
| Measure Accuracy | ±{0.2m/s +3%of MV} |
| Consumption | 2.5W |
| Protection Rating | IP65 |
| Response Latency | 0.2 s |
| Resolution | 1m/s
|
