| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | IVANPER |
| Model Number: | AF410D2 |
| Minimum Order Quantity: | 10 units |
| Price: | $95.00/units 10-49 units |
| Packaging Details: | carton |
| Supply Ability: | 500 Unit/Units per Week |
| Warranty: | 12 Month | Type: | Industrial |
|---|---|---|---|

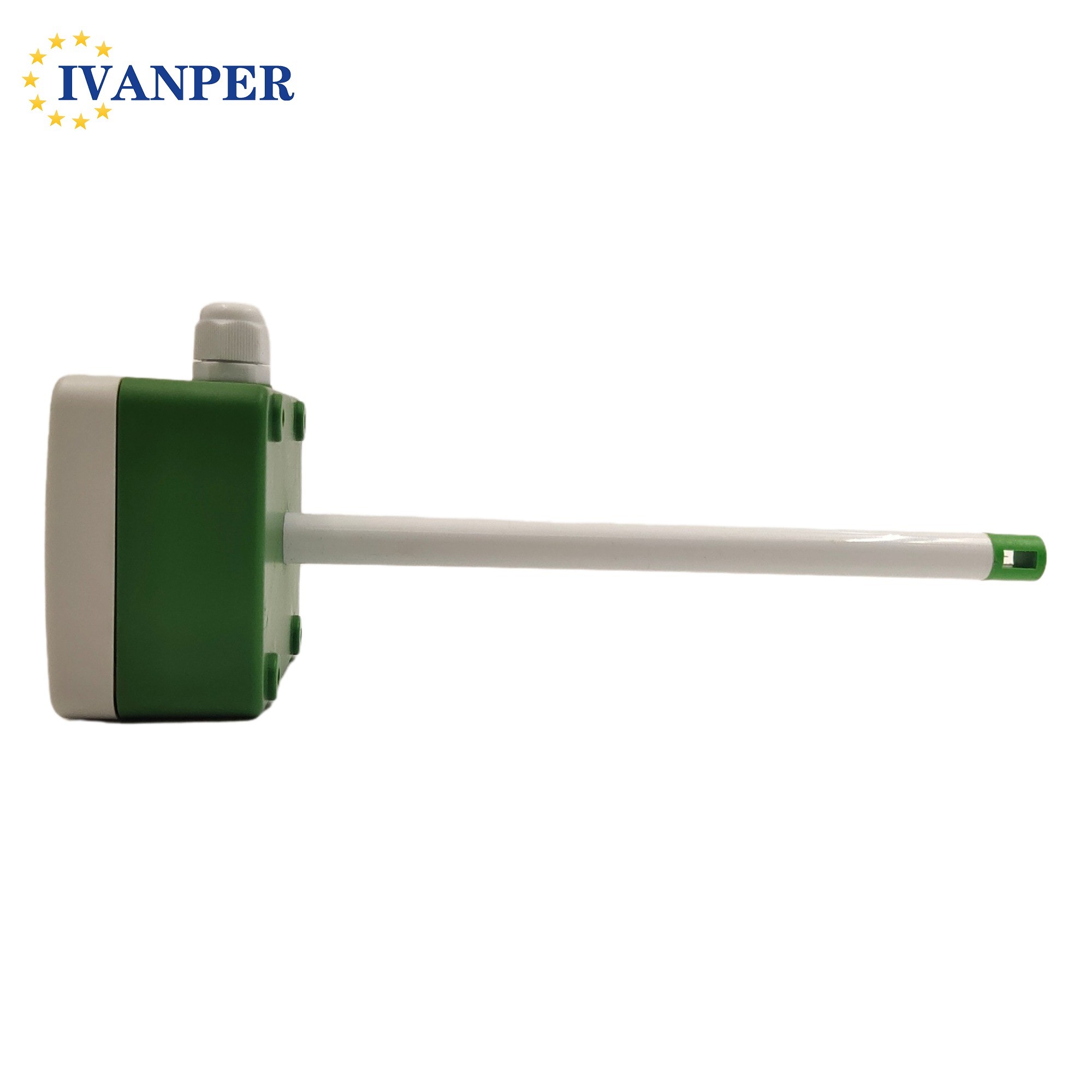

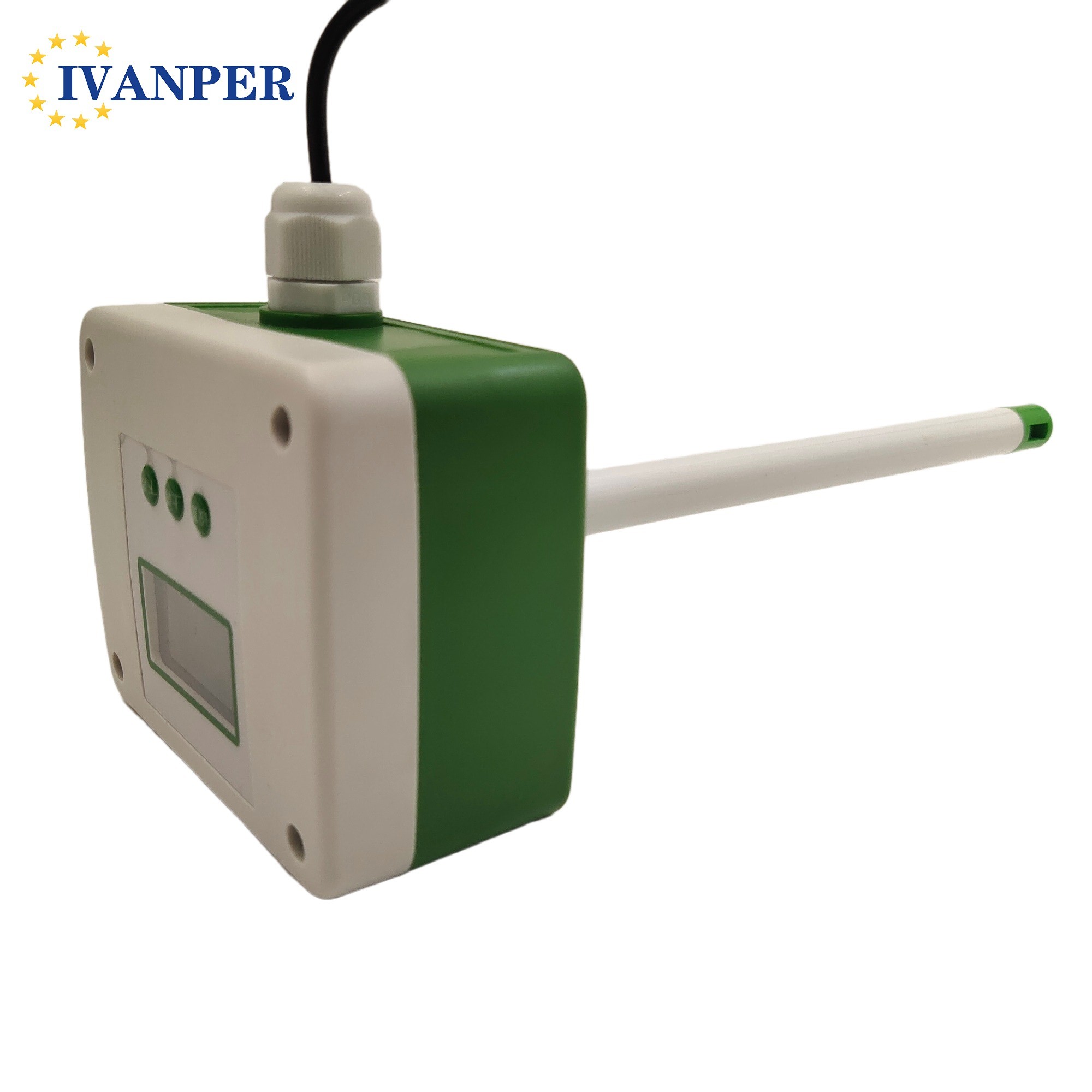

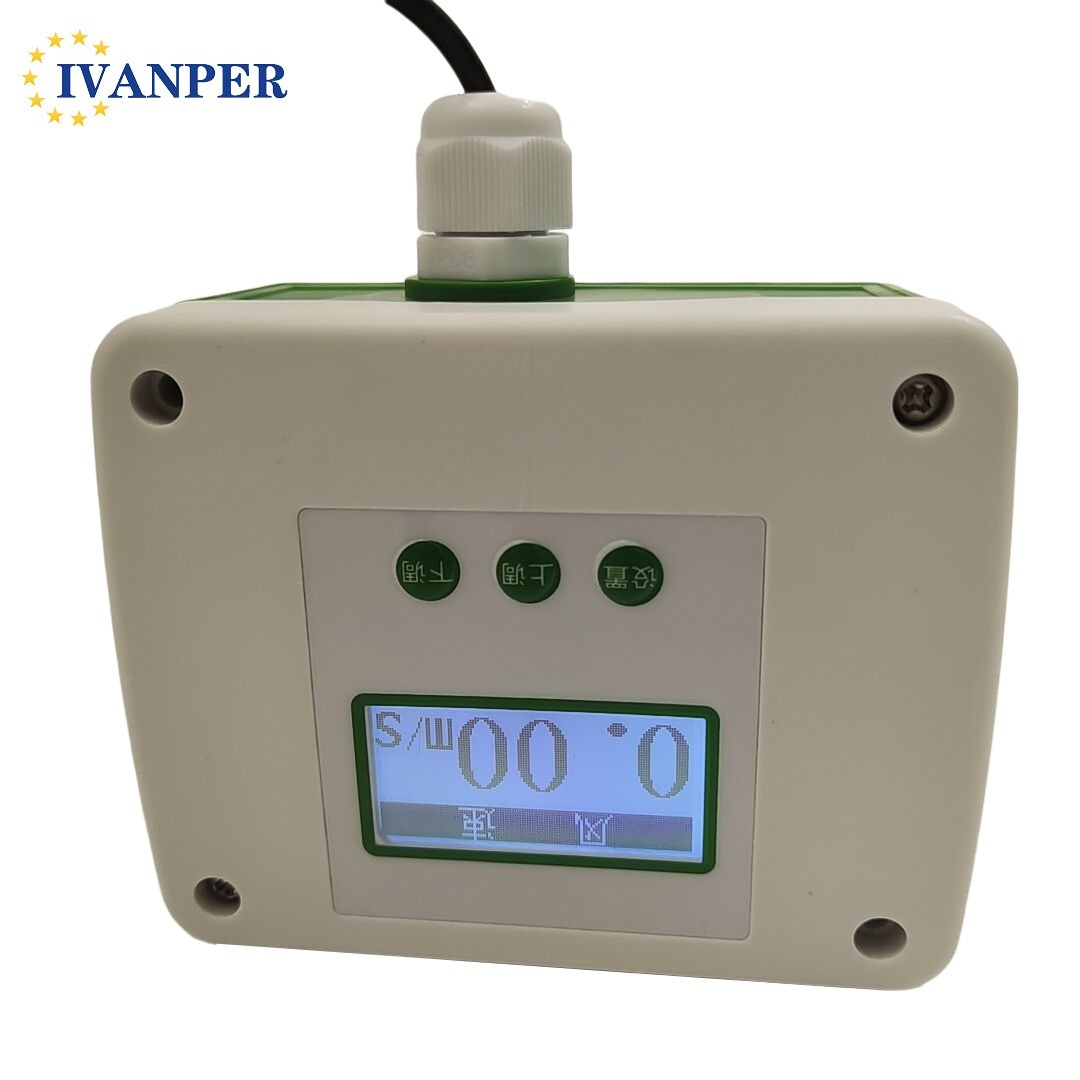

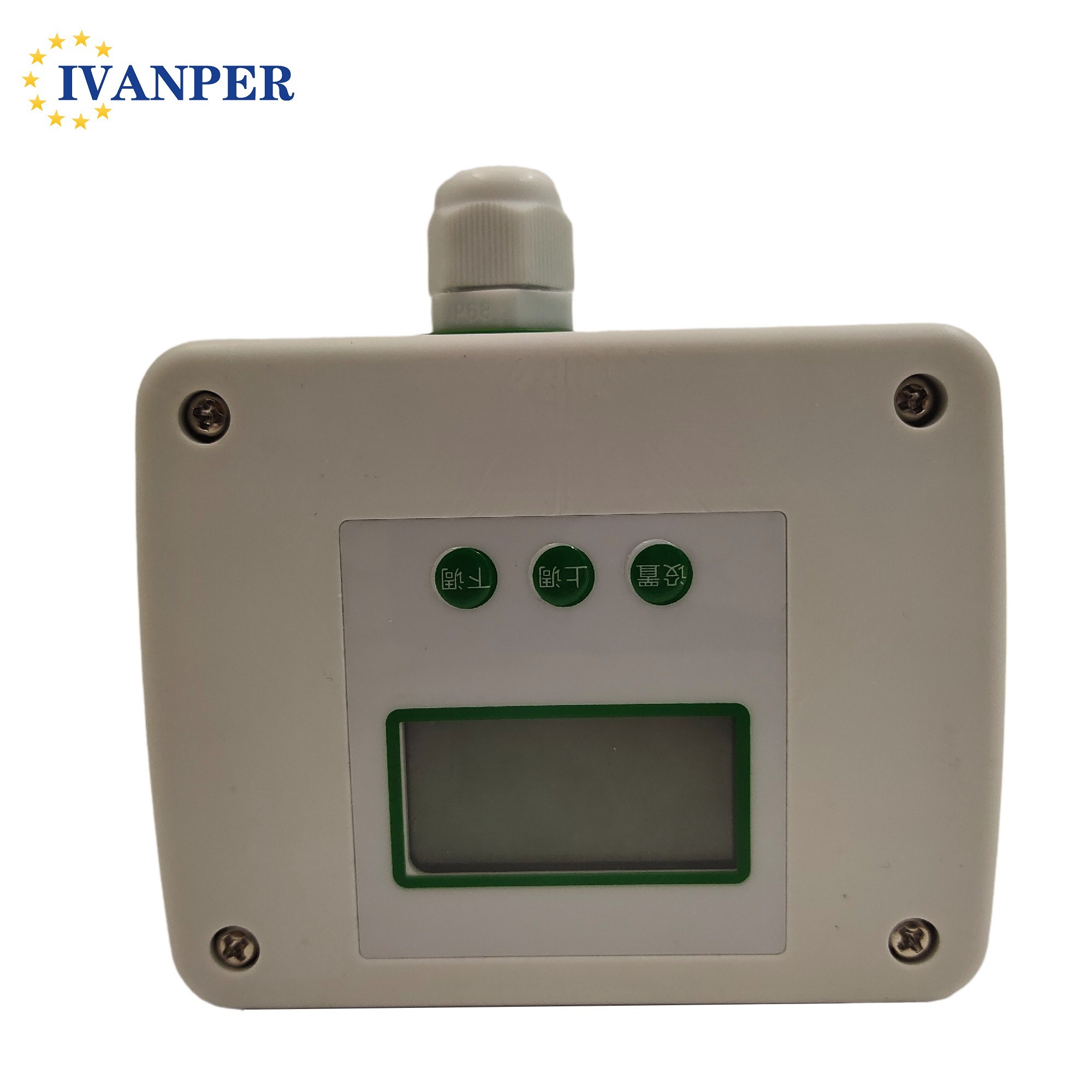

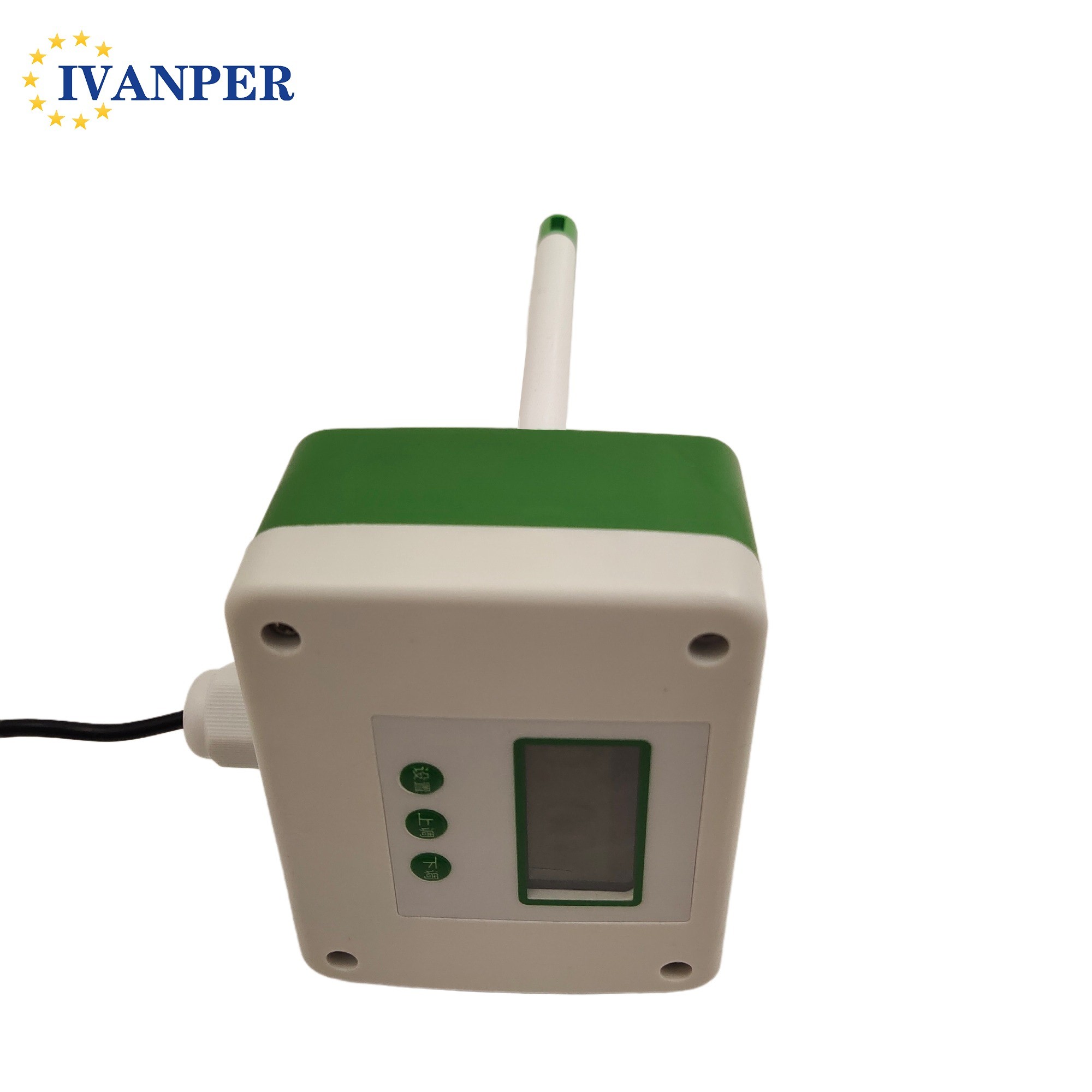

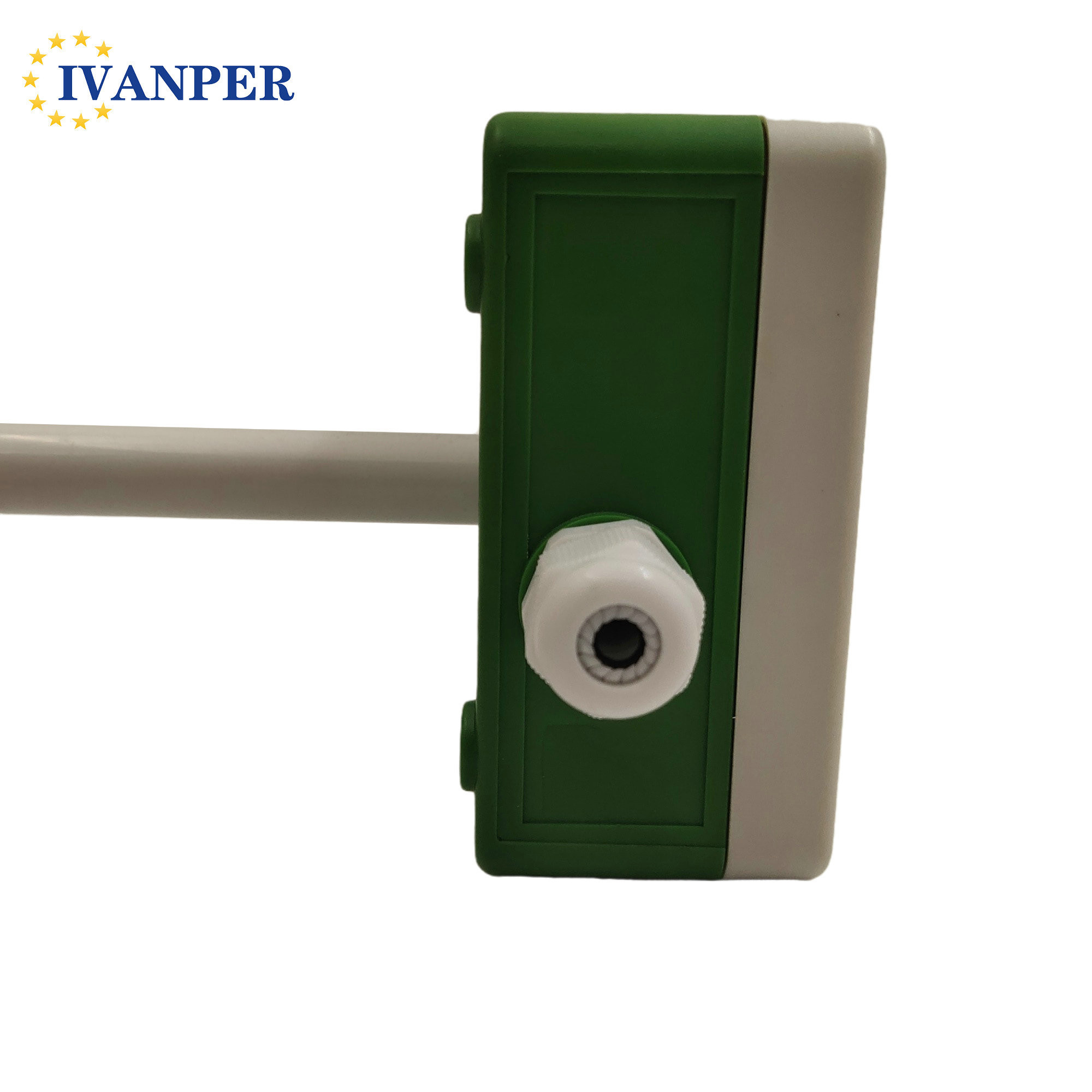

| Customized Support: | OEM, ODM | Product Name: | Wind Speed & Volume Sensor |
| Power Supply: | 24VAC/DC±20% | Measure Range: | 0-10M/S, 0-15M/S, 0-20M/S, 0-25M/S, 0-30M/S, 0-40M/S, 0-50M/S,0-60M/S |
| Output: | 4-20ma, 0-1OV, RS485, Can Be Added With Switch | Accuracy: | ±(0.2m/s+3 % Of M. V.) |
| Response Time: | 0.1s (at Constant Temperature) | Working Current: | 70mA (DC Max,) |
| Material: | Polycarbonate, UL94V-0 Approved | IP Grade: | Shell IP65, Probe IP00 |
| Working Humidity: | 5-95% RH (no Condensation) | Port: | Tianjin |
Power Supply | 24VAC/DC±20 % |
Measurement Range | 0-5M/S, 0-10M/S, 0-15M/S, 0-20M/S, 0-25M/S, 0-30M/S, 0-40M/S, 0-50M/S,0-60M/S |
Output | 4-20ma, 0-1OV, RS485, Can be added with switch |
Accuracy | 20°C(68°F), bei 20°C, 45%, rF, 1013 hPa, 0.2-1 Om/s, 0.2~30m/s, 0.2~40m/s, ±(0.2m/s+3 % of m. v.) |
Response time | 0.1s (at constant temperature) |
Working current | 70mA (DC Max.) |
Electromagnetic compatibility | EN61326-1, EN61326-2-3, Industrial Environment |
Material | Polycarbonate, UL94V-0 approved |
IP grade | Shell IP65 |
Temperature | Probe: -25~50℃ Electronic: -10~50℃ Storage: -30~50℃ |
Working humidity | 5~95% RH (no condensation) |
