Affordable Wind Speed Sensor for Air IP65 Grade and Long-Lasting 24V DC/AC Power Supply

Basic Information
Place of Origin: Beijing, China
Brand Name: IVANPER
Model Number: AF410
Minimum Order Quantity: 10 units
Price: $80.00 - $95.00/units
Packaging Details: carton
Supply Ability: 500 Unit/Units per Week
Detail Information
Warranty: 12 Month Customized Support: OEM
Product Name: Wind Speed Sensor Power Supply: 24V DC/AC
Measure Range: 0~10m/s, 0~15m/s, 0~20m/s, 0~30m/s Output: 0~10V, 4~20mA, RS485(modbus-RTU)
Accuracy: ±(0.2m/s, +3% Of MV) Consumption: 2.5W
IP Grade: IP65 Response Latency: 0.2s

Product Description

Product Description
The transmitter is designed for pipeline wind speed measurement. The self-developed high-precision wind speed measuring unit is responsive and can quickly and accurately measure small wind speeds with good stability, small drift and high precision. The transmitter can also calculate the real- The product adopts anti-interference circuit design, which can withstand various strong electromagnetic interferences such as on-site inverters. The pipeline adopt method is convenient for on-site installation. The equipment adopts imported screw-free terminal wiring, which is more convenient
to use.
Power Supply
24V DC/AC
Measurement Range
0-10m/s 0-15m/s 0-20m/s 0-30m/s
Output
0-10V 4-20mA Rs485(modbus-RTU)
Measurement Accuracy
±(0.2m/s +3%of MV)
Consumption
2.5W
IP Grade
IP65
Response Latency
0.2s
Resolution
0.01m/s
Sensing Elements
Thermal film sensor
Working Environment
Temperature:-40℃~80s℃ Humidty:5%~95%
Probe Length
Installation of flange: 150mm / Customized
Material of Probe
ABS engineering plastic
Rod Diameter
12mm, rod length: 220mm (customized), can be made of aluminum alloy

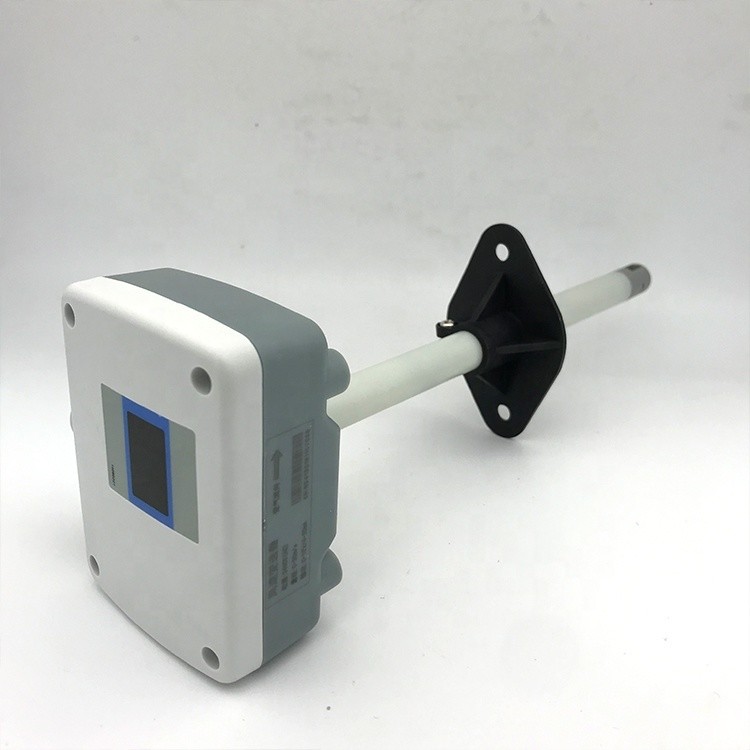

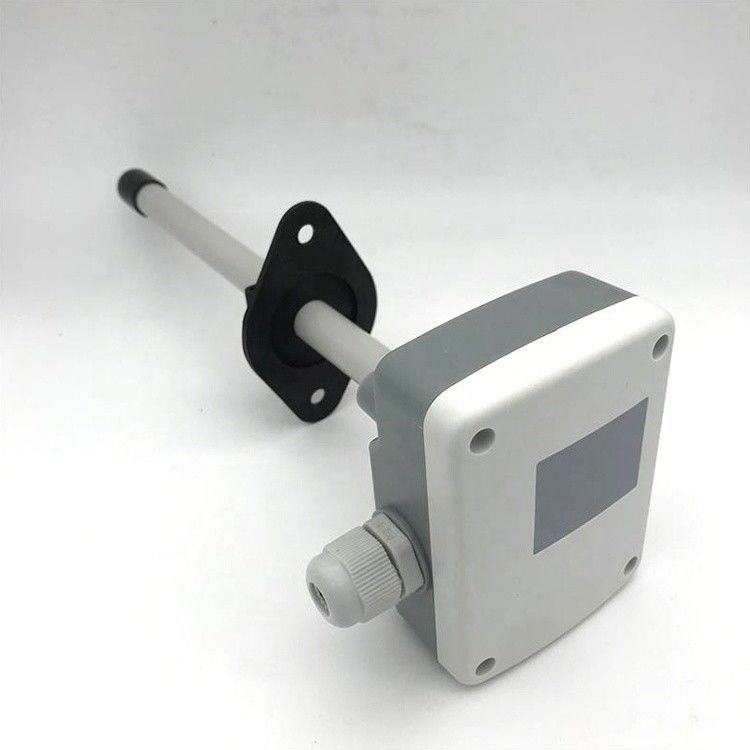

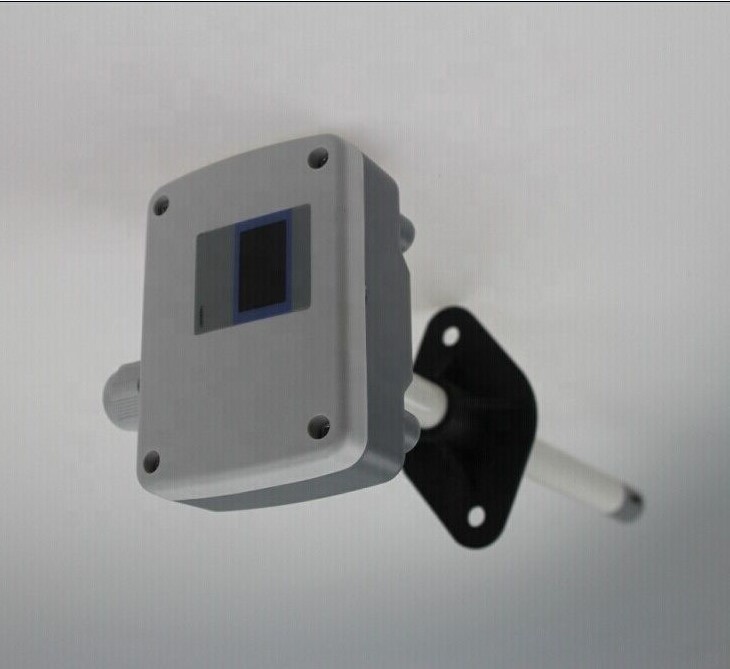

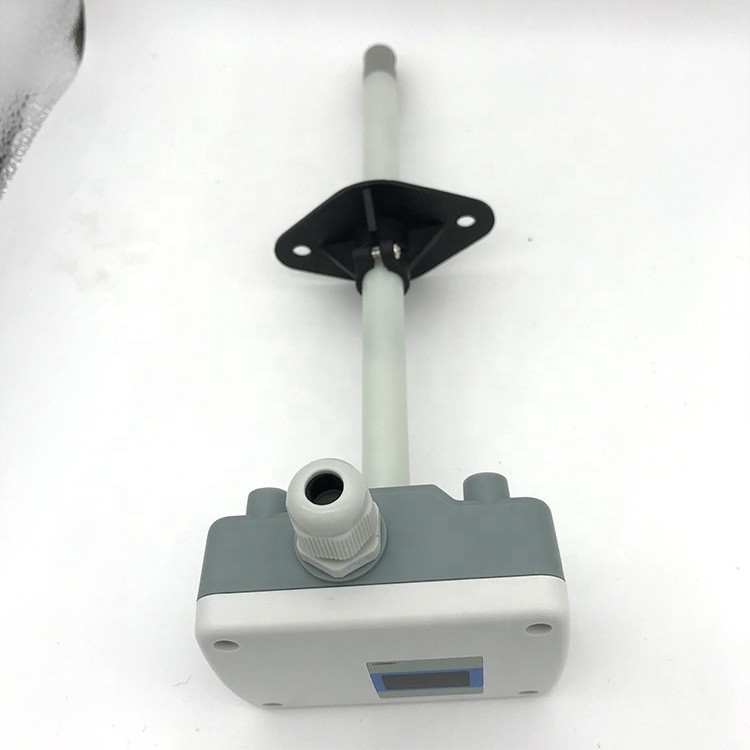

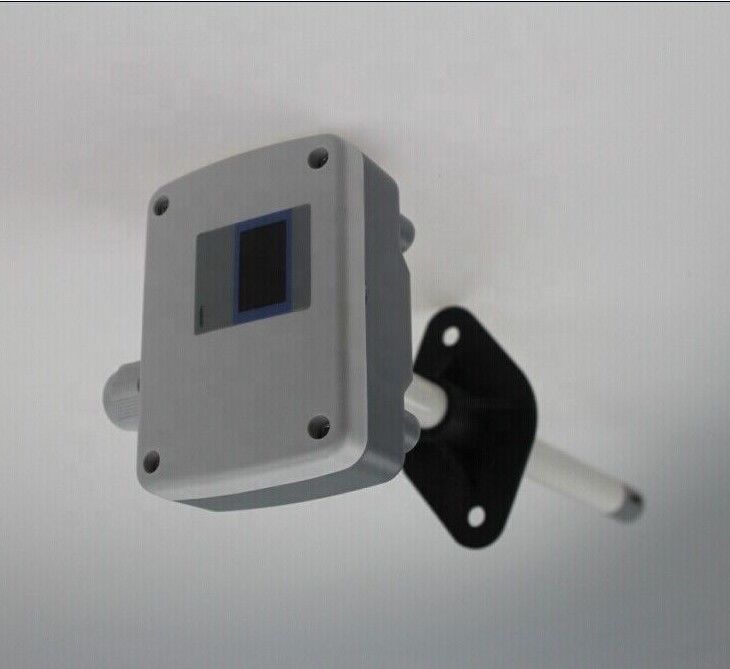

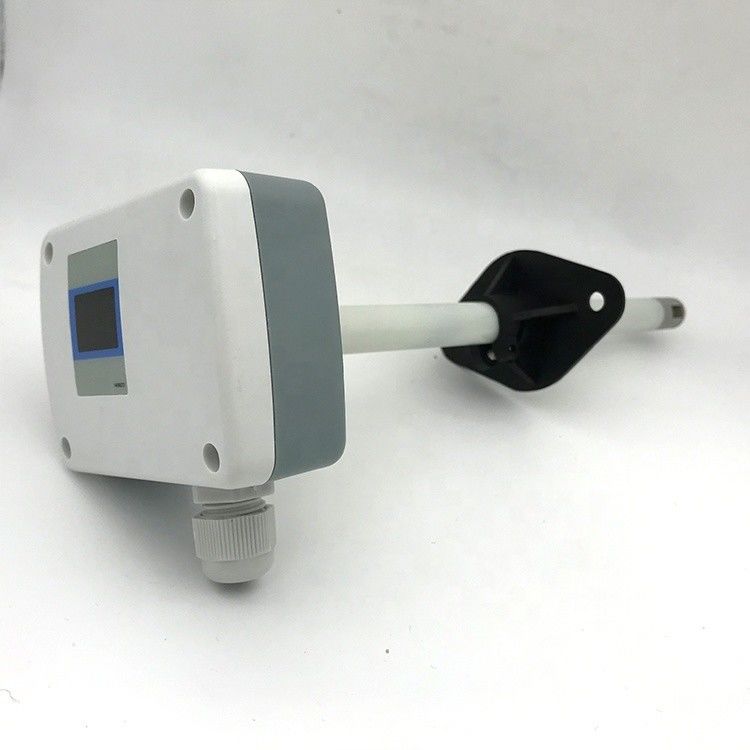

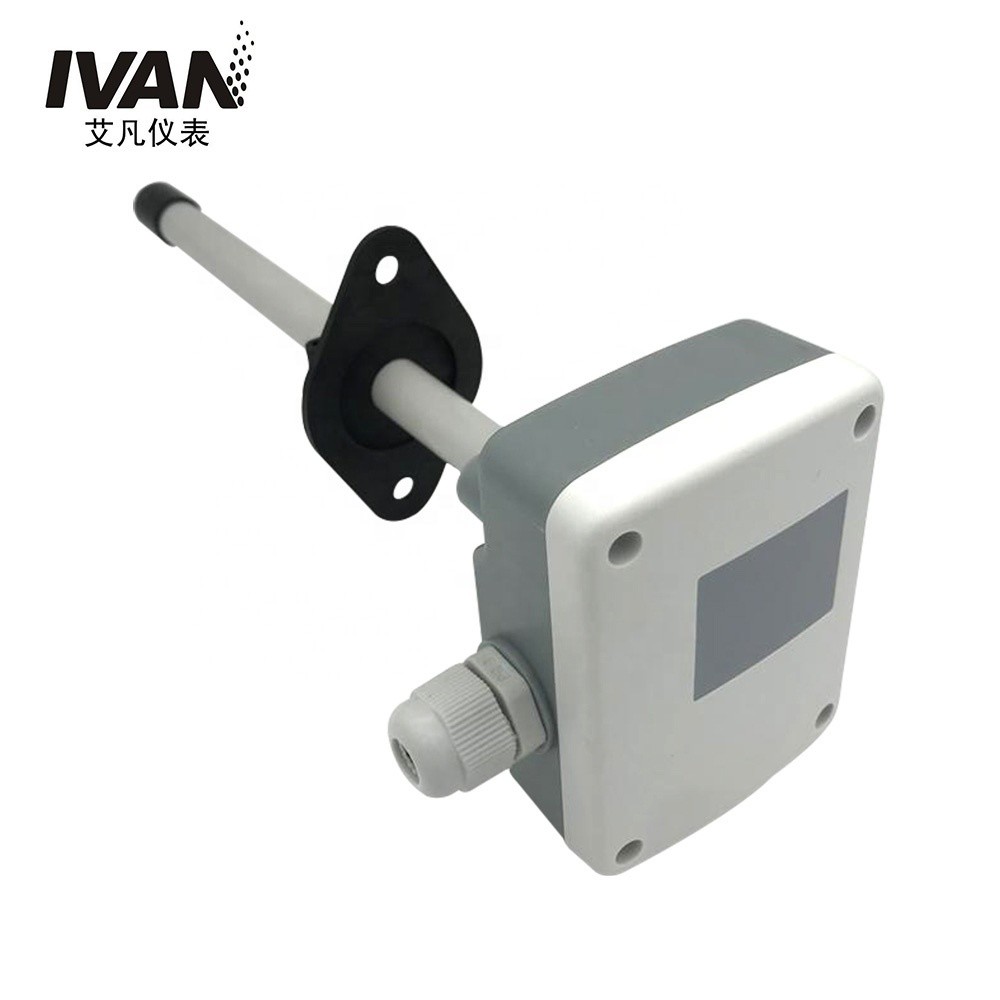

Affordable Wind Speed Sensor for Air IP65 Grade and Long-Lasting 24V DC/AC Power Supply 0
Affordable Wind Speed Sensor for Air IP65 Grade and Long-Lasting 24V DC/AC Power Supply 1
Recommend Products
Packing & Delivery
Affordable Wind Speed Sensor for Air IP65 Grade and Long-Lasting 24V DC/AC Power Supply 2
Affordable Wind Speed Sensor for Air IP65 Grade and Long-Lasting 24V DC/AC Power Supply 3
Company Profile

Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
Affordable Wind Speed Sensor for Air IP65 Grade and Long-Lasting 24V DC/AC Power Supply 4
Exhibition
Affordable Wind Speed Sensor for Air IP65 Grade and Long-Lasting 24V DC/AC Power Supply 5
Certifications
Affordable Wind Speed Sensor for Air IP65 Grade and Long-Lasting 24V DC/AC Power Supply 6
Affordable Wind Speed Sensor for Air IP65 Grade and Long-Lasting 24V DC/AC Power Supply 7
FAQ
Q1. Why choose IVAN?
A: Founded in 2011, IVAN is a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time of IVAN?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about IVAN validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
If you have any questions, please feel free to contact us!
