Budget-Friendly Air Speed Sensor with 0-10V Output and 0-30m/s Measure Range

Basic Information
Place of Origin: Beijing, China
Brand Name: IVANPER
Model Number: AF410
Minimum Order Quantity: 100 boxes
Price: $75.00 - $95.00/boxes
Packaging Details: Carton/wooden box
Supply Ability: 5000 Piece/Pieces per Month
Detail Information
Warranty: 1 Year Type: Online Type
Customized Support: OEM, ODM Product Name: Wind Speed Sensor
Measure Range: 0-10m/s, 0-15m/s, 0-20m/s, 0-30m/s, 0-60m/s Accuracy: ±(0.2m/s+3% Of MV)
Ingress Protection: IP65 Power Supply: 12~30VDC
Output: RS485, 0-10V, 4-20mA Consumption: 2.5W
Response Latency: 0.2s

Product Description

Product Description

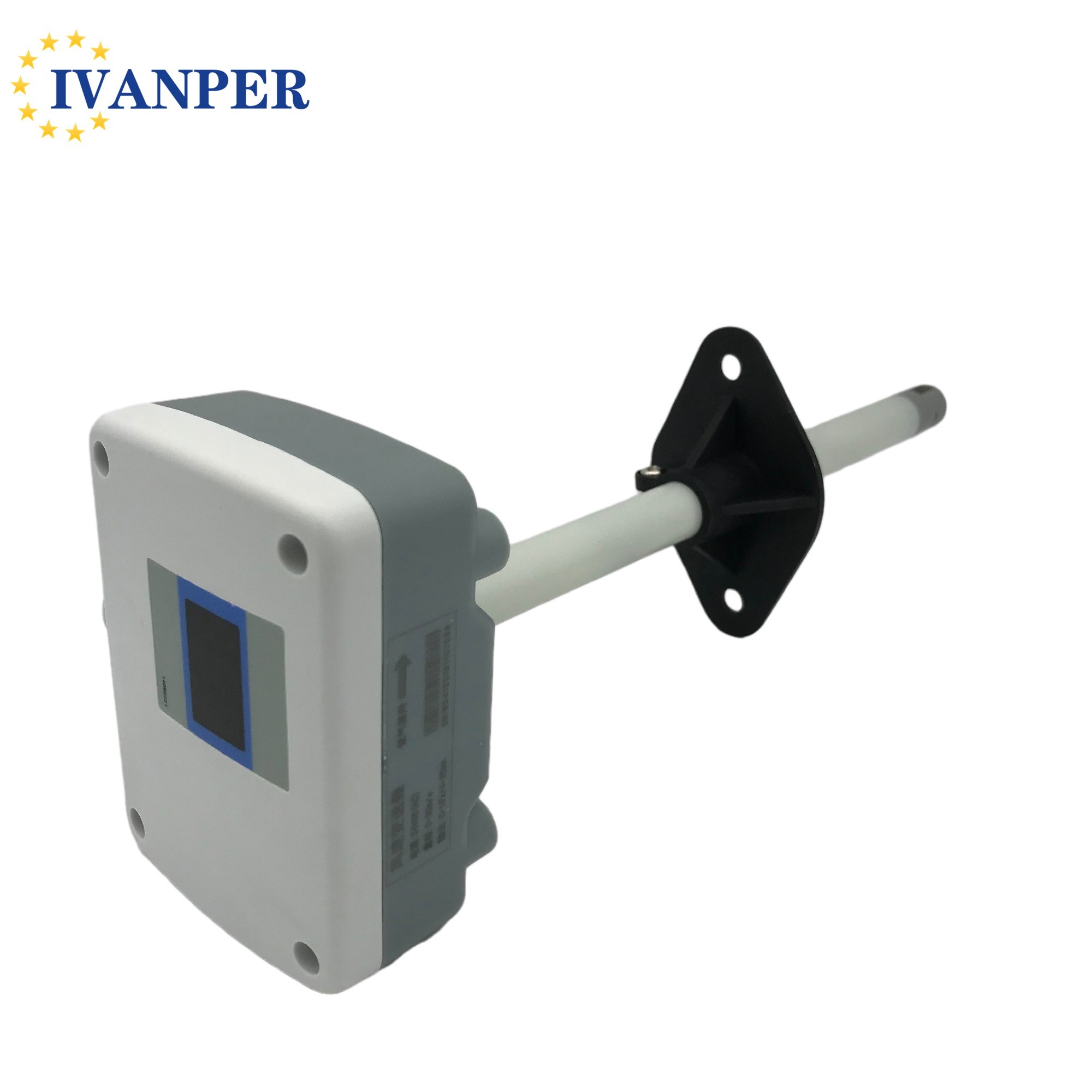

Duct type wind speed sensor [AF-410]
AF-410 series is a high precision and cost-effective wind speed sensor specially provided by our company for HVAC measurement
The ideal choice of wind speed. It takes the innovative hot film anemometer as its working principle, and the high-quality
sensitive elements ensure the measurement flexibility at the minimum wind speed sensitivity. Compared with traditional anemometer using general temperature sensor technology or NTC bead thermistor technology, it has more obvious technology technical advantages. The innovative design of the measuring probe can ensure accurate measurement results even when the wind speed is up to 30 m / s. AF-410 series transmitter. It can meet the application requirements of different environments to the greatest extent.
Specifications
Power Supply
12V DC/AC 24V DC/AC 5VDC/AC {Customization}
Measure Range
0-1m/s 0-2m/s 0-10m/s 0-15m/s 0-20m/s 0-30m/s
Output
0-5V 0-10V 0-20mA 4-20mA Rs485{modbus-RTU}
Measure Accuracy
±{0.2m/s +3%of MV}
Consumption
2.5W
Protection Rating
IP65
Response Latency
0.2 s
Resolution
0.01m/s
Sensing Elements
Thermal film sensor
Working Environment
Temperature: -40-80ºC Humidity:5%-95%
Probe Length
Installation of flange :150mm / Customization
Material of Probe
ABS Engineering plastic
Rod diameter
12mm, rod length: 220mm (customized), can be made of aluminum alloy
Budget-Friendly Air Speed Sensor with 0-10V Output and 0-30m/s Measure Range 0
Budget-Friendly Air Speed Sensor with 0-10V Output and 0-30m/s Measure Range 1
Budget-Friendly Air Speed Sensor with 0-10V Output and 0-30m/s Measure Range 2
Budget-Friendly Air Speed Sensor with 0-10V Output and 0-30m/s Measure Range 3
