| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | IVANPER |
| Model Number: | AF410 |
| Minimum Order Quantity: | 10 units |
| Price: | $93.00/units 10-99 units |
| Packaging Details: | Carton/wooden box |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Warranty: | 12 Months | Type: | ±(0.2+2%FS)m/s |
|---|---|---|---|
| Customized Support: | OEM, ODM | Product Name: | Speed Meter Velocimetry |
| Power Supply: | 12/24VDC | Measuring Range: | 0~70m/s |
| Output: | RS485/ 4-20mA /0~10V | Application: | HVAC Test |
| Material: | ABS | Port: | Tianjin |
| Product Introduction | |

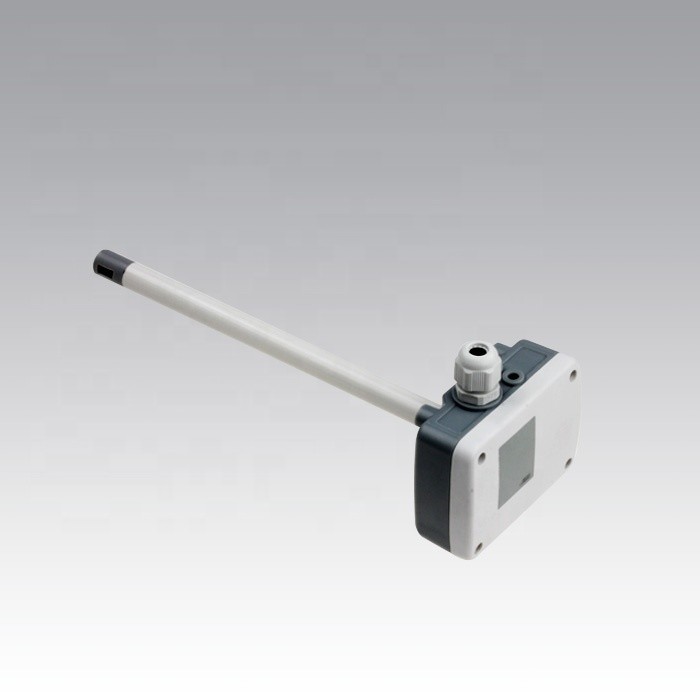

| AF410C Pipeline Wind Speed Sensor is a high precision wind speed measurement product that is responsive and fast and accurate measuring small wind speed, good stability, small drift and high precision. Easy installation on site, anti-jamming circuit design, can withstand various strong electromagnetic interferences such as on-site inverters, used in HVAC, power plant flue gas treatment, pipeline air flow, variable air volume system, wind speed measurement in the operating room, clean room biological laboratory, electronics, medical environment, etc. | |
| Product Features | |

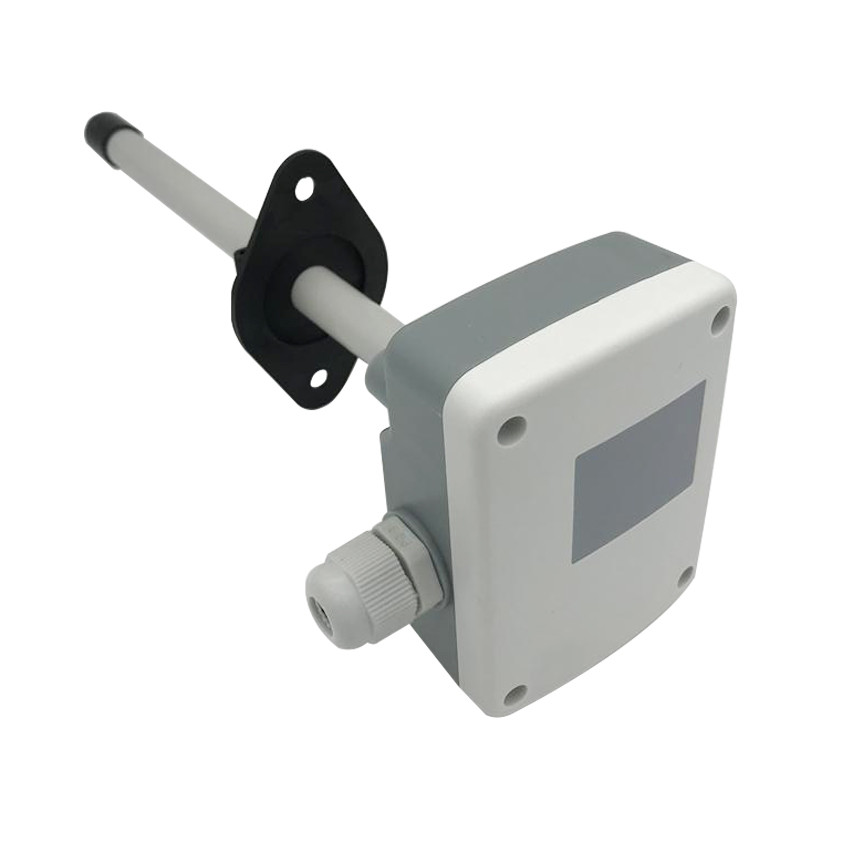

| ♦ High-precision wind speed measuring unit with low starting wind speed and responsive ♦ Open-hole flange mounting with high-quality silicone sealing ring for low air leakage and durability ♦ Dedicated EMC anti-interference device can withstand various strong electromagnetic interferences such as field inverters ♦ Superior performance and long-term stability | |
| Applicable Scope | |
| ♦ Ventilation pipes, fume pipes, etc. ♦ Variable air volume system, operating room, clean room, biological laboratory environment ♦ Wind speed measurement in the fields of electronics and medical environment | |
| Technical Index | |
| Measuring medium | Air, nitrogen, soot exhaust |
| Range | The default is 0~20m/s, and the maximum measurement range is 0~30m/s. |
| Signal output | 4~20mA/0~10VDC?RS485 |
| Operating Voltage | 10~30VDC |
| Accuracy | ±(0.2+2%FS)m/s |
| Maximum power consumption | 0.6W |
| Transmitter circuit operating temperature | -10°C~+50°C |
| Wind speed display resolution | 0.1m/s |
| Long-term stability | ≤0.1m/s/year |
| Response time | 2S |
| waterproof level | IP65 |
3. Note
When you place order,please leave message to tell us which power supply(12V or 24V ) and range(0-5m/s or 0-10m/s or 0-15m/s or 0-20m/s or 0-30m/s) you choose. For example: 24V and 0-5m/s.
